Page 77 - Williams GREEN Parts Catalog 16-9932

Item Part Number
1 A-16970-120V
a) 5850-13271-00
2 C-10843-BR
3 A-16828-1
4 A-16883-4
5 A-16384-1
6 (See Sect. 8)
7 A-9174-4
8 A-18249-1
9 A-16055
10 20-9663-11
11 A-14689
12 A-15361

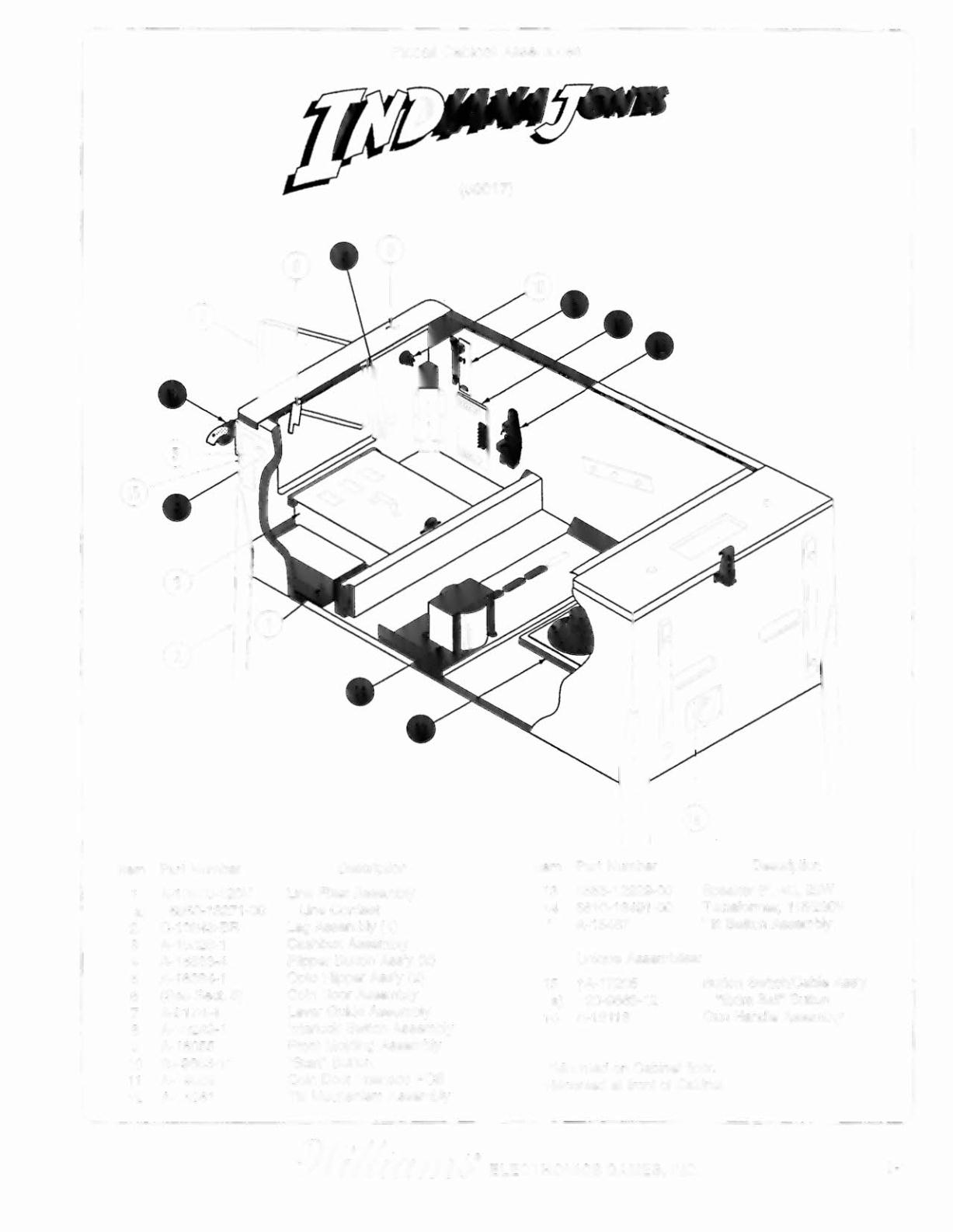

Pinball Cabinet Assemblies
(50017)
I
I
I
I
I @
Description
Line Filter Assembly
line Cordset
Leg Assembly (4)
Cashbox Assembly
Flipper Button Ass'y (2)
OPIOFlipper Ass'y (2)
Coin Door Assembly
Lever Guide Assembly
Interlock Switch Assembly
Front Molding Assembly
·Start" Button
Coin Door Interface PCB
Tilt Mechanism Assembly
Item Part Number
13 5555-12929-00
14 5610-13491-00
A·15487
Description
Speaker 6', 40, 25W
Transformer, 115/230V
lilt Switch Assembly
Unique Assemblies:
15 tA-17205 Button Switch/Cable Ass'y
a) 20-9663-12 'Extra Ball' Button
16 A-16113 Gun Handle Assembly
'Mounted on Cabinet floor.
tMounted at front of Cabinet
O)f~® ELECTRONICS GAMES, INC. 2-1
