NOTE: TWO SETS OF THESE PARTS ARE USED FOR HOLDING INSERT BOARD
WITHIN THE CABINET.
·8-32
TEENUT~,
01-3745
Insert Board
Latch Bracket

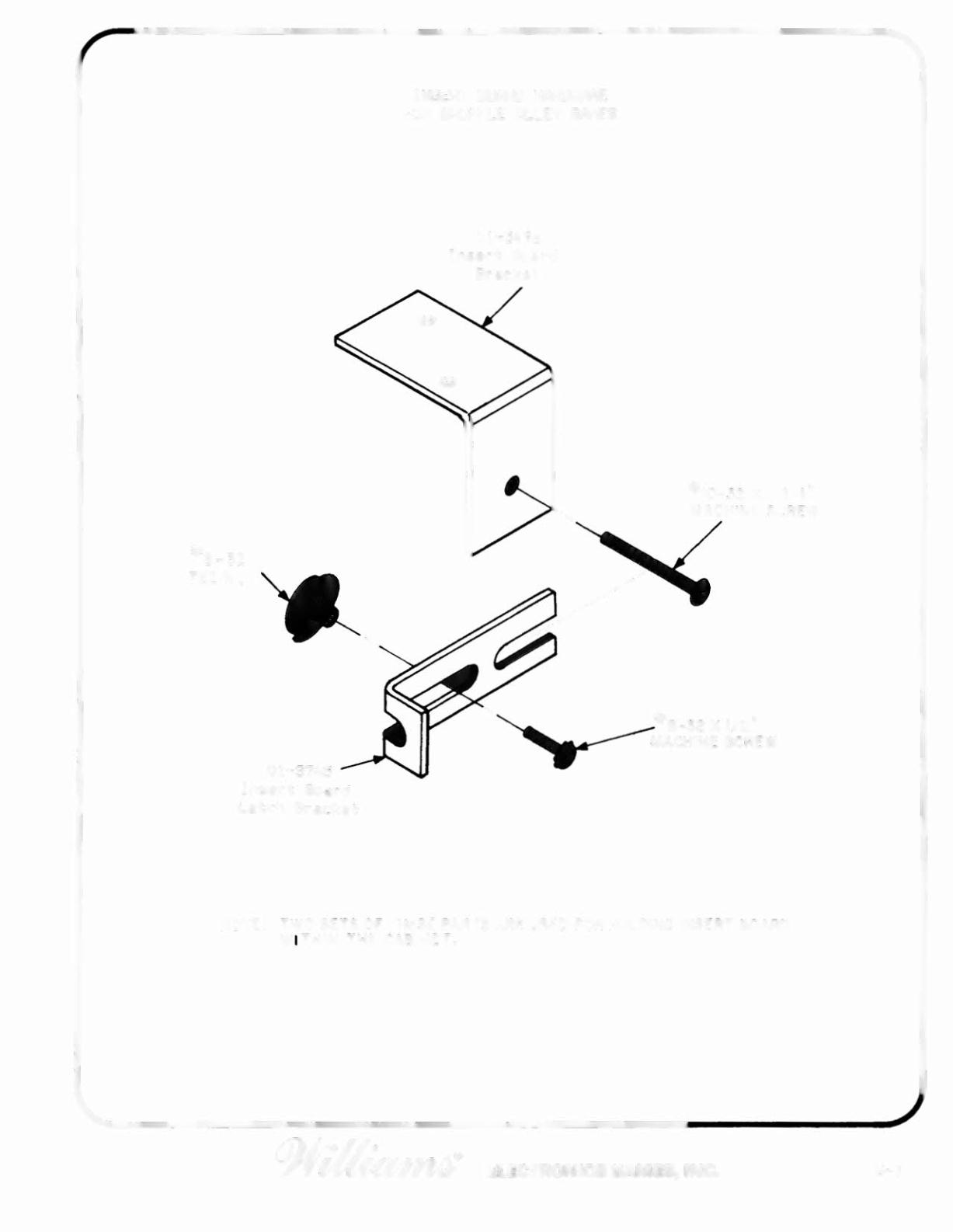

INSERT
BOARD HARDWARE
FOR SHUFFLE ALLEY GAMES
01-5496
Insert Board
Bracket
. '0 - 32X
1_1/4"
MACHINE SCREW
~
__ ------. .•.8-32 X 1/2"
~
MACHINE
SCREW
ELECTRONICS GAMES. INC.
8-7
