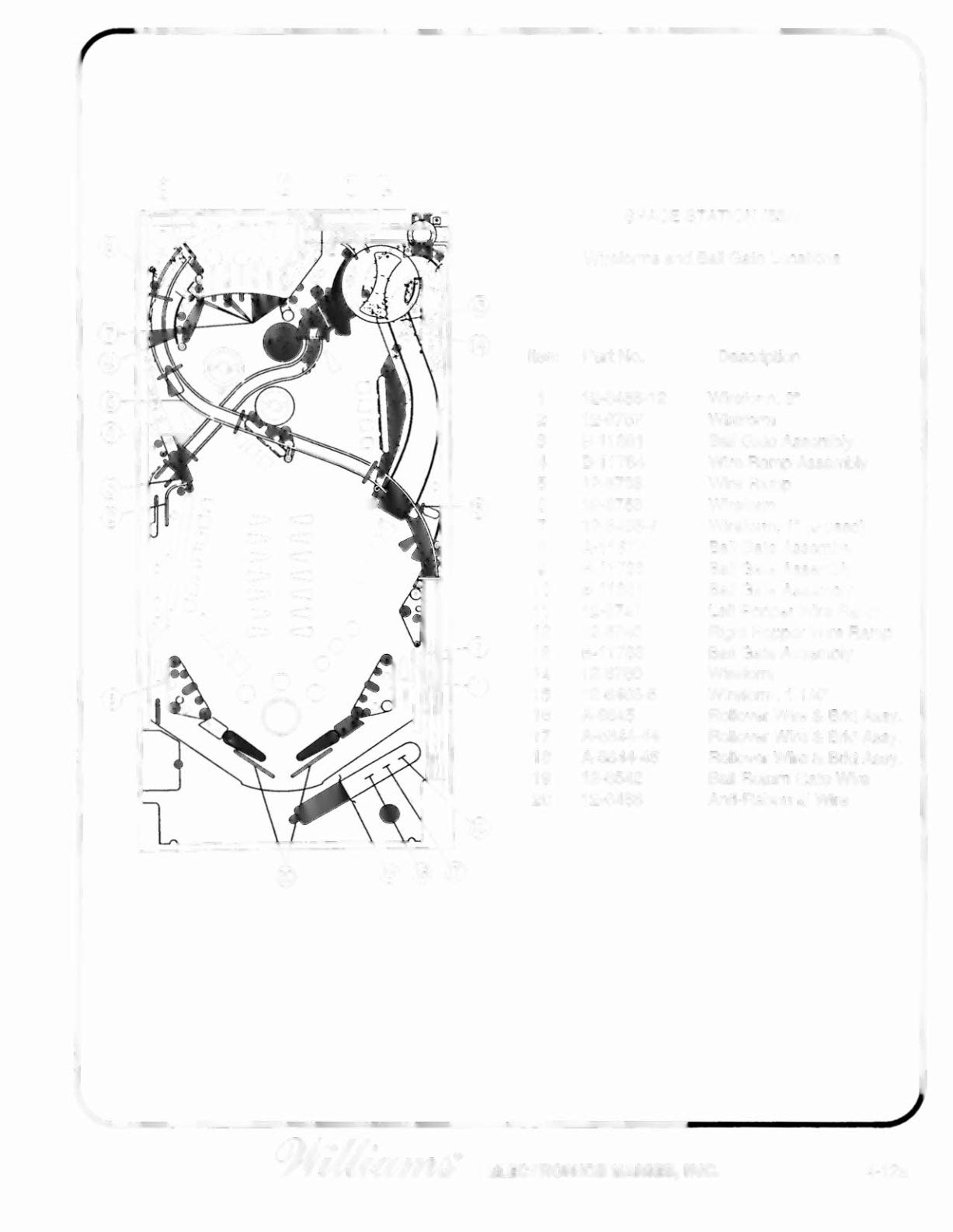

SPACE STATION (552)
Wireforms and Ball Gate Locations
Item Part No.
Description
1
12-6466-12
Wireform, 3"
2 12-6757
Wi reform
3 B-11861
Ball Gate Assembly
4 8-11764
Wire Ramp Assembly
5 12-6738
Wire Ramp
6 12-6758
Wi reform
(::::>
c::::J
7 12-6466-4
Wireform, 1" (9 used)
(::.::>
c: :J
8 A-11877
Ball Gate Assembly
(::::>
c::::J
9 B-11788
Ball Gate Assembly
C::>
c::::J
[.::::>
<:::::.J
10 8-11861
Ball Gate Assembly
c:::J
11
12-6741
Left Popper Wire Ramp
c: :J
0
12 12-6740
Right Popper Wire Ramp
13 B-11788
Ball Gate Assembly
14 12-6760
Wireform
15 12-6466-5
Wire form ,
1-1/4"
16 A-8645
Rollover Wire
&
Brkt Assy.
17 A-5844-44
Roliover Wire
&
Brkt Assy.
18 A-58~4-45
Rollover Wire
&
Brkt Assy.
19 12-6542
Ball Return Gate Wire
20 12-6468
Anti-Rebound Wire
ELECTRONICS GAMES. INC.
4-128
