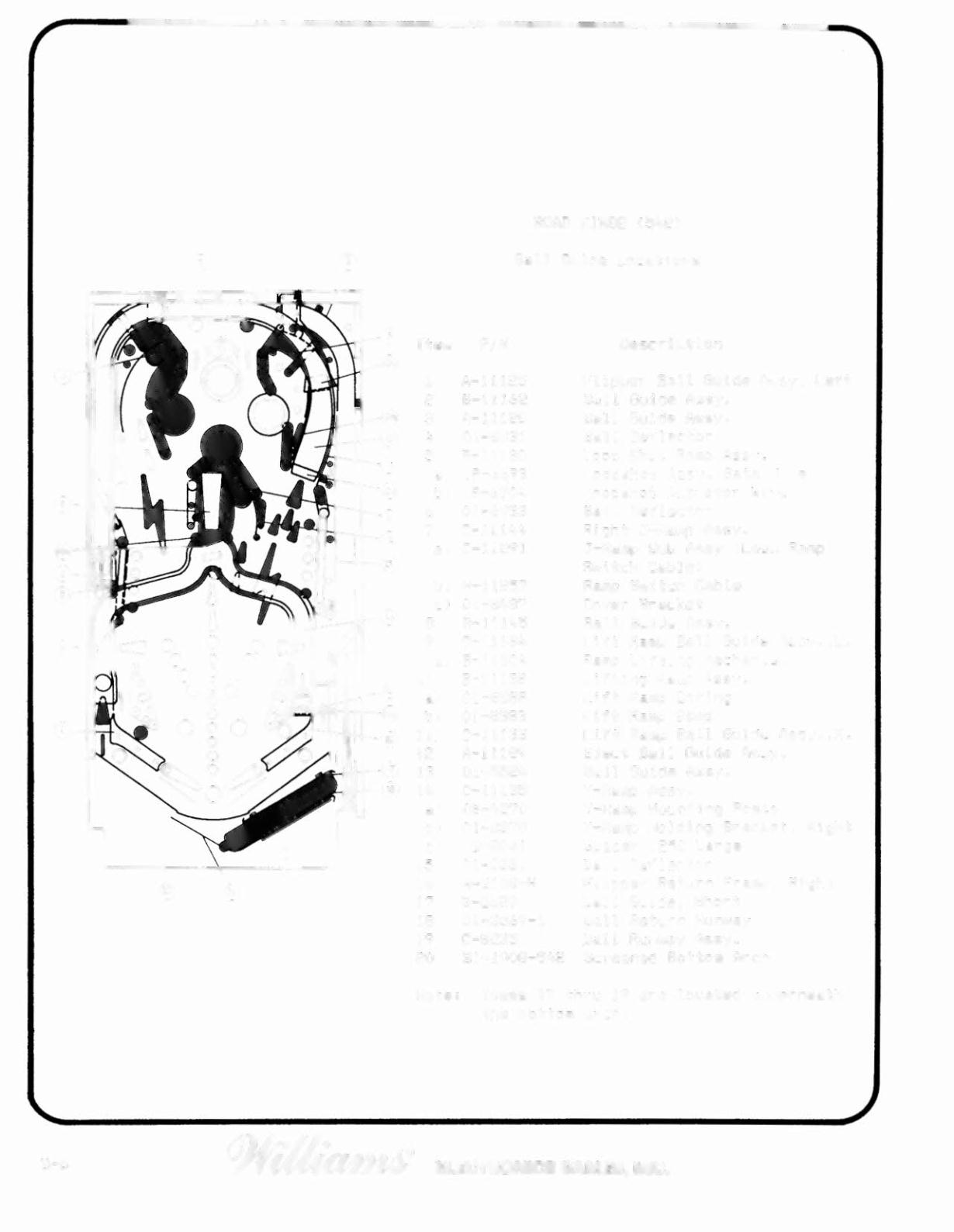

Ball Guide locations
ROAD KINGS (542)
Item
PIN
A~11125
2
B~11162
3 A~11128
4 01~8331
5 8~11130
a)
12~6693
b)
12-6704
6 01-6933
7 C-11144
a )
C-11291
bl
H-11257
c)
01-8437
8
R-11145
9 C-11134
a)
8-11304
10 8-11132
a)
01-8382
b)
01-8383
11 C-11133
12
A-11129
13 01-5524
14 C-11135
a)
02-4270
b) 01-8370
c)
03-8041
15
01-8331
16 A-8108-R
17 B~8623
18
01-3569-1
19
C~8235
20
31-1008-542
Description
Flipper Ball Guide Assy, Left
80.11 Guide Assy.
Ball Guide Assy.
Ball Deflector
Loop Shot Ramp Assy.
Loopshot Assy. Gate Wire
Loopshot Actuator Wire
Ball Deflector
Right J-Ramp Assy.
J-Ramp Sub Assy (Less Ramp
Switch Cable)
Ramp Switch Cable
Cover Bracket
Ball Guide Assy.
Lift Ramp Ball Guide Assy.,L.
Ramp Lifting Mechanism
Lifting Ramp Assy.
Lift Ramp Spring
Lift Ramp Step
Lift Ramp Ball Guide Assy.,R.
Eject Ball Guide Assy.
Ball Guide Assy.
Y-Ramp Assy.
Y-Ramp Mounting Posts
V-Ramp Holding Bracket, Right
Spacer .250 Large
Ball Deflector
Flipper Return Frame, Right
80.11 Guide, Short
Ball Return Runway
80.11 Runway Assy.
Screened Bottom Arch
Note: Items 17 thru 19 are located underneath
the bottom arch.
