Page 23 - 1966_WMS_WILLIAMS_ASPIRE

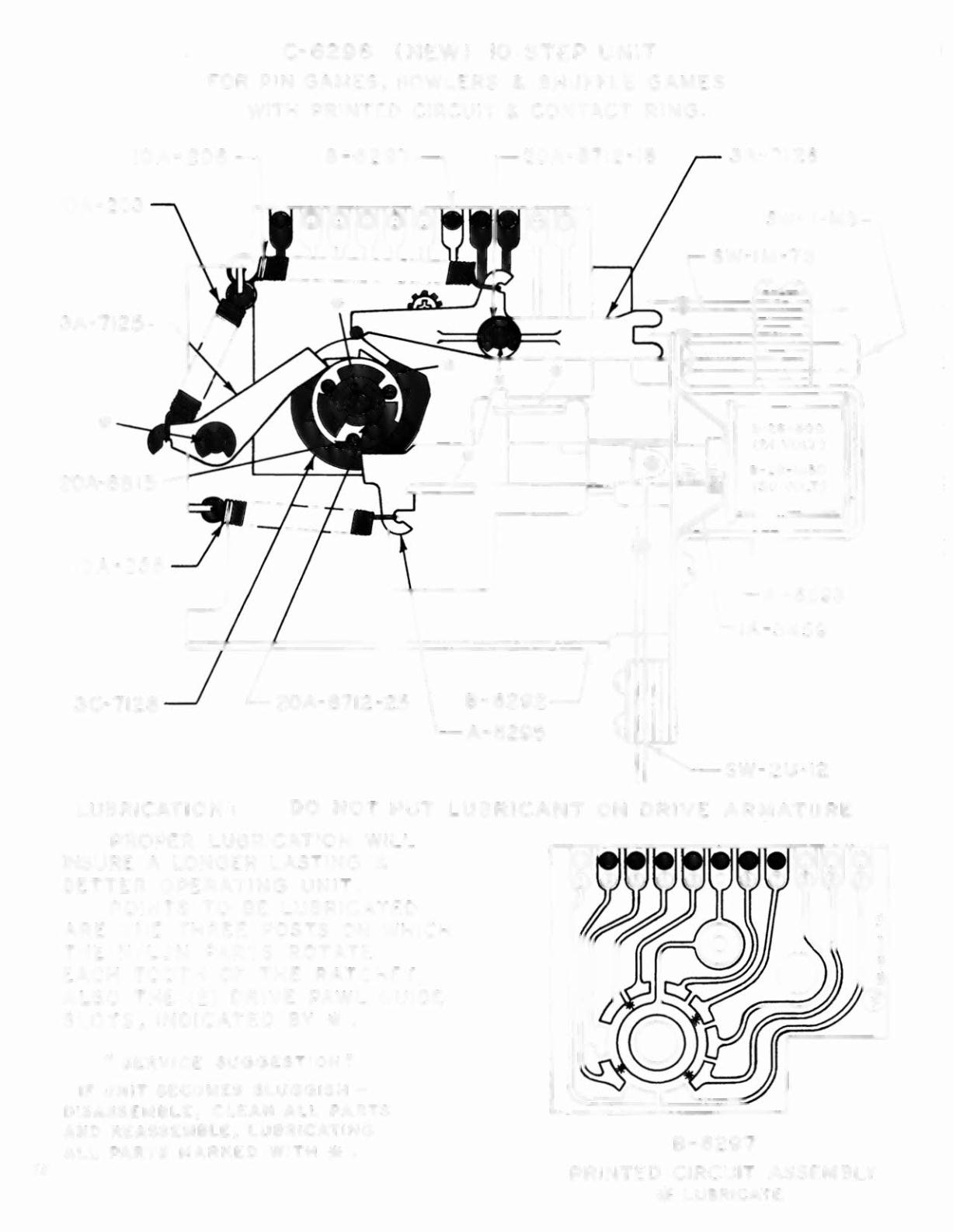

c- 6296 (NEW) 10 STEP UNIT
FOR PIN GAMES. BOWLERS & SHUFFLE GAMES
WITH PRINTED CIRCUIT & CONTACT RING.
20A"8712-18
* 8 -26 ·800
(24 VOLT)
8-28-1450
(50 vOLT)
IA"3459
20A-8712-25 8-6292
LUBRICATION:
SW-2U-12
DO NOT PUT LUBRICANT ON DRIVE ARMATURE
PROPER LUBRICATION WILL
INSURE A LONGER LASTING &
BETTER OPERATING UNIT.
POINTS TO BE LUBRICATED
ARE THE THREE POSTS ON WHICH
THE NYLON PARTS ROTATE,
EACH TOOTH OF THE RATCHET,
ALSO THE (2) DRIVE PAWL GUIDE
SLOTS, INDICATED BY * .
" S E R VIC E S UG G EST ION '~
IF UNIT BECOMES SLUGGISH-
DISASSEMBLE. CLEAN ALL PARTS
AND REASSEMBLE, LUBRICATING
ALL PARTS MARKED WITH * .
15
8-6291
PRINTED CIRCUIT ASSEMBLY* LUBRICATE
