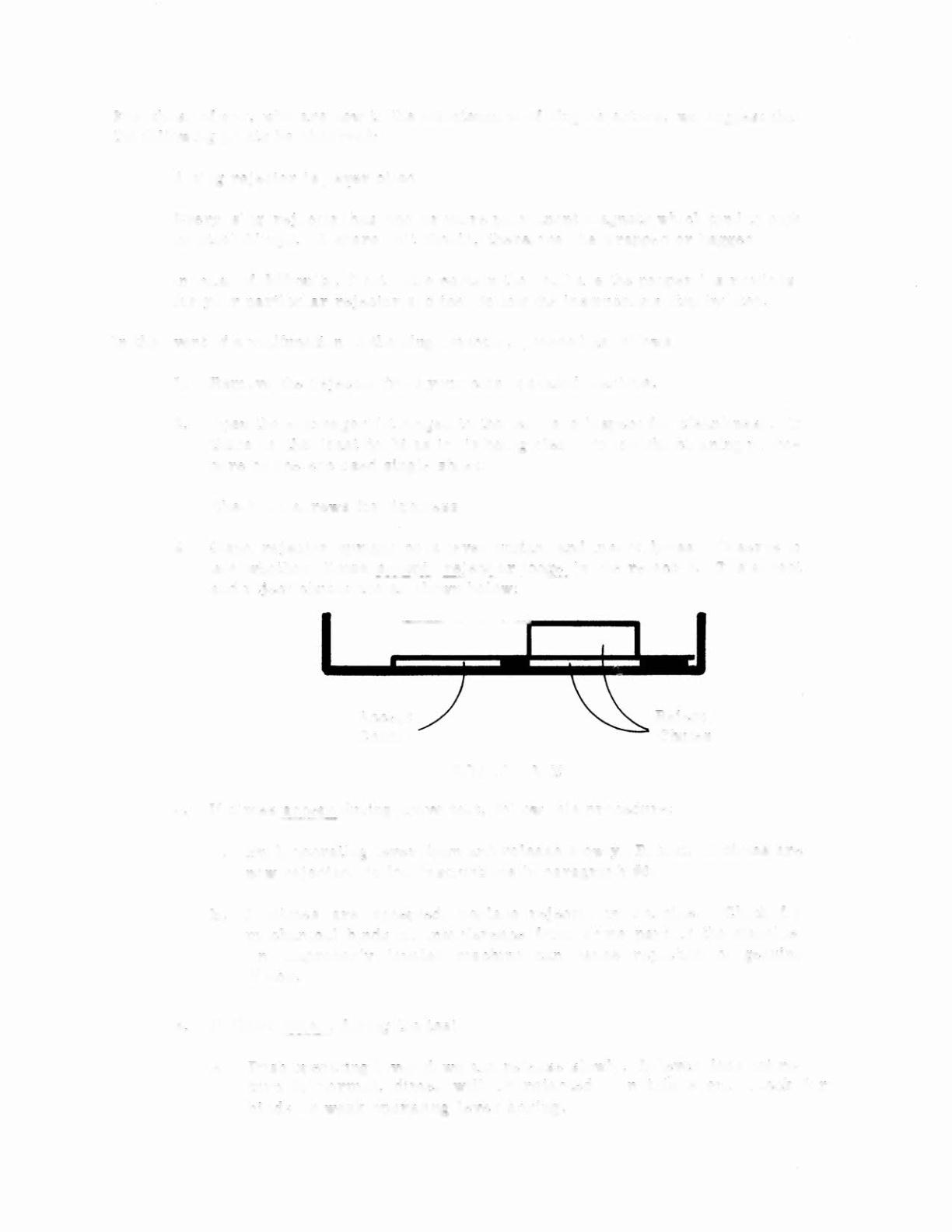

For those of you , who are new to the ma intenance of slug rejectors, we suggest that
the following points be observed:
A slug rejector is ~ oiled.
Every slug rejector has one or more permanent magnets which tend to pick
up steel filings. A spare unit should, therefore, be wrapped or bagged.
In case of diff iculty, first make certain the you have the proper instructions
for your particular rejector and then follow the instructions step by step.
In the event of a malfunction of the slug rejector, proceed as follows:
1. Remove the rejector from your coin operated machine.
2. Open the sea veuger (it hinges to the left) and inspect for cleanliness. If
there is the least doubt as to its being clean, follow the cleaning proce-
dure on the enclosed single sheet.
3. Check all screws for tightness.
4. Stand rejector upright on a level surface and insert dimes. Observe to
see whether dimes accept , reject or ~ in the rejector. The accept
and reject chutes are as shown below:
Accept
Chute
BOTTOM VIEW
5. If dimes accept during above test, fol low this procedure:
A. Push operating lever down and release slow ly. Retest. If dimes are
now reject ed, follow instructions in paragraph #6.
B. If dimes are accepted, replace rejector in machine. Check for
mechanical binds or interference from some part of the machine.
An improperly leveled mach ine can cause rejection of genuine
dimes.
6. If dimes reject during the test:
A. Push operating lever down and release slowly. If lever does not re-
turn to normal, dimes will be rejected. In this event, check for
binds or weak operating lever spring.
