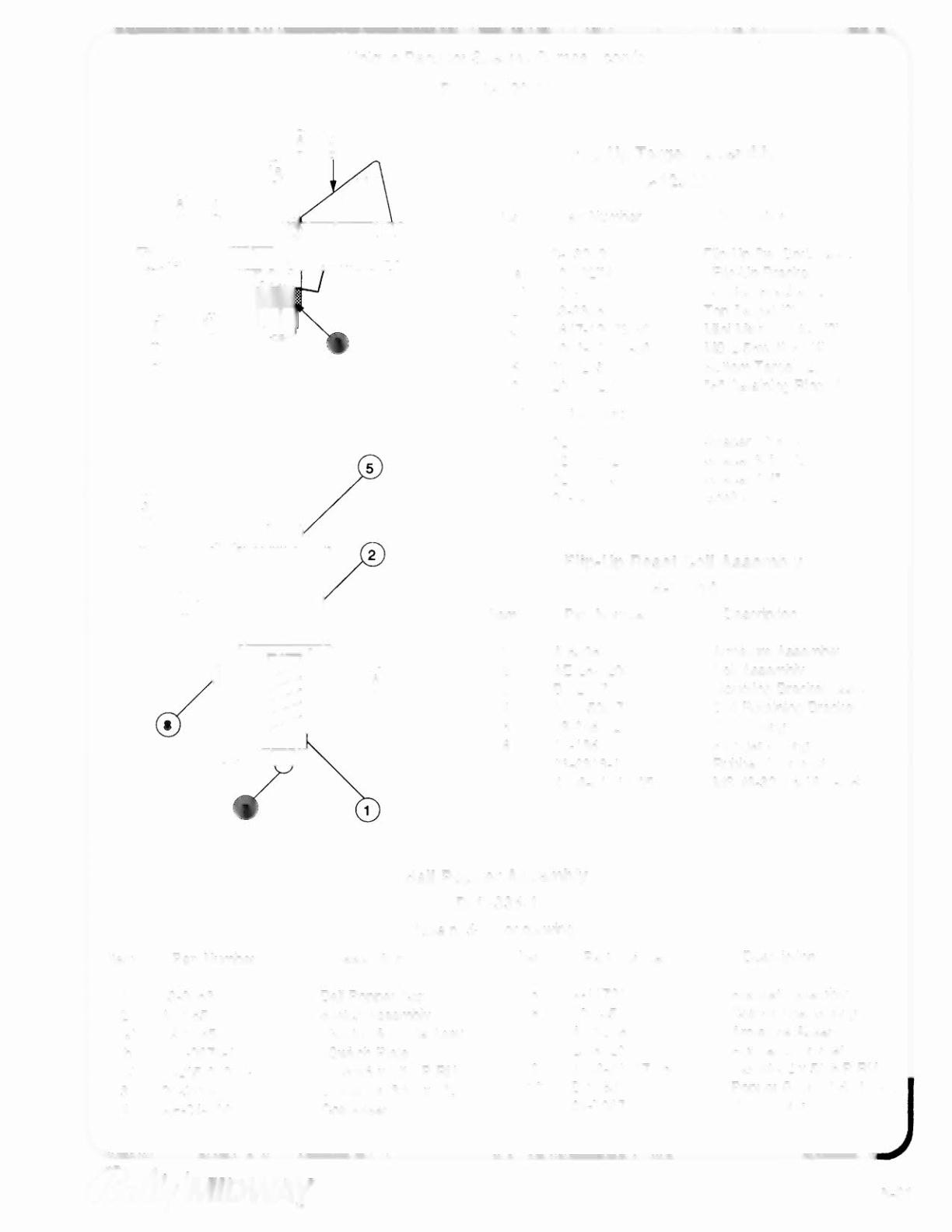

Page 495 - BallyMidway YELLOW Parts Catalog 16-9147-B

Unique Parts for Specific Games - cont'd
ELVIRA (2011)
Flip-Up Target Assembly
C>12922
Item Part Number Description
1 C-13203 Flip-Up Sw. Brk!. Assy.
a) 01-9274 Flip-Up Bracket
b) 01-8774 Switch Bracket (2)
2 03-8305 Top Target (2)
3 5647-12073-30 Mini-Micro Switch (2)
4 4002-01005-06 MS 2-56x3/8 P (4)
S 01-9275 Bottom Target (2)
6 20-6712-14 "E" Retaining Ring (4)
Not shown:
02-4411-1 Spacer 1/16" (3)
02-4411-2 Spacer 3/16" (3)
02-4411-3 Spacer 1/4"
02-4388 Shaft3" (2)
3
Flip-Up Reset Coil Assembly
8-12916
4 Item
2
Part Number Description
A-630S-1
AE-2S-1200
B-12917
01-8-50B-T
03-7067-2
10-135
23-6313-1
4008-01017-05
Armature Assembly
Coil Assembly
Mounting Bracket Assy.
Coil Retaining Bracket
Coil Tubing
Plunger Spring
Rubber Grommet
MS #8-32 x 5/16 P-RH
1
2
3
4
5
S
7
8
7 1
Ball Popper Assembly
0-11335-1
(See p. 5-46 for drawing)
Item Part Number Description Item Part Number
1 03-8053 Ball Popper Cap 5 A-11721
2 A-116S7 Switch Assembly 6 10-135
a) A-11658 Switch & Diode Assy. 7 A-11336
b) 01-3670-1 Switch Plate 8 23-6420
c) 4205-01016-14 WS #5-x 7/18 P-RH 9 4008-01017-05
3 20-9314-7 Dowel Pin 3132x 112 10 8-11631
4 AE-24-900 Coil Assembly 11 03-7067
Description
Bracket Assembly
Coil Plunger Spring
Armature Assembly
Rubber Grommet
MS #8-32 x 5/16 P-RH
Popper Support Brkt Asy.
Coil Tubing
@af!tt/MIDWAY 5-61
