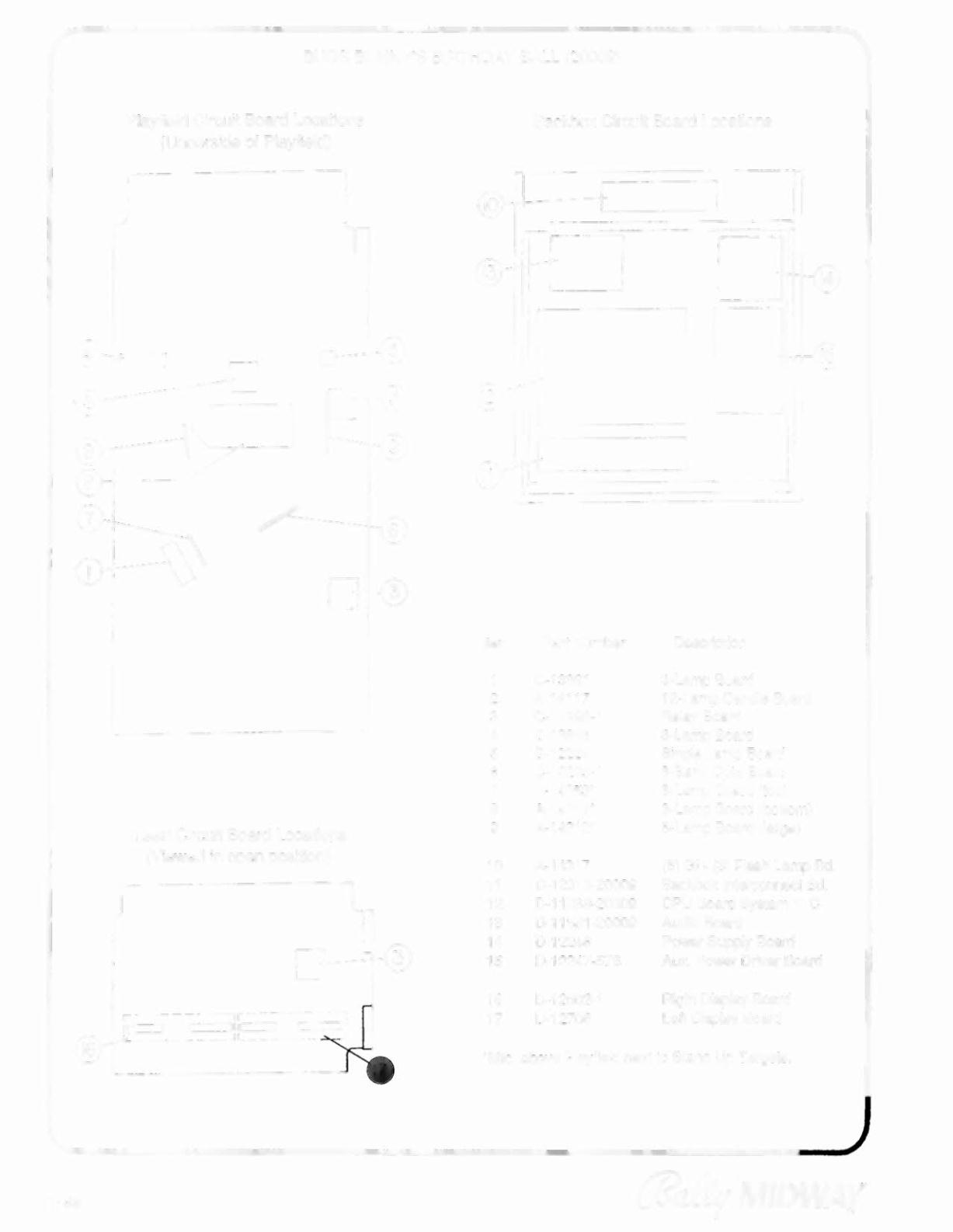

BUGS BUNNY'S BIRTHDAY BALL (20009)
Playfield Circuit Board Locations
(Underside of Playfield)
Backbox Circuit Board Locations
10
1
L
®-
-
-®
-
k@
®-
®-
+
Item Part Number
Description
1 C-13361
3-Lamp Board
2 A-14117
12-Lamp Candle Board
3 C-11998-1
Relay Board
4 C-13855
3-Lamp Board
5 B-12224
Single Lamp Board
6 C-13205-1
3-Bank Opto Board
7
A-14253*
3-Lamp Board (top)
8
A-14211*
3-Lamp Beare (bottom)
Insert Circuit Board Locations
9 A-14212*
5-Lamp Board (large)
(Viewed in open position)
10 A-14317
(6) GI - (3) Flash Lamp Bd.
11 0-12313-20009 Backbox Interconnect Bd.
12 0-11883-20009 CPU Board System 11C
13 0-11581-20009 Audio Board
14 0-12246
Power Supply Board
15 0-12247-576
Aux. Power Driver Board
16 D-12502-1
Right Display Board
17 0-12706
Left Display Board
'MId. above Playfield next to Stand-Up Targets.
