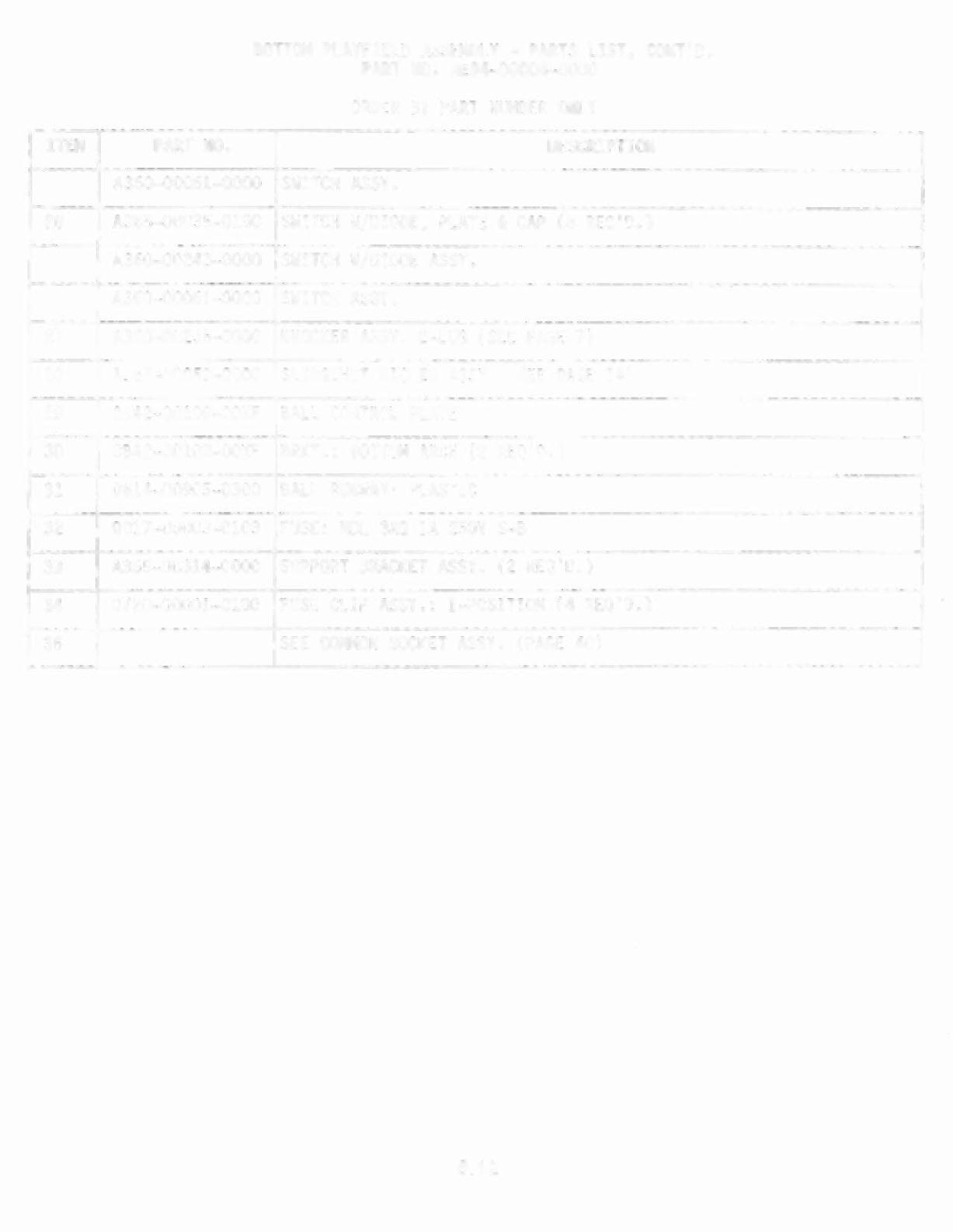

BOTTOM PLAYFIElD ASSEMBLY - PARTS LIST, CONT1D.PART NO. AE94-00004-0000
ORDER BY PART NUMBER ONLY
ITEM PART NO. DESCRIPTION
A360-00061-0000 SWITCH ASSY.
26 A365-00035-0100 SWITCH W/DIODE, PLATE & CAP (8 REQ'D.)
A"360-00243-0000 SWITCH W/DIOOE ASSY.
A360-00061-0000 SWITCH ASSY ..
27 A360-00235-0000 KNOCKER ASSY. 2-LUG (SEE PAGE 7)
28 A967-00059-0000 SLINGSHOT KICKER ASSY. (SEE PAGE 14)
29 OB42-00l00-00XF BALL CONTROL PLATE
30 OB42-00102-00XF BRKT.: BOTTOM ARCH (2 REQ'D.)
31 0614-00905-0300 BALL RUNWAY: PLASTIC
32 0017-00003-0103 FUSE: MDL 3AG 1A 250V S-B-
33 A365-00314-0000 SUPPORT BRACKET ASSY. (2 REQ'D. )
34 0720-00001-0100 FUSE CLIP ASSY.: 1-POSITION (4 REQ'O.)
35 SEE COMMON SOCKET ASSY. (PAGE 40) ___,
6.12
