FLIPPER ASSEMBLY - SINGLE SWITCH RIGHT
PART NO.
AC70-00022-O
1
00

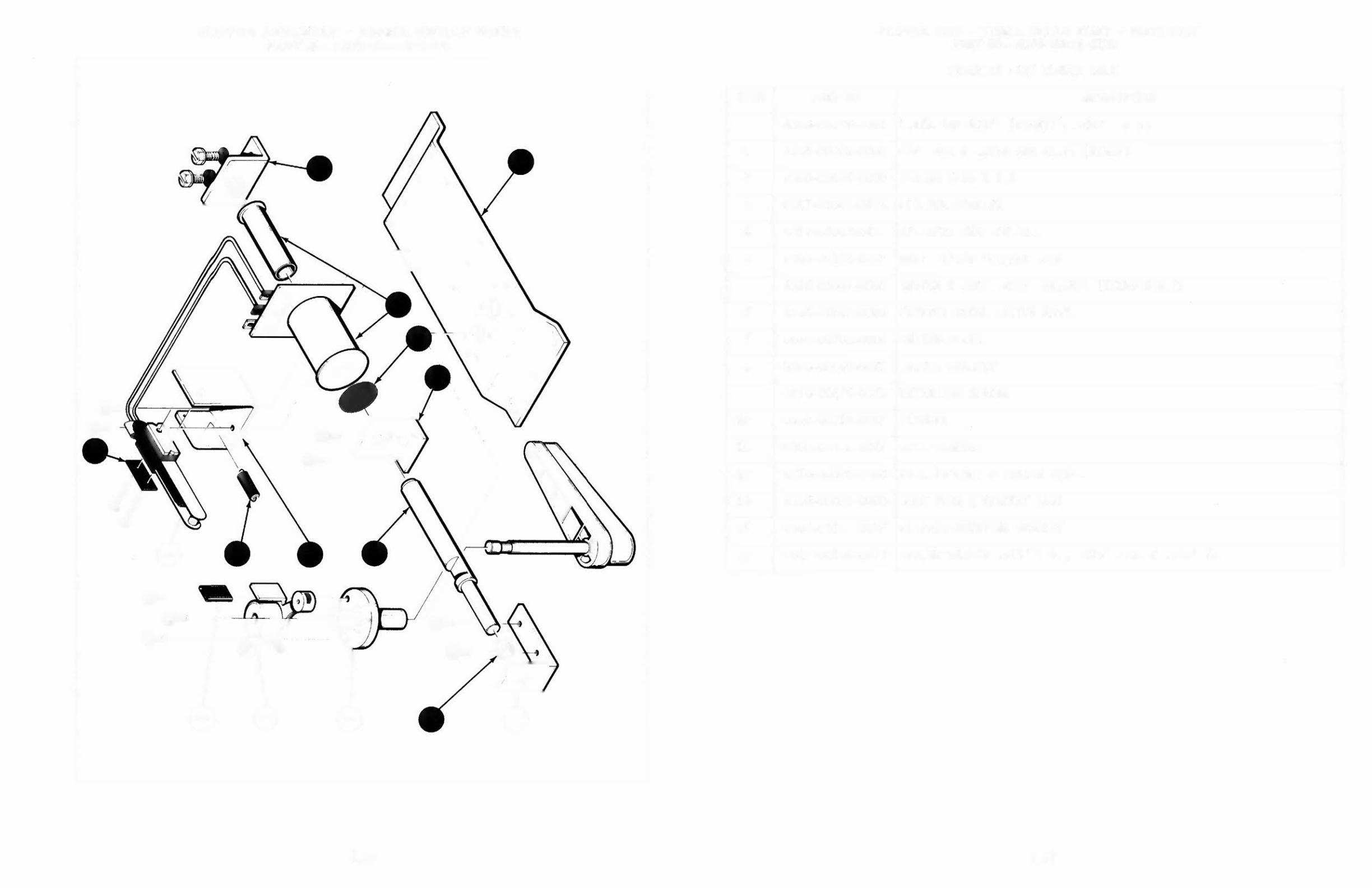

FLIPPER ASSY - SINGLE SWITCH RIGHT - PARTS LIST
PART NO. AC70-00022-0100
ORDER BY PART NUMBER ONLY
ITEM
PART NO.
DESCRIPTION
-
A360-00039-0000 LEVER ARM ASSY. (RIGHT) (ITEMS 1
&
2)
1
A365-00001-0000 CAP, HUN
&
LEVER ARM ASSY. (RIGHT)
2
0360-00945-0000 TUBING 5/16 X 1/2
3
0017-00042 ..•0413 FLIPPER BEARING
4
0017-00042-0418 NYLINER: SNAP-IN COIL
5
0360-001S2-02XF
BRKT: RIGHT FLIP ER STOP
A365-00047-0000 SWITCH
&
BRKT. ASSY. (RIGHT) (ITEMS 6
&
7)
6
A365-00045-0000 FLIPPER BREAK SWITCH ASSY.
7
0020-00202- 000
SWITCH PLATE
8
0360-00145-00XF SWITCH BRACKET
9
0010-00275-0353 EXTENSION SPRING
10
0360-00718-00XF PLUNGER
11
0360-00318 .•00XF COIL BRACKET
12
AC70-00026-0000 COIL (3 LUG)
&
TUBING ASSY.
14
A365-00024-0000 CORE PLUG
&
BRACKET ASSY.
15
0365-00101- 0XF
FLIPPER MOUNTING BRACKET
16
0017-00104-0073 SPRING WASHER .515" 1.0., .875" 0.0.
&
.013" TH.
1.36
1.37
