RUBBER PARTS
Dimensions
are
inside diameters.
Numbers
in
parentheses
indicate quantity used,
if
in
excess of
one.
A. R·243
5/16" Dia.
( 11)
8. R·52l
3/4" Dla.
(2)
C. R-521-l
1" Dia ..
(4)
D. R-521-.2
1-1/2" Dia.
(4)
E. R-521·3
2"
Dia.
(2)
F, R-533·3
Flipper
(2)
G. R·206-t 1 Post
(8)

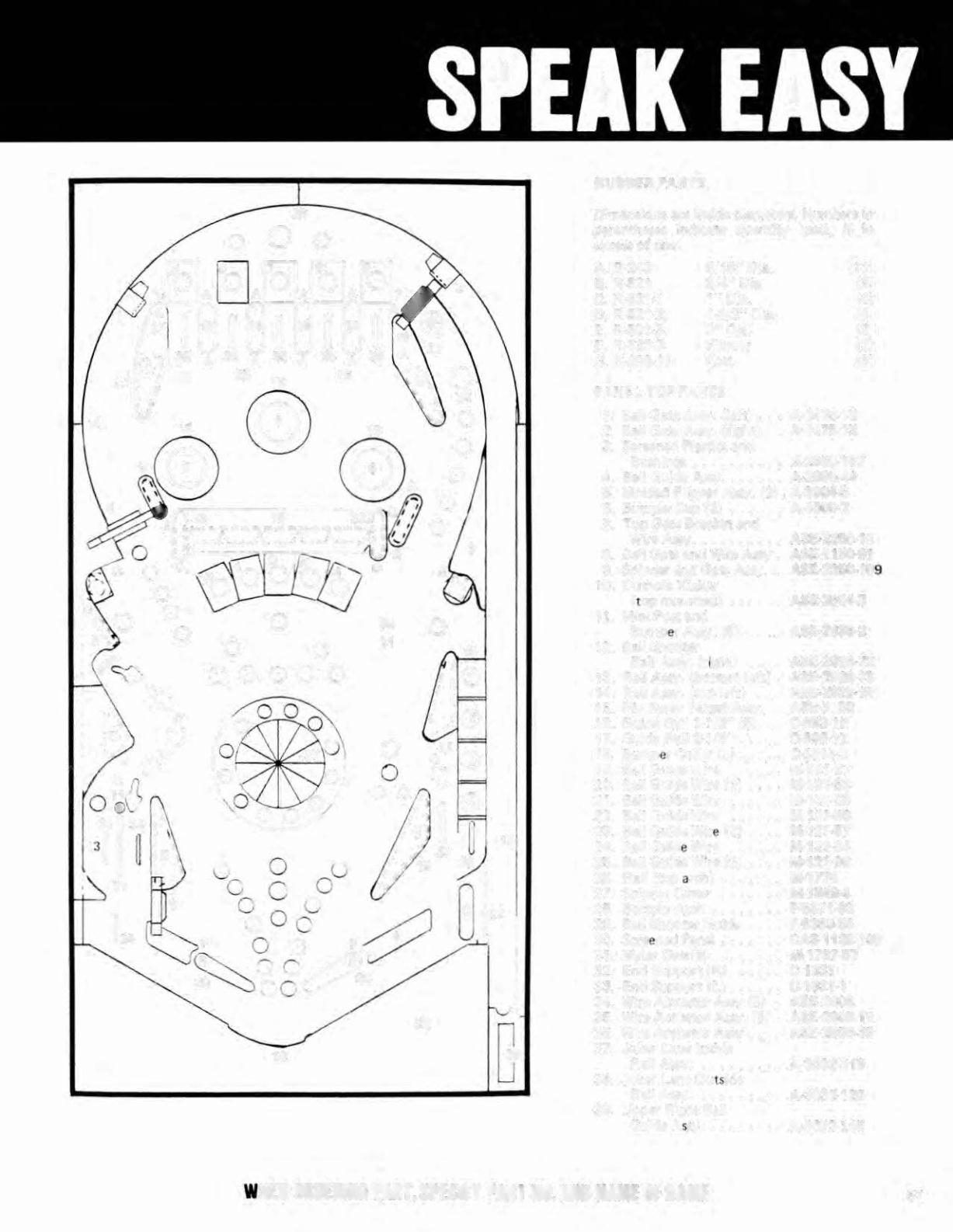

PANEL TOP
PARTS
1.
Bali Gate Assy. (left)
A-1475-12
2.
Ball Gate Assy.
(l'ight)
A-1475-13
3.
Screened Plastics and
Bushings
....
-
. .. . .
A·2a90·167
4.
Ball GUide Assy ......
, A,·2898-44
5. Molded Flipper Assy, (2) . A·3994·5
6.
Bumper Cap (3)
~
. .
~
. .
A-4009-7
7, Top Gate Bracket and
Wire Assy ......
, .. , ASE 2250-11
8.
Ball Gate ana Wire Assy , ASE-1150-91
9.
Spinner and Gate Assy.
A.5E-2250·109
10.
Outhole Kicker
(top mounted)
-
.
ASE-2694·3
11.
Mini Post and
Bumper Assy. (6)
ASE·2836·2
12, Ball Shooter
Hal] Assy. (((gtn)
ASE·2926·12
13, Rail Assy, (bottom left) . ASE-2926· 73
14. Rail
Assy.
(top le11)
. . .
ASE·2926-74
15, Fly Away Target
Assy.
ASE·3155
16. Guide Rail 1-1/2"
{51
C·693·12
17.
Guide Rail 2-1/8" _ ...
C·696·12
18.
Bumper Collar (3) ...
,
C·l018·3
19, Ball Guide Wire
~
. . .
.
.
M·121-27
20.
Ball GUide Wire (2)
• I f '
M·121-53
21, Ball Guide Wire
~
. . .
M·121,56
22. Ball GUIde Wire
, • _ r , •
M·121-65
12
23. 8all Guide Wire (2)
-
~
,
~
M·121·67
24.
8all GUide Wire
•••
+ • ,
•
M·121·84
25, Ball Guide Wire (2)
..
-
..
M·121-98
26, Rail (top arch)
· ... .... .
,
M·1774
27.
Spinner Cover
·
.
-
..
,
M·1949·4
28.
Bottom Arch
-
-
~ -
-
•
1 •
P·5871·93
29.
Ball Shooter GUide
~
.
.
.
p·635 9-56
30. Screened Panel ' .•...
, CAS·' 128-196
31.
Mylar Overlay
· ... .. ..
M-1787·57
32.
End Support (R)
,
.. .
~'031
J3,
End Support (L) .. - - .. C·1031·1
34.
Wire Actuator
Assy
(31 ASE·2806
28
35.
Wire Actuator
Assy.
(5)
ASE·2806-10
36.
Wire Actuator Assy ....
ASE-2a06-39
37. Joker Lane
lnstde
R\:Iil
A~sy.
-
11 T • -
1- ••
A·3032·119
38.
Joker Lane Outside
Rail Assy.
....
,
A-3032·120
39 . Upper Right Ball
Guide Assy.
l • • ~ • • • _
A·3032·116
WHEN ORDERING
PART. SPECIFY
PART NO. AND NAME OF GAME
57
