Page 48 - Bally 1971 Parts Catalog

TRIP RELAYS, MOTORIZED
Coil & Switch Assys.
Effedive with ON BEAMand later games*, game to game variations in Coil
and Switch Assys., Motorized Trip Relay (excepting switching components), are
described on this page.
Effective with BOWl-O and later games* switching components are also
listed-from Motor end and from top to bottom of related Relay.
If part number of variable component not listed on this page is not known,
order by name with reference to (a) name of game, (B) location, as described in
preceding paragraph.
ON BEAM JOUST
As illustrated, page 53, with
Coil (15 used) E-184-156
Latch Plate Assy.
(ILLUSTRATED BELOW)
(12 used) A-261-13
(1 used) A-261-17
(2 used) . . . . . . . . . . . .. A-261-18
Switch & Bracket Assy.
Bracket & Stud Assv . . . .. A-3120-28
Switching components
SEE THIRD PARAGRAPH,
INSTRUCTIONS
IN BOX ABOVE

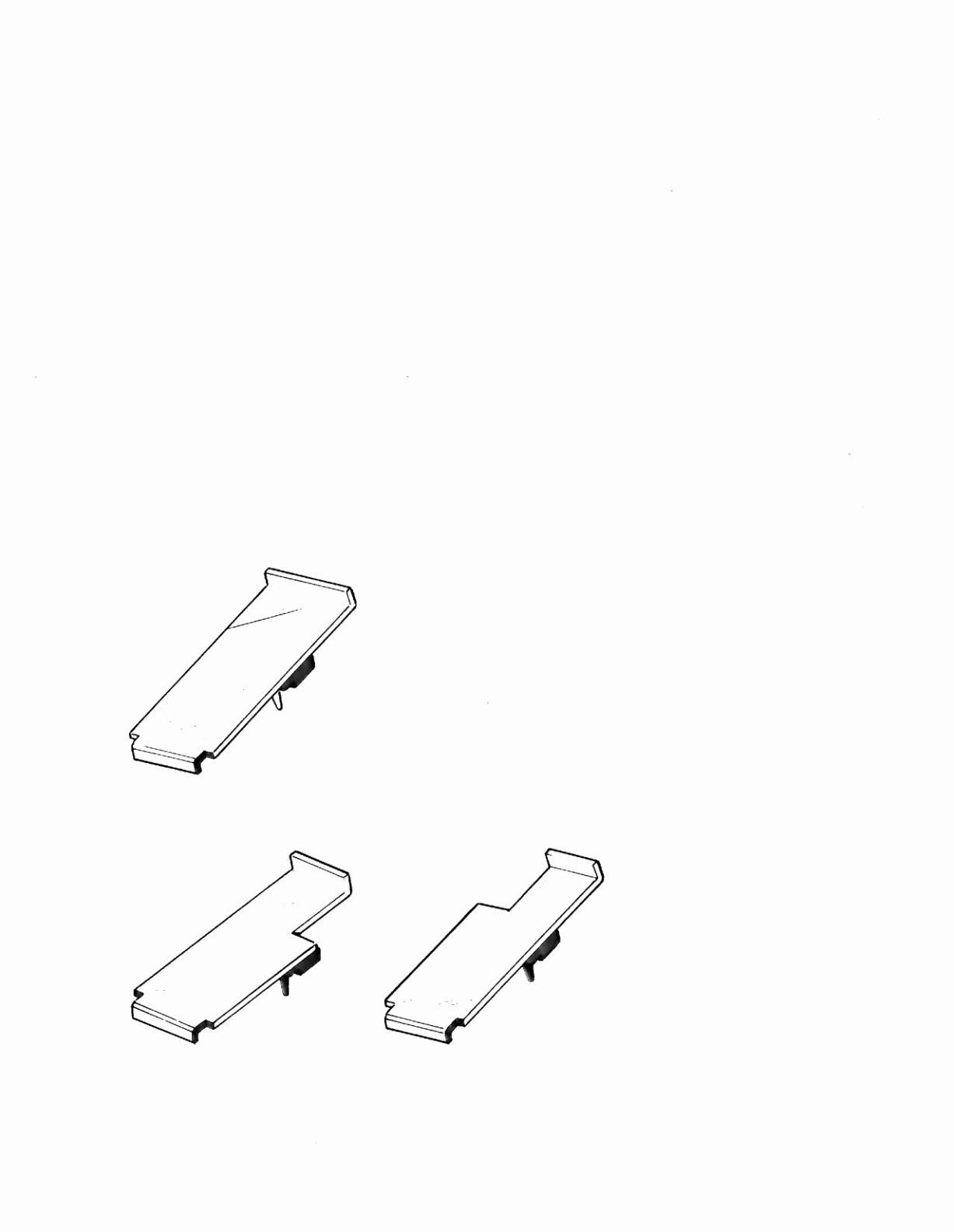

LATCH PLATE ASSY_
A-261-13
LATCH PLATE ASSY.
A-261-15
As illustrated, page 53, with
Coil
First 9, Motor end _ E-184-155
Remaining 5 .. _ E-184-156
Latch Plate Assy.
(ILLUSTRATED BELOW)
(13 used) A-261-13
(1 used) A-261-15
Switch & Bracket Assy.
Bracket & Stud Assy . .. A-3120-27
Switching Components
SEE THIRD PARAGRAPH,
INSTRUCTIONS
IN BOX ABOVE
BOWL·O
As illustrated, page 53, with
Coil (14 used) ... _ ... __ . E-184-156
Latch Plate Assy.
(ILLUSTRATED BELOW)
(13 used) _.. A-261-13
(1 used) A-261-17
(1 used) _. . . . . . . . . . .. A-261-18
Switch & Bracket Assy.
Bracket & Stud Assy ... A-3120-30
Switching components
LISTED IN NEXT COLUMN
FROM TOP TO BOTTOM
OF RELATED RELAYS
LATCH PLA TE ASSY
A-261-17
BOWL·O
Switching components
Spring, Switch Stack
SEE PAGE 97
Switch Actuator
SEE PAGE 98
Switch Plate (Spring)
(16 used) P-137-5
NO.1 RELAY
Screw (2 used) _. MS-540-28-110
Switch,
Top 2 ASW-B-1
Bottom _ _.. ASW-B-20
NO.2 THROUGH NO. 10 RELAYS
Same as NO.1 RE LA Y
CAM NO.1
MS-540-14-110
SW-l00-546
Screw (2 used)
Cam Follower
CLUTCH
Screw (2 used) MS-540-22-110
Switch,
Top - _ .. ASW-100-18
Bottom .. _.. __ . . . . .. ASW-B-20
BALL PLAYED
Screw (2 used) MS-540-28-110
Switch,
Top _. .. ASW-B-1
Middle _ __ . . . . . .. ASW B-3
Bottom _ __ _ ASW-B-20
GAME OVER
Screw (2 used) _ _ MS-540-40-110
Switch,
Top 2 . _ __ . __ . . .. ASW-B-3
Next below _ .. _. ASW-B-2
Next below. _.. _... _. ASW-010-18
Bottom _.. __ . __ .. __ . ASW-B-20
START
Screw (2 used) . .. __ . MS-540-40-110
Switch,
Top 3 _ " ASW-B-1
Next below .. . . . . . . .. ASW-B-10
Bottom .. __ .. _. . . . .. ASW-B-20
CAM NO.2
Screw (2 used) . __ .. _. .. MS-540-20-1 10
Cam Follower SW-120-56
TRAIL DRIVE
As illustrated, page 53, with
Coil (12 used) _ E-1B4-156
Latch Plate Assy.
(ILLUSTRATED AT LEFT)
(11 used) .. _ A-261-13
(1 used) A-261-17
Switch & Bracket Assy.
Bracket & Stud Assy . .. A-3120-2
Switching components
LISTED ON NEXT PAGE
CONTINUED
ON
NEXT PAGE
LATCH PLATE ASSY.
A-261-18
Same as A-261-15 but
clearance notch in the
Nyi"on Stop extends to
one end of piece.
* See chronological list of games, page 6.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
S4
