Page 122 - Bally 1971 Parts Catalog

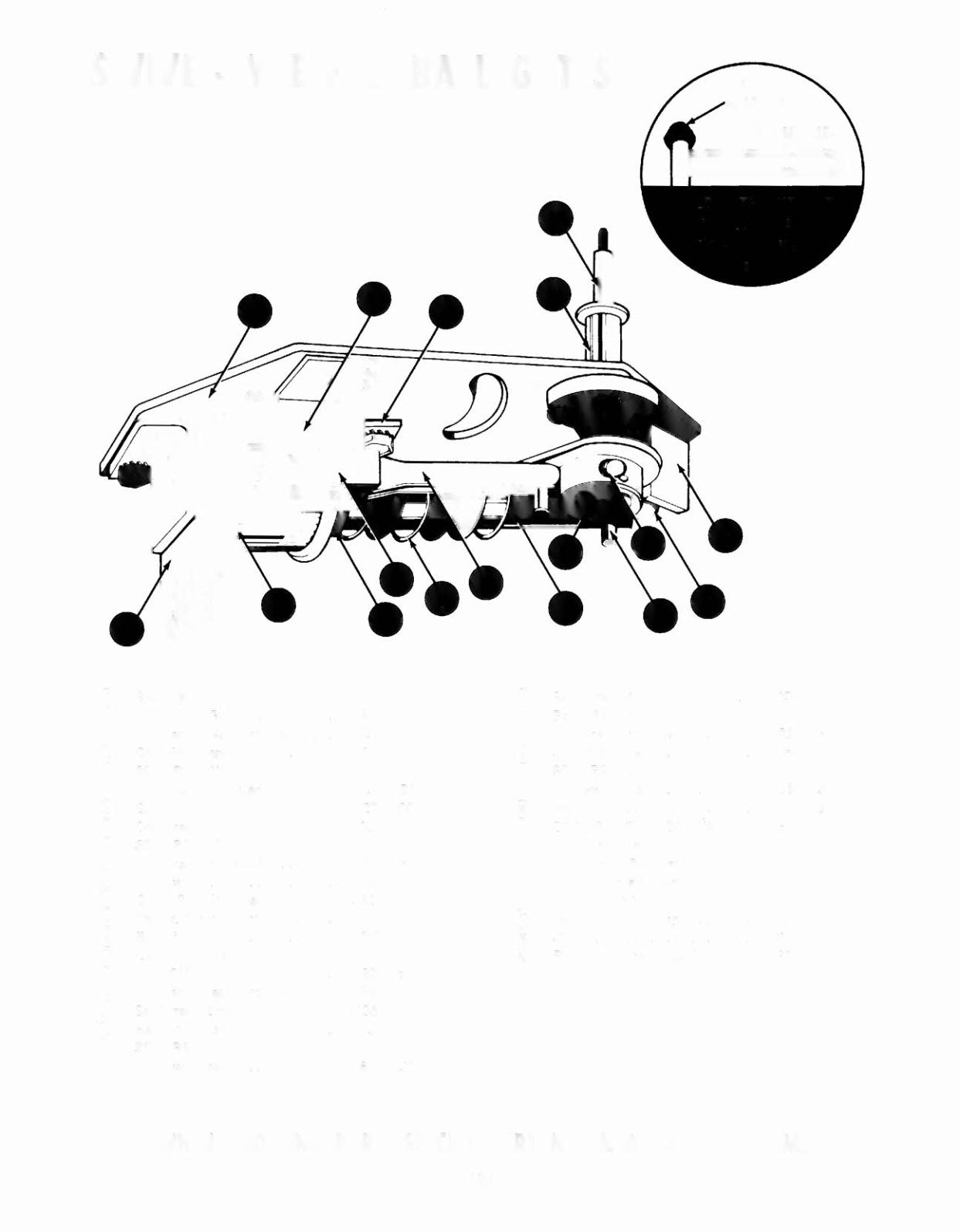

SWIVEL-TYPE FREE-BALL GATES
CD Base Plate,
THE WIGGLER P-3691-20
Other games, next page P-3691-18
CD Core Plug Assy A·613-67
SECURED BY
Lockscrew (2 used) LS-832-5·810
CD Coil AF-27-1000/32-1300
CD Coil Bracket P-l08-53
SECURED BY
Lockscrew (2 used) LS-832-5-810
CD Plu nger . . . . . . . . . . . . . . . . . . . S-496-167
CD Guide Ring (not visible) C·342
CD Spring, Compression SP·240-2
@ Roll Pin P-1637·1
® Lever Arm Assy.,
DOGIES A-1889-15
Other games, next page A-1889-8
@ Set Screw (2 used) " M·1369
® Bearing, Nylon " C-649
SECURED BY
Screw (3 used) " LS-632·5-510
® Stop Bracket P-6256
SECURED BY
Lockscrew (2 used) LS-832·5-810
® Switch Bracket " P-126-559
SECURED BY
Screw (2 used) LS-632-3-511
® Switch SEE PAGE 146A
ORDER SWITCH SCREW BY NAME
With reference to
(a) Free Ball Gate,
(b) Name of game,
(c] Switch
® Switch Plate (Springl P-137-5
® Shaft S-907-5
® Retaining Ring (2 used) P-6316-5
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
194
