Page 130 - Bally 1969 Parts Catalog

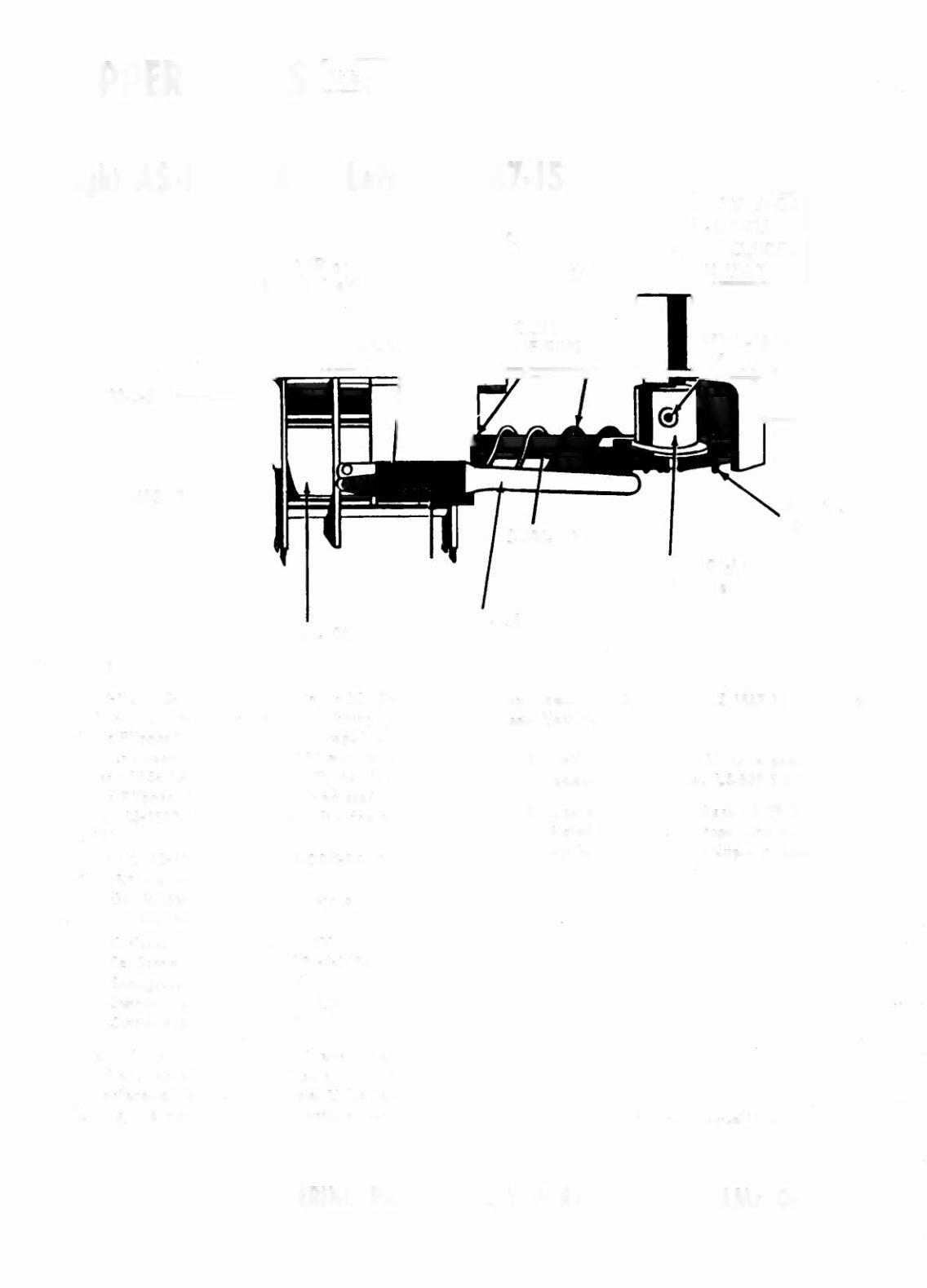

FLIPPER UNITS I SEE NOTE A I
Right AS-1587·14 Leh AS-1587·15
A-1888-9 (Right)
1..-1888-10 (Left)
MS-540-7-110
1..-613-67
E-184-190
HOlE A
AS-15B7-14, As-l587-15, used in HOOTENANNY
through BIG DAY·, are not available, being replaced
by Super Flipper Units illustrated on page 138 .
Parts enclosed in box on page 138 may be ordered
for repa ir of AS-1587-14, AS-1587-15. Or the advantages
of Super Flipper Units may be incorporated into AS-
1587-14, AS-1587-l5 with Special Kits described on
page 138.
AS-1587-9. AS-1587-10, used in MOON-SHOT through
,HN-LINP are not available.
Only the following parts for repair of AS-1587-9.
AS-1587-10 arc available.
COil •••••••••••••••• _E-I84-190
Set-Screw ••••••••••• SS-!4-28-4-1104
Spring •••••••••••• _•• SP-240
Switch. _•••••••••••• SW-O10-138
Switch-Plate •••••••• P-137-5
Repair of AS-1587'9, AS-1587-10 which cannot be
effected with above parts should be effected by com-
plete replacement with Super Flipper Units (page 108).
which may be purchased with or without Switch SW-
010-138.
P-l08-53
NYLON WASHER
P-801-485
NOT INCLUDED
IN UNIT
SP-240
P-6256
A-1889-4 (Right)
1..-1889-5 (Left)
SW-010-138
Replacement of AS·I587-9, AS-I587-10 with Super
Flipper Unit Requires
(A) Drilling of clearance holes in panel to ac-
comodate Lockscrews LS-832-5-810;
(8) Use of Flipper Arm Any. A-2747-1, illus-
trated on page 138,Flipper Arm Any. A-2147
not being adaptable to Super Flipper Units.
*Se. chronological lis' of gam.s, page 7.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
137
