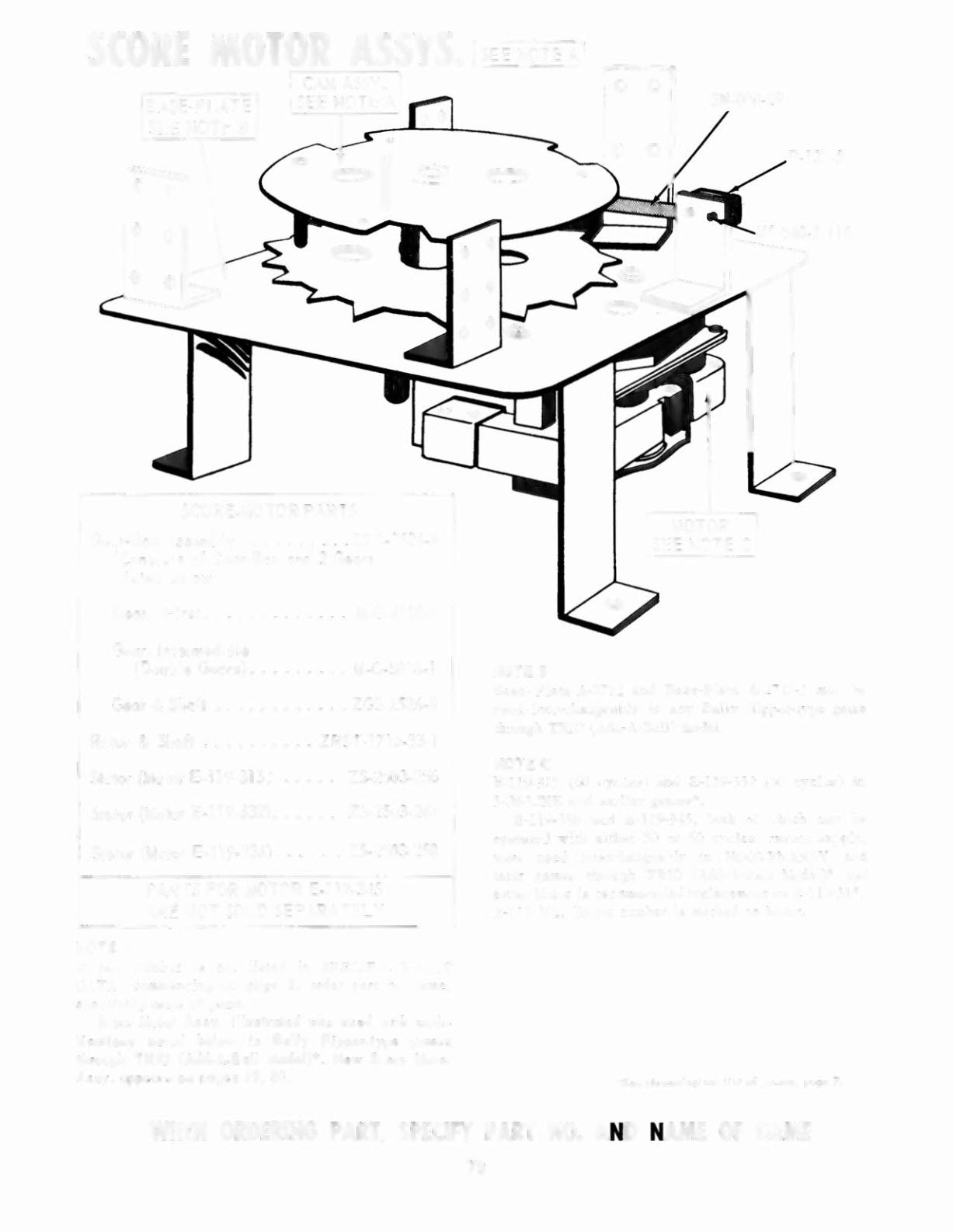

SCORE MOTOR ASSYS.I SEE NOTE AI
CAM ASSY.
SEE NOTE A
e
() 0
e
SCORE-MOTOR PARTS
Gecr- Box Assembl y ••••••••.. ZGB·2526·8
(Consists of Gear·Box and 3 Gears
listed below)
Gear, First. .......•.... M·G·4109·1
Gear, Intermediate
(Double Gears) ...•..... M·G-5818-1
Gear & Shaft ZGS·2526-8
Rotor & Shaft ..•....•.. ZRST-1715-33·1
Stator (Motor E·119·315) •.. " ZS- 2503·256
Stator (Motor E·1l9·332) .... " ZS·2503·261
Stator (Motor E·119-336) ••.... ZS-2503·258
PARTS FOR MOTOR E·1l9·345
ARE NOT SOLD SEPARA TEL Y
NOTE A
If part numbe r is not listed in SPECIFIC PARTS
DATA, commencing on page 8, order parr by name,
speci fying name of game.
Scor~ Motor Assy . illustrat~d was us~d with modi .
fications not~d b~low in Bolly fl ipp~r .typ~ 90m~s
through TRIO (Add-A-Bol l Model)*. New Score Motor
Any. appears on pages 79, 80.
() C
MOTOR
SEE NOTE C
NOTE B
Base -Plate A-2722 and Base -Place A-2722-1 may be
used inrerchangea bly in any Bally flipper-t ype game
through TRIO (Add-A-Ball) mode l.
NOTE C
E-119-315 (60 cycle s) and £-119-332 (50 cycle s) In
3-IN-LINE and earlier garnes ".
£-119-336 and £-119-345, both of which may be
operated with either 50 or 60 cycles current supply,
were used interchangeably in HOOTENANNY and
later games throug h TRIO (Add-A -Ball Model)- and
either Motor is recomme nded replacemen t for E-119- 315,
E-119-332 . (Motor number is marked on Moror.)
• S••e ch ronol ogica l lis t 01 go •• ••e s , pag •• 7.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
