Lower Playfield Parts
Item Part
No.
Description
1.
01-9211
Plfd. Hanger Bracket (2)
2.
01-11781
Leg Support (2)
3.
A-18753
Outhole Ball Trough Assy.
4.
A-15849-R-2 Flipper Assembly, Right
5.
A-17711
2-Lamp G.I. PCB (6)
6.
A-17910
t-Larnp PCB (6)
7.
A-17811
Kicker Arm Slingshot, Right
B-9362-R-3 Coil & Bracket Assembly
8.
A-17712
2-Lamp G.I. PCB (3)
9.
B-9361-R-5 Ball Eject Assy., Righ
(2)t
B-9362-L-2
Coil & Bracket Assembly
10.
A-18213
Ball Popper Assembly
11.
A-17713
3-Lamp G.I. PCB (3)
12.
A-17569
Motor Assembly
13.
A-17749.1-2 Plfd. Slide Mech. Assy., R.
14.
A-9415-2
Jet Bumper Coil Assy. (3)
15.
A-17796
Ball Gate Actuator Assy.
16.
A-18067
4-Lamp PCB
17.
A-18138
Diverter Assembly
18.
A-17749.1-1 Plfd. Slide Mech. Assy., L.
19.
A-17908
Ball Eject Assembly
B-9362-R-3 Coil & Bracket Assembly
20.
A-15542
Motor EMI PCB Assy.
21,
A-16120
D.C. Motor Control Assy.
22.
A-18155
Up/Down Post Unit Assy.
23.
A-17811
Kicker Arm Slingshot, Left
B-9362-L-2
Coil & Bracket Assembly
24.
A-18071
3-Lamp PCB
25.
A-15849-L-2 Flipper Assembly, Left
26.
A-17839
Goalie Ball Popper Assy.
27.
A-17741
Goalie Unit Assembly
28.
A-18072
5-Lamp & 1 Flasher PCB
29.
A-18068
21-Lamp PCB
30.
A-18069
5-Lamp PCB
31.
A-15576
7-Switch Opto PCB
32.
A-15257
Bracket & Pole Piece
33.
A-18159
10-Switch Opto PCB

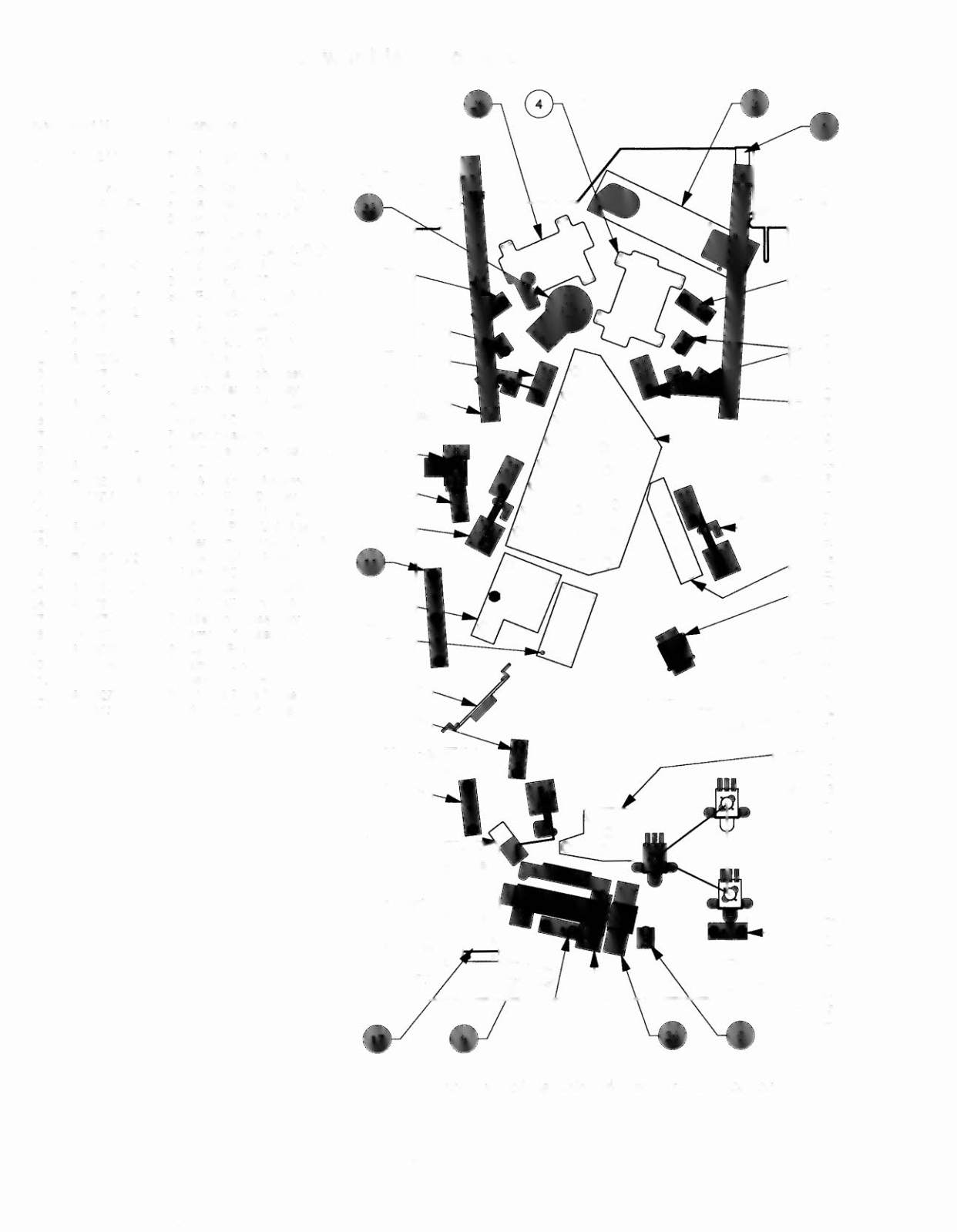

Underside of p/ayfie/d, viewed in raised position
