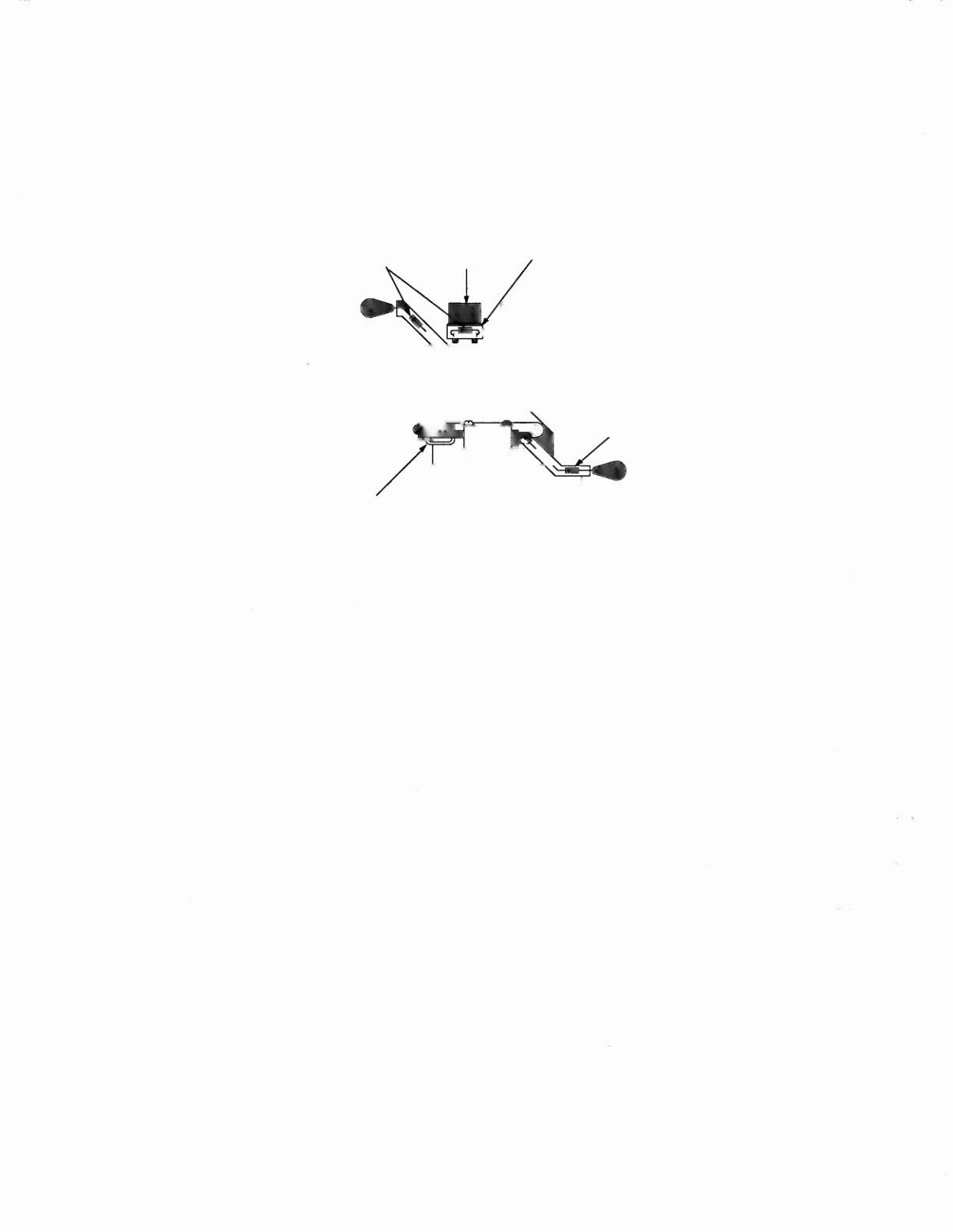

8all Troug h Switches
(Viewed from underside of playfield to show locations)
A-5844-44
Sw. Wire & Bracket
5647-09957-00
Microswitch
Tubing
B-8925
Ball Trough Switch Plate Assy.
5070-09054-00 01-8652
5647-12693-08
5647-09957-00
Microswitch
J-----A-8645
Sw. Wire
&
Bracket
A-8924
Mounting Plate
8-12912 Standup Target
A-14604 Standup Target
o
o
B-12912-10
Standup Target Assy.- Blue (5)
A-14604-11
Standup Target Assy.- Green (2)
B-12912-23
Standup Target Assy.- Red (3)
A-14604-12
Standup Target Assy. - Orange (1)
B-12912-24
Standup Target Assy.- White (2)
WHITE WATER 2-32
