50044-CAB-1

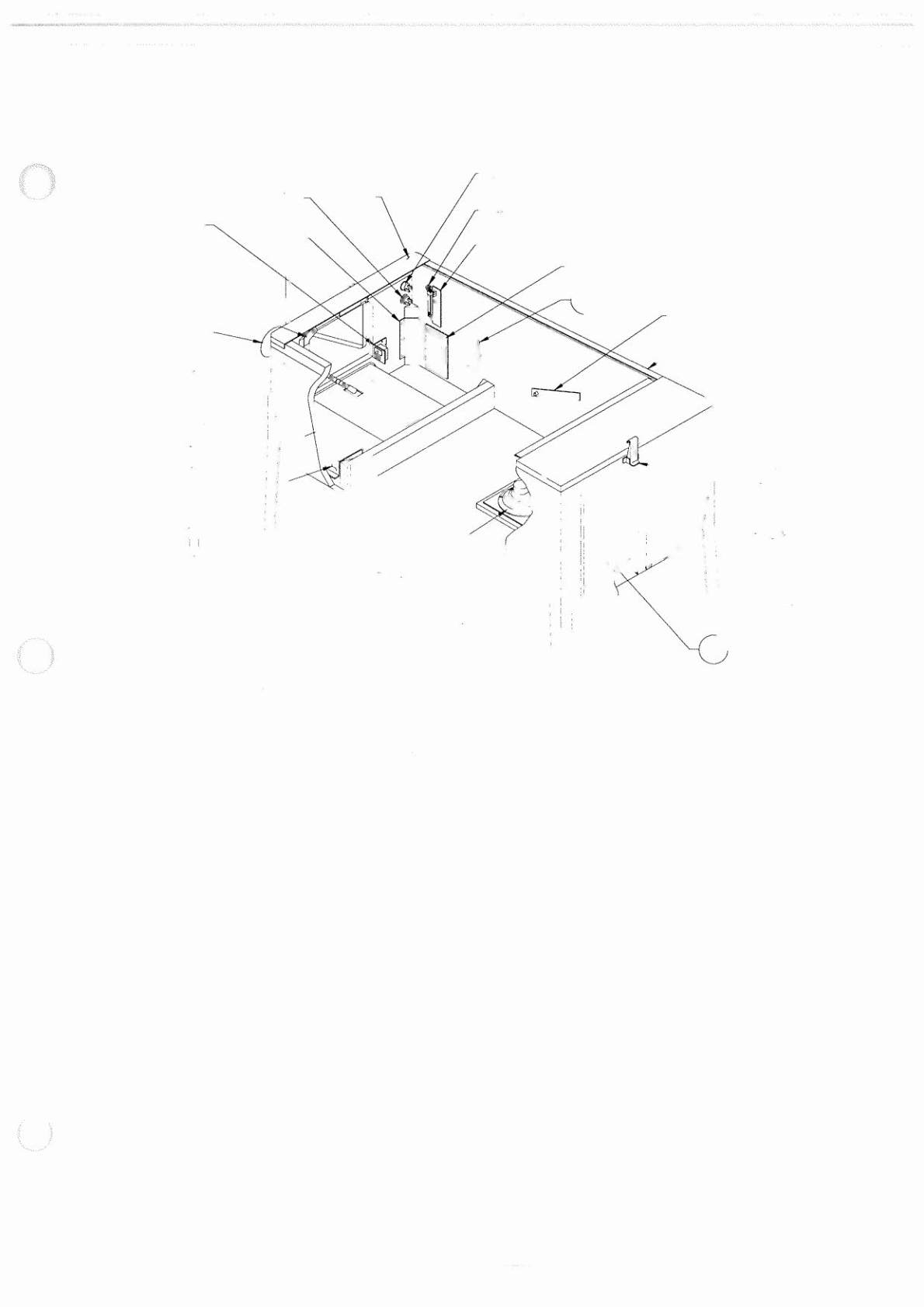

Cabinet Assembly
@)
Item Part Number
Description
1 A-16773-1
Lever Guide Assembly
2 B-12445-7
Ball Shooter Assembly
3 20-9663-18
Push Button
w/Sw., Extra Ball
(Org)
4 A-16883-4
Flipper Button, Red (2)
5 A-18531-1
4-Ball Cashbox Assembly
6 A-17540-1
Univ. Power Interface Assy.
7 5610-14515-00
WPC Transformer
8 5555-12929-00
Speaker, 4n, 6", 25w
9 20-9347
Toggle Latch
10 A-17051-1
Coin Door Interface Board
11 A-19514
Leg Assembly, Chrome (4)
12 0-12615
Front Molding Assembly
13 20-6502-A
Plum Bob
14 A-15361
Tilt Mechanism Assembly
15
Cordset
16 A-17316
Opto Flipper Assembly (2)
17 01-10714
Line Cord Cover
18 A-12359-3
Side Molding Assembly (2)
19 11-1303
Wood Cabinet
20 20-9663-1
Push Button
w/Sw., Start
(Clear)
21 01-11400
Leg Plate (4)
22 A-18249-1
Cable & Interlock Switch Assy.
23 09-61000-1
Coin Door-USA
24 01-13936
Drip Plate
25 01-11408
Plate Spacer (2)
26 02-4329-1
Pivot Nut,
7/8" (4)
27 02-4352
Pivot Bushing (2)
2-3
Miscellaneous Parts
Part Number
A-17195
A-19562.1
01-12352
01-9011.1-L
01-9011.1-R
01-6389-1
08-7028-T
08-7377
20-6500
01-3535
Cabinet Cables
A-20201
H-17217
H-17837-2
H-19524
H-19601-1
H-20593
Description
Tilt Switch Assy. wlCable
Stay Arm Assembly
Clip Bracket
Backbox Mtg. Bracket, Left
Backbox Mtg. Bracket, Right
Cashbox Lock Bracket
Playfield Glass
Leg Leveler Adjuster, 3"
Steel Ball,
1-1/16" (4)
Rod Mounting Plate
Cable & Jumper Assy., Coin Door
Plumb/Bob Mech. Protect Cable
Voltage Program Jumper Cable
Cabinet Cable
Power Extension Cable
Cabinet Switch/Lamp Cable
*
See Application Chart p.2-36.
