REEL ASSEMBLY
1. Lift the playfield to its raised position (leaning against the backbox).
2. Disconnect the three cable from the reel assembly.
3. Remove eight
%"
hex-head screws holding the base to the playfield.
4. Remove assembly and repair as needed.
5. Reassemble in reverse order.

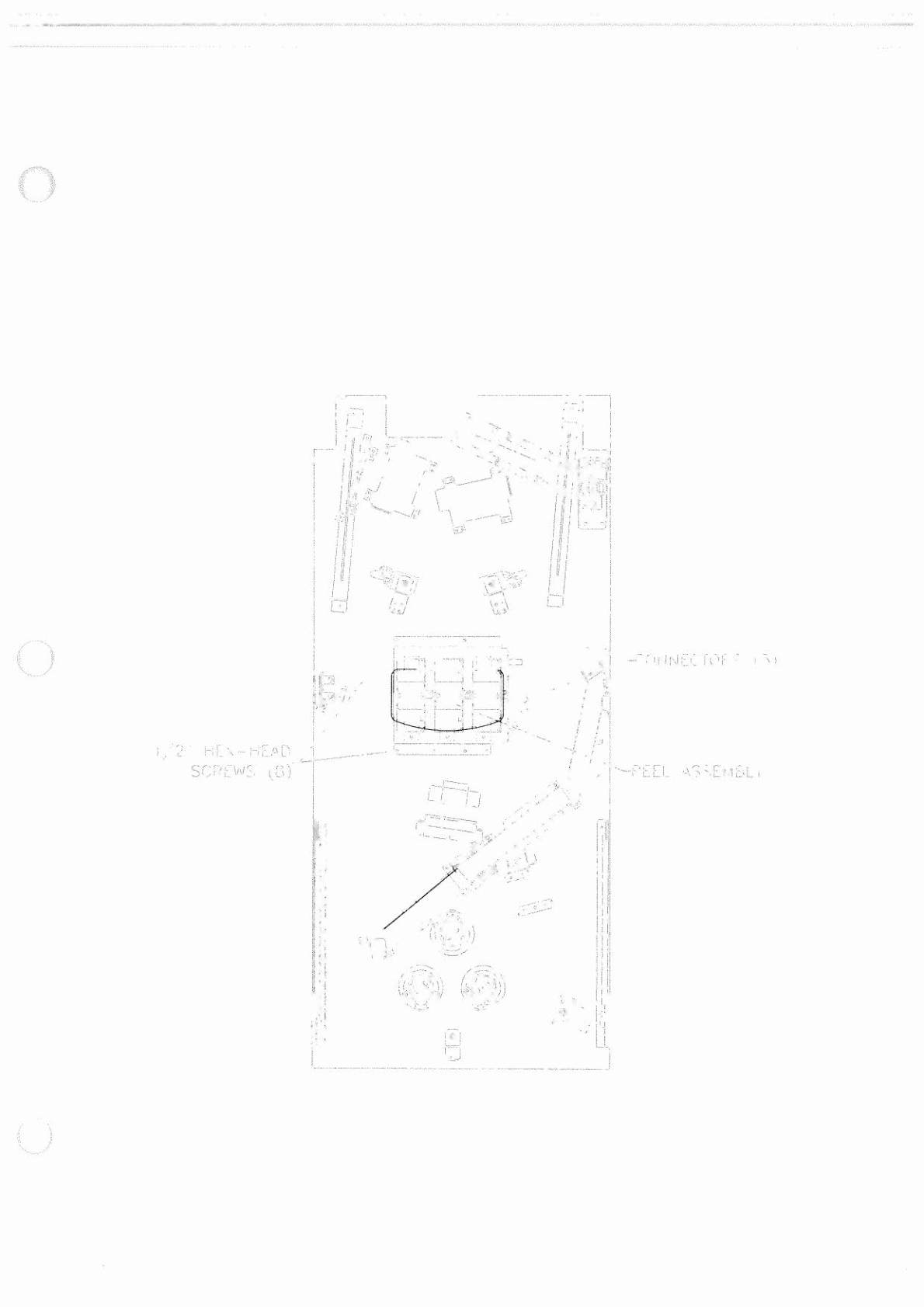

Underside of Playfield, Viewed in Raised Position
1-49
