Page 47 - Twilight Zone (Bally)

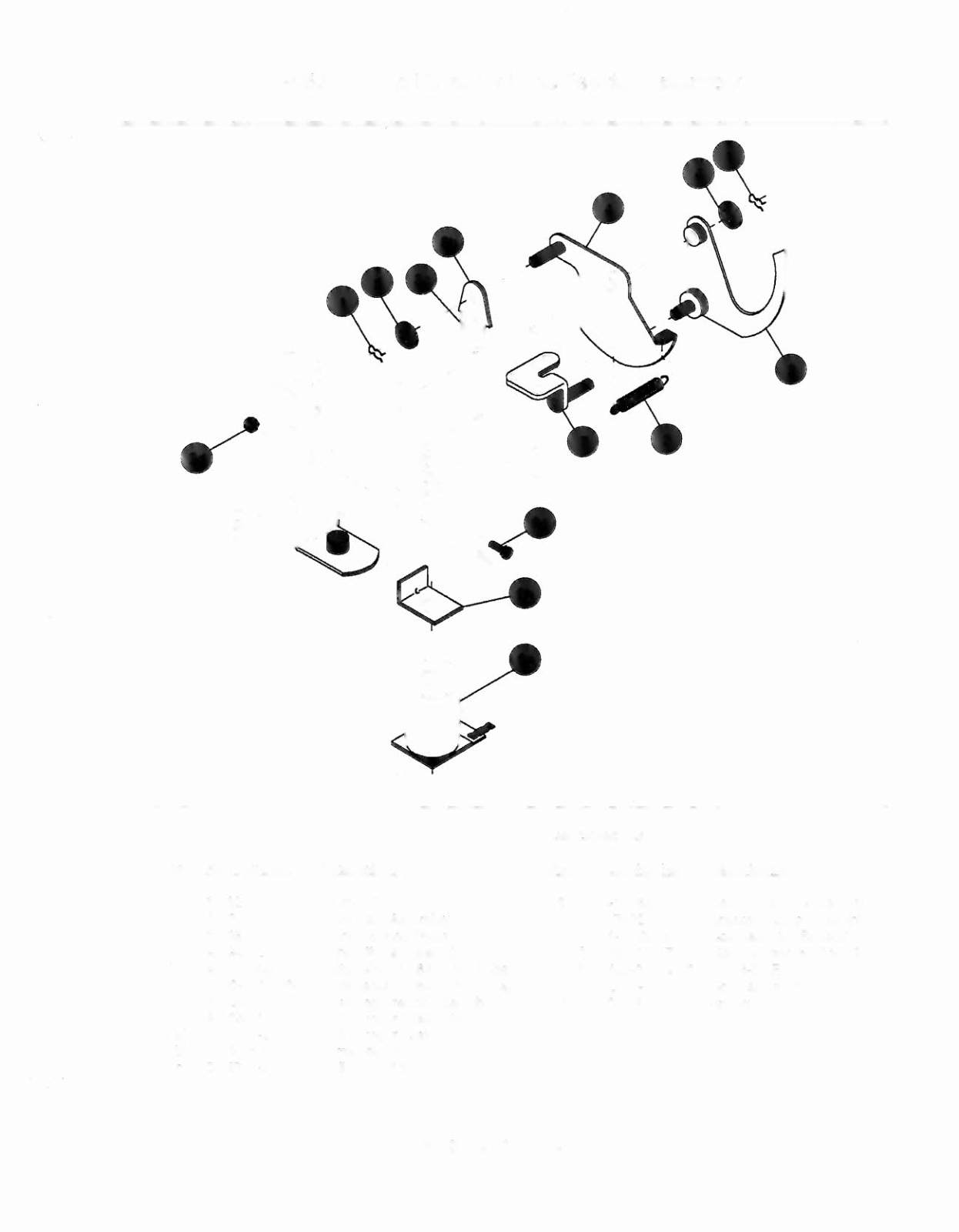

C-9638 Ball Shooter Lane Feeder Assembly
,
I ,
'J
Associated Parts:
Item Part Number Description Item Part Number Description
1. 12-6227 Hairpin Clip 9. A·16766 Coil & Bracket Assembly
2. A-S247 Eject Cam Assembly a) B-7572-1 Bracket & Stop Assembly
3. 10-362 Ejector Spring (Plain) b) 01-S-508-S Coil Retaining Bracket
4. A-6949-L Spring Plate Assembly c) 4006-01 017-06 Mach. Screw, 6-32 x 3/S
5. 4700-00030-00 Flatwasher, 17/64 x1/2 x 15ga. d) 4406-01119-00 Nut, 6-32 ESN
6. 4700-00103-00 Flatwasher, 17/64 x112 x 2Sga. e) AE-26-1200 Coil Assembly
7. A-8268 Mounting Bracket Assembly 10. 10-128 Spring
8. A-8050-1 Coil Plunger Assembly
a) 02-3407-2 Coil Plunger Assy, 2-1/8"
b) 03-8085 Armature Link
c) 20-8716-5 Ro" Pin, 1/8 x 7/16"
"v-, __/
Twilight Zone 2-23
