Lamp Test
From Sound Test depress ADVANCE with the switch set to AUTO-UP. Test 01 should be indicated in the Credits
display and all multiplexed lamps should flash.
Lamp
No.
Function
*01 Keep Shooting
·02 Ball in Play
·03 Tilt
*04 Game Over
*05 Match
*06 High Score
07 50,000 When Lit
08 Keep Shooting
09
"F'
10 "A"
11
"N"
12
"T'
13
"A"
14 "S"
15
"Y"
16 Turn Around Left
17 Turn Around Right
18 Left Drain Lane
19 Right Drain Lane
20 Left Flipper Return Lane
21 Right Flipper Return Lane
22 Lane
I
23 Lane 2
24 Lane 3
25 Lane 4
26 Lane 5
27 Lane 30,000
28 Lane 60,000
29 Lane 90.000
30 All Score Mult-Arrow
31 Time 2X
32 Time 3X
33 Time 4X
34 Time 5X
35 Ramp T
36 Ramp
I
37 Ramp M
38 Ramp
E
39 "T'
40
"I"
41
"M"
42
"E"
43 10,000 Turn Around
44 20,000 Turn Around
45 30,000 Turn Around
46 40,000 Turn Around
47 50,000 Turn Around
48 100,000 Turn Around
49
I
Bonus
50 2 Bonus
51 3 Bonus
52 4 Bonus
53 5 Bonus
54 6 Bonus
55 7 Bonus
56 8 Bonus
57 9 Bonus
58 10 Bonus
59 20 Bonus
60 2X Bonus Multiplier
61 3X Bonus Multiplier
62 5X Bonus Multiplier
63 lOX Bonus Multiplier
64 Not Used
o

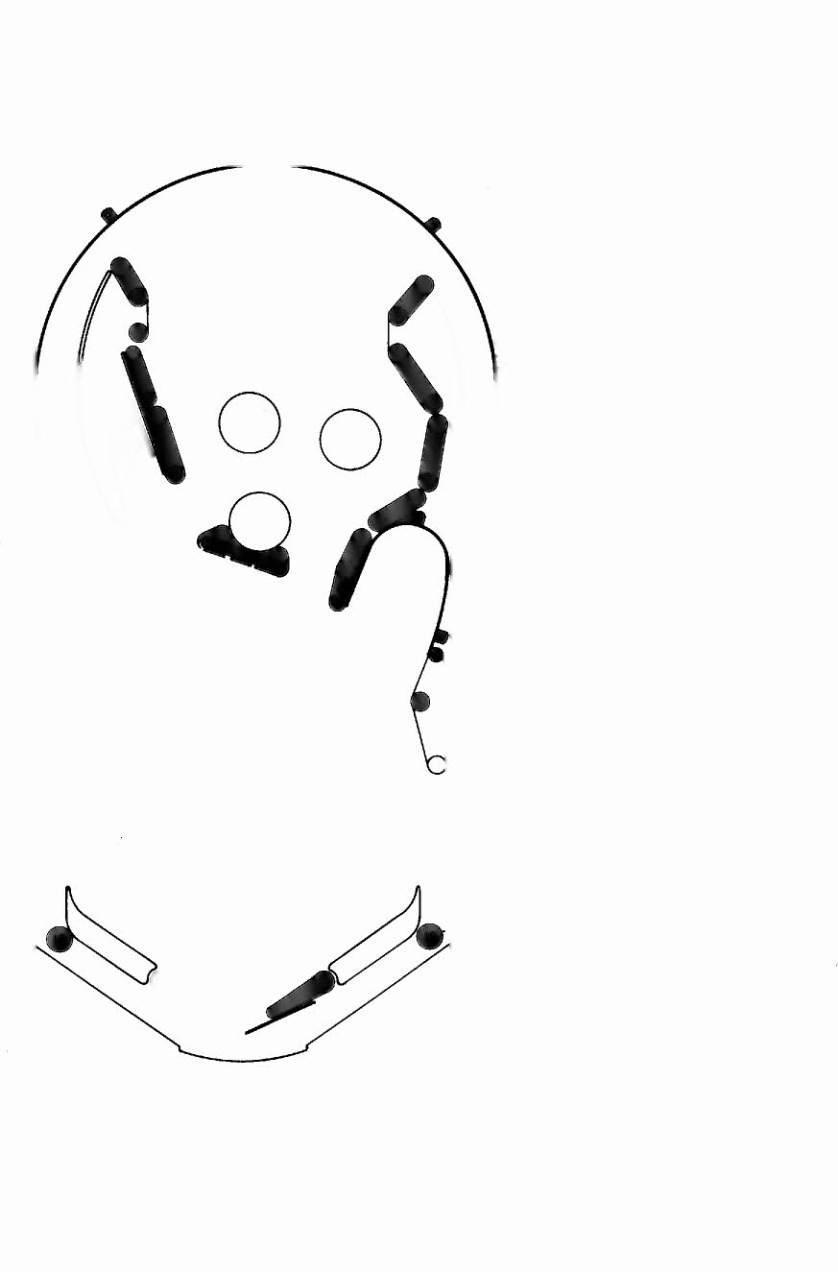

Figure
1.
Playfield Lamp Locations
8
*These Lamps are on Insert Door, all others are on Playfield.
