Solenoid Test
l. From Lamp Test depress ADVANCE with the switch set to AUTO-UP.Test 02 should be indicated in the
Credits display. The Match display sequences from 01 thru 25. Corresponding solenoids 01 thru 24 are
pulsed. Flipper relay is de-energized with subtest 25.
2. To continuously pulse a single solenoid set switch to MANUAL-DOWN. Operate ADVANCEpushbutton
sequence through the solenoids one at a time. Set switch to AUTO-UP to resume sequencing.
Sol.
No. Function
01 Outhole
02 Not Used
03 Not Used
04 Not Used
05 Not Used
06 Not Used
07 Not Used
08 Not Used
09 Not Used
10 Not Used
II General Illumination Relay
12 Not Used
13 Not Used
14 Not Used
15 Bell
16 Coin Lockout
*17 Top Left Jet Bumper
*18 Right Jet Bumper
*
19 Left Kicker
*20 Right Kicker
*21 Bottom Jet Bumper
22 Not Used

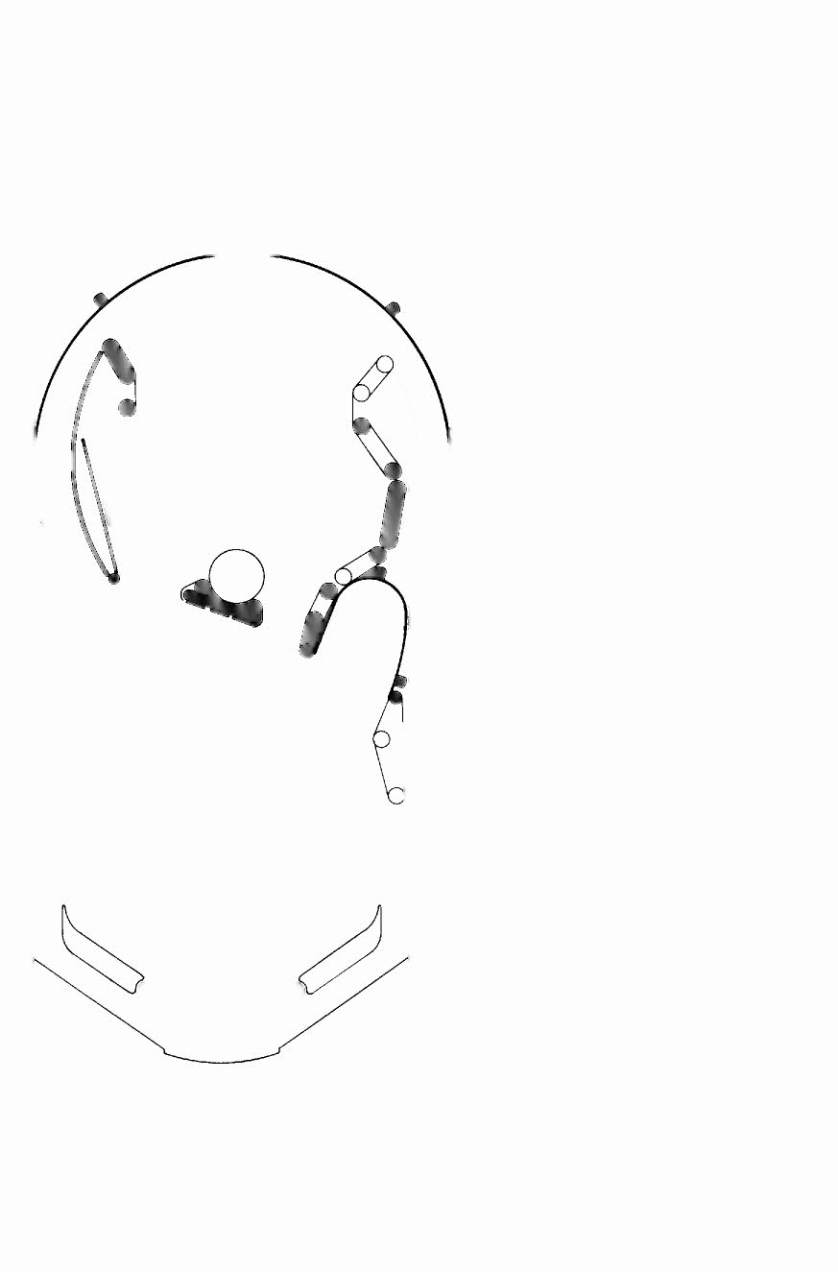

Figure
3.
Playfield Solenoid Locations and Solenoid Chart
