A-941 5-2

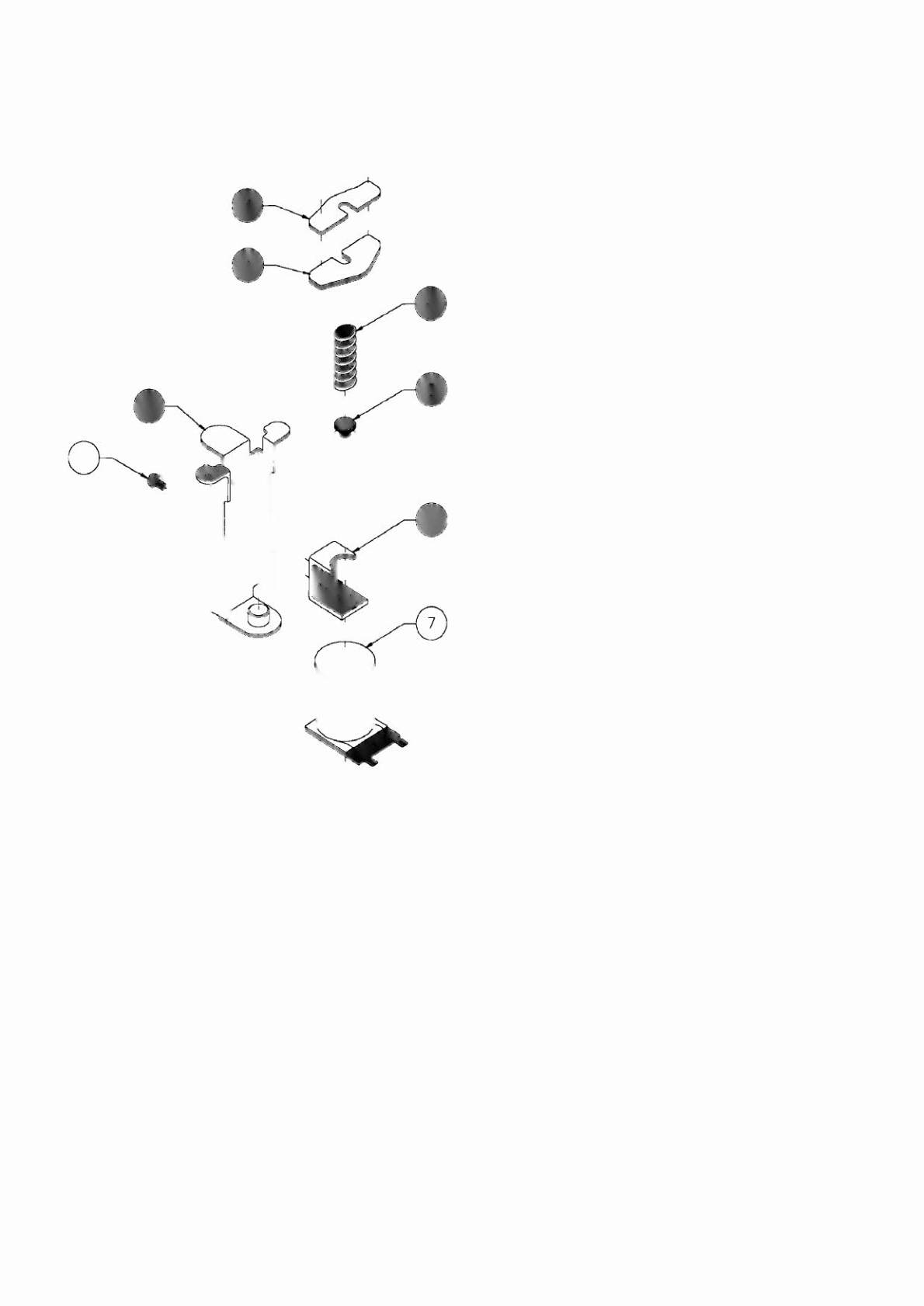

Jet Bumper Coil Assembly
Item Part Number
1
2
3
4
5
6
7
8
9
8-7417
01-1747
01-5492
01-5493
02-3406-1
10-326
AE-26-1200
4006-01017-04
03-7066
Associated Parts:
(Not Shown)
10 8-12030-2
a)
A-16443
b)
01-1168
c)
01-3670
d)
03-7395
e)
4005-01003-12
f)
4405-01117-00
2-21
Description
8racket & Stop Assembly
Coil Retaining Bracket
Armature Link, Steel
Armature Link, 8akeline
Coil Plunger
Armature Spring
Coil Assembly
Mach. Screw, 6-32 x 1/4"
Coil Tubing
Leaf Switch Assembly
Switch & Diode Assembly
Switch Mounting Bracket
Switch Plate
Switch Actuator
Mach. Screw, 5-40 x 3/4"
Nut 5-40 Hex.
