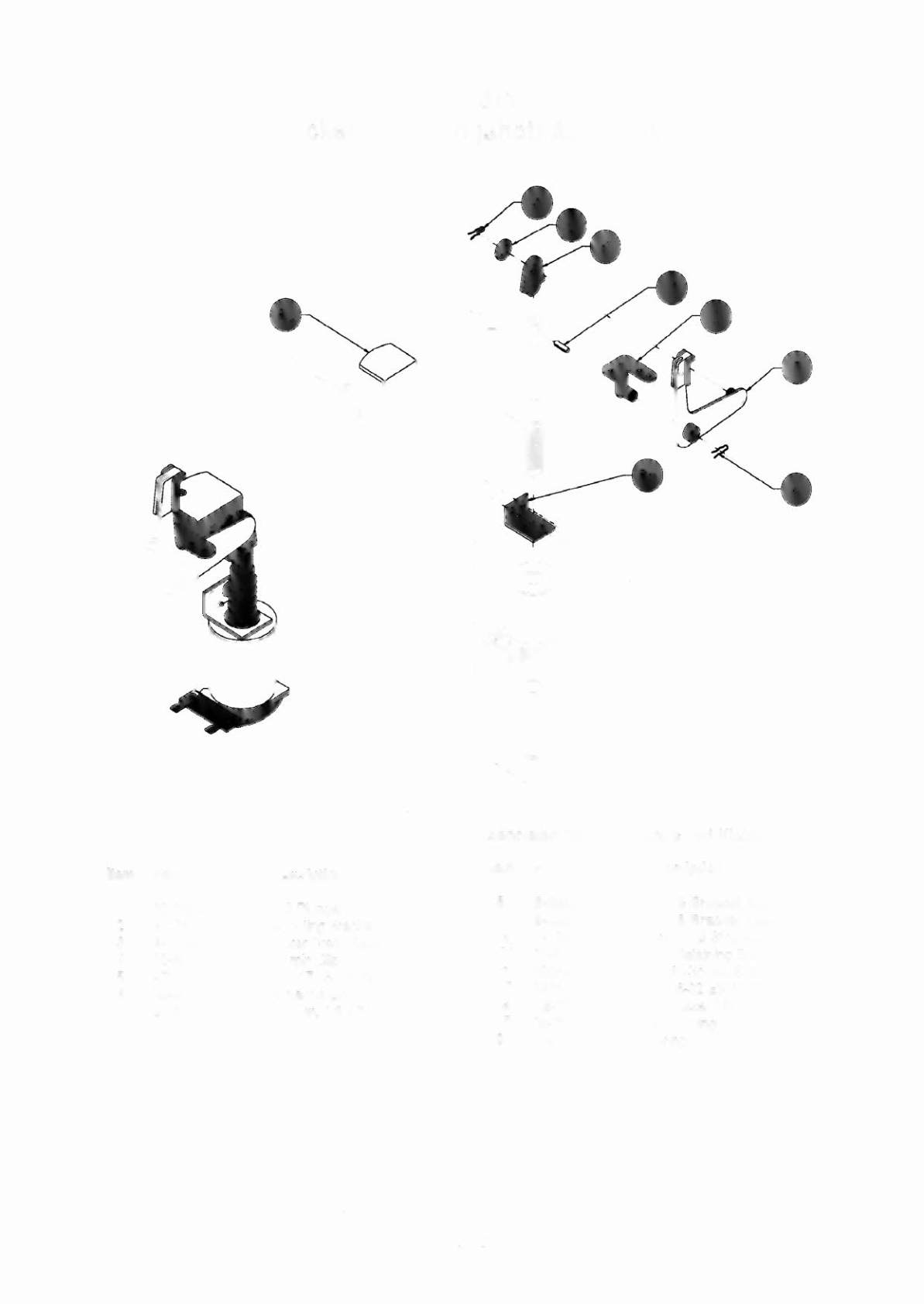

Kicker Arm (Slingshot) Assembly
Item Part Number
Description
1 02-2364
Coil Plunger
2 A-17810
Mounting Bracket Assembly
3
A-12664
Kicker Crank Assembly
4 12-6227
Hairpin Clip
5 4700-00030-00 FW, 17/464 x 1/2 x 15ga.
6 03-8085
Armature Link
7 20-8716-5
Roll Pin, 118x 7/16"
Item Part Number
Associated Parts for Right & Left Kickers:
Description
8
B-9362-L-3
B·9362·R-4
a) A-17808
b) 01-8-508-S
c) 4006-01017-06
d) 4406-01119-00
e) AE-27-1200
f)
03-7066
9 10-128
2-18
Coil
&
Bracket Asay., Left
Coil 6. Bracket Assy., Right
Bracket & Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32 x 3/8"
Nut, 6-32
ESN
Coil Assembly
Coil Tubing
Spring
