S0039 ..CAB

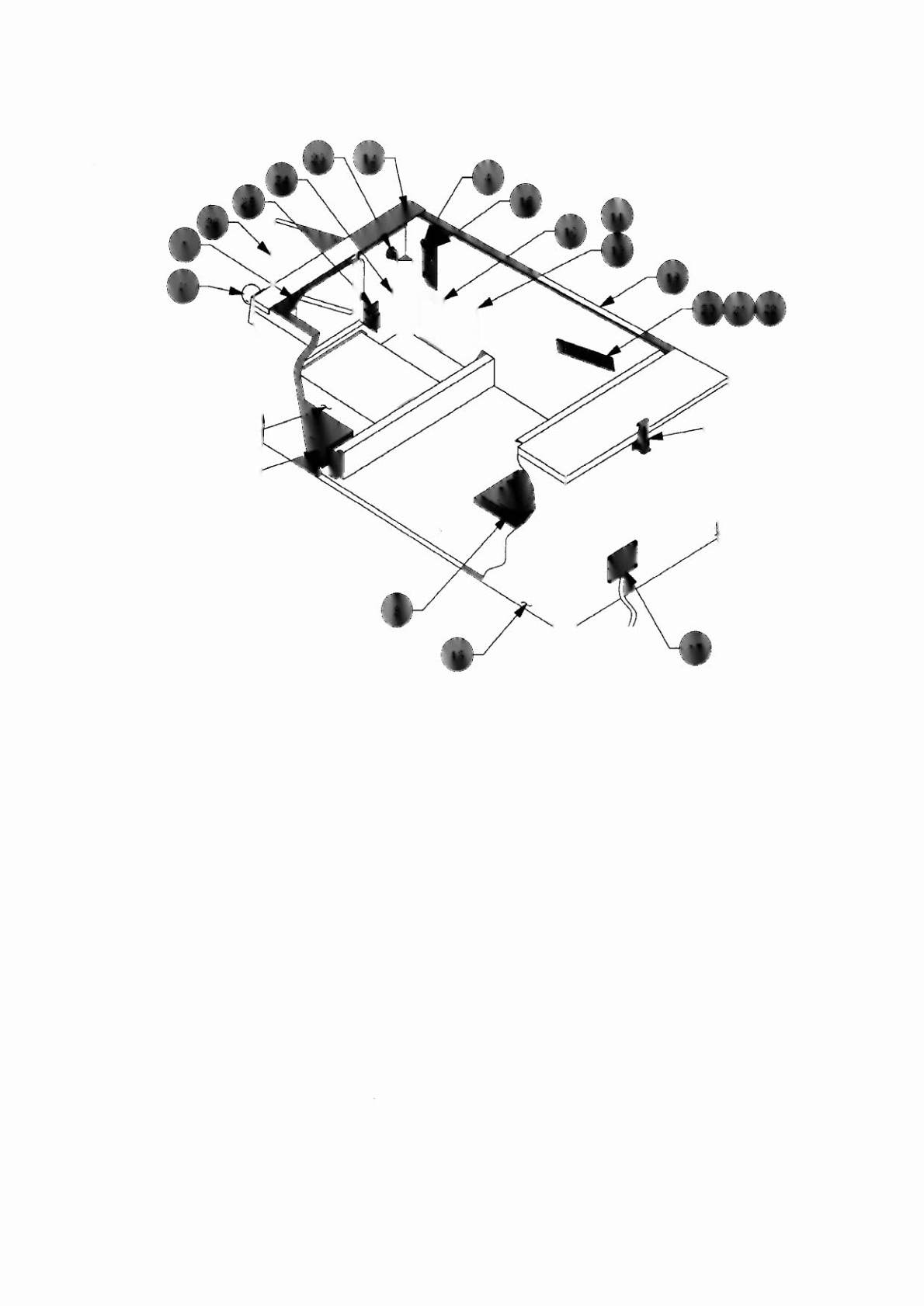

Cabinet Assembly
Miscellaneous Parts
Item Part Number
Description
Part Number
Description
1 A-16773-1
Lever Guide Assembly
A-17195
Tilt Switch Assy. w/Cable
2 A-20084
Ball Shooter w/Knob , Silver
A-19562.1
Stay Arm Assembly
3 20-9663-18
Push Button
w/Sw.,
Extra Ball
01-12352
Clip Bracket
4 A-16883-4
Flipper Button, Red (2)
01-9011-L
Backbox Mtg. Bracket, Left
5 A-18531-1
4-Ball Cashbox Assembly
01-9011-R
Backbox Mtg. Bracket, Right
6 A-17540
Univ. Power Interface Assy.
01-6389-1
Cashbox Lock Bracket
7 5610-14515-00 WPC Transformer
08-7028-T
Playfield Glass
8 5555-12929-00 Speaker, 40, 6·, 25w
08-7377
Leg Leveler Adjuster, 3"
9 20-9347
Toggle Latch
20-6500
Steel Ball,
1-1/16· (5)
10 A·17051-1
Coin Door Interface Board
11 A-19514
Leg Assembly, Chrome
12 D-12615
Front Molding Assembly
Cabinet Cables
13 20-6502-A
Plum Bob
14 A-15361
Tilt Mechanism Assembly
15
Cordset
H-17217
PlumblBob Mech. Protect Cable
16 A-17316
Opto Flipper Assembly (2)
H-19524
Cabinet Cable
17 01-10714
Line Cord Cover
H-19601-1
Power Extension Cable
18 A-12359-3
Side Molding Assembly (2)
H-20005
Cabinet Switch Lamp Cable
19 11-1225
Wood Cabinet
A-20201
Cable
&
Jumper Assy., Coin Door
20 01-11408
Plate Spacer (2)
21 02-4329-1
Pivot Nut,
7/8" (4)
22 02-4352
Pivot Bushing (2)
23 20-9663-1
Push Button
w/Sw.,
Start
24 01-11400
Leg Plate (4)
25 A-18249-1
Cable
&
Interlock Switch Assy.
*
See Application Chart p.2-35.
26 09-61000-1
Coin Door-USA
2-3
