EDDY SENSOR CALIBRATION
Theatre of Magic uses Eddy Current Sensors to detect the pinball without the use of a mechanical switch.
One eddy device can be found in the front of the trunk. The other two are located in the outlane areas.
Proper adjustment will ensure top game play and dynamic pinball action.
Calibration Procedure:
1) Adjust Pot (R2) counter-clockwise until LED illuminates.
2) Then adjust R2 clockwise until LED just turns off.
3) Place a pinball over the sensor on the playfield side. The LED should turn ON as you move the
pinball across the sensor.
4) Secure R2 with a drop of "Glip-Tol".

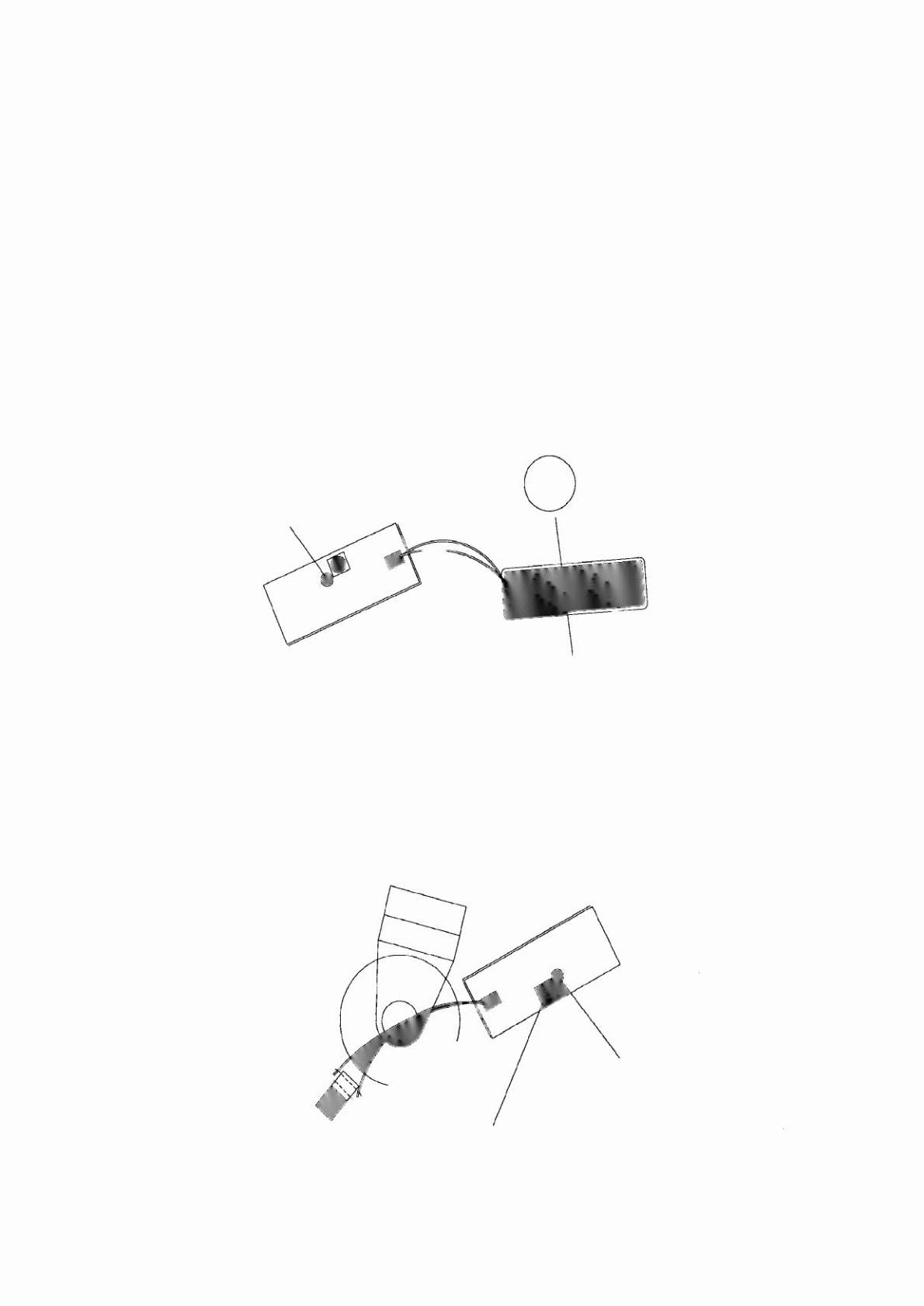

Magic Trunk Eddy o
Eddy Sensor
Magic Trunk Eddy Design
Auto Magna-Save Eddy (Hocus Pocus)
Eddy Sensor
Typicol Auto Magno-Sove Design
Adjustment POT (R2)
1-45
