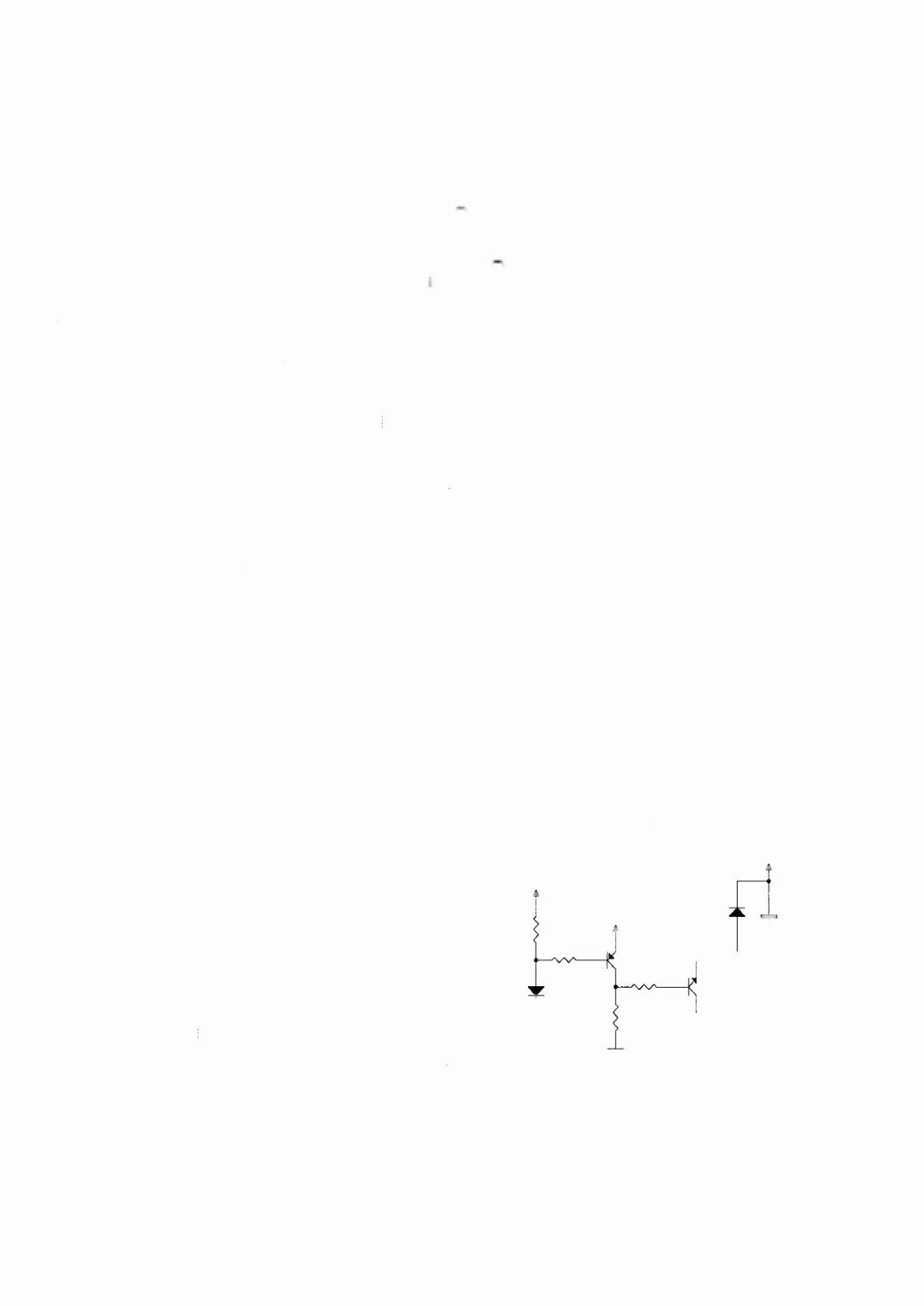

GENERIC EDDY SENSOR P.C.B. ASSEMBLY
A-18543-1
&
A-18543-2
A-18543-1
Left Drain Eddy Sw #45
J1-1 Black from J 116-3
J1-2 Gray-Yellow from J116-2
J1-3 Green-Yellow from 207-4
J1-4 White-Green from J209-5
J1-1 Red to Inductor
J
1-2 Black to Inductor
o
R2
L
L~A~B_E_L_------'
A-18543-1
Right Drain Eddy Sw #48
J1-1 Black from J116-3
J1-2 Gray-Yellow from J116-2
J1-3 Green-Yellow from 207-4
J1-4 White-Gray from J209-9
A-18543-2
Box Hit Eddy Sw #85
J1-1 Black from J116-3
J1-2 Gray-Yellow from J 116-2
J1-3 Green-Gray from 207-9
J1-4 White-Green from J209-
J1-1 Red to Inductor
J1-2 Black to Inductor
J1-1 Blue to Sensor
J1-2 Blue to Sensor
+v
To
Sensor
Inductor
GND
+12V
COL
ROW
3-20
