A-19782

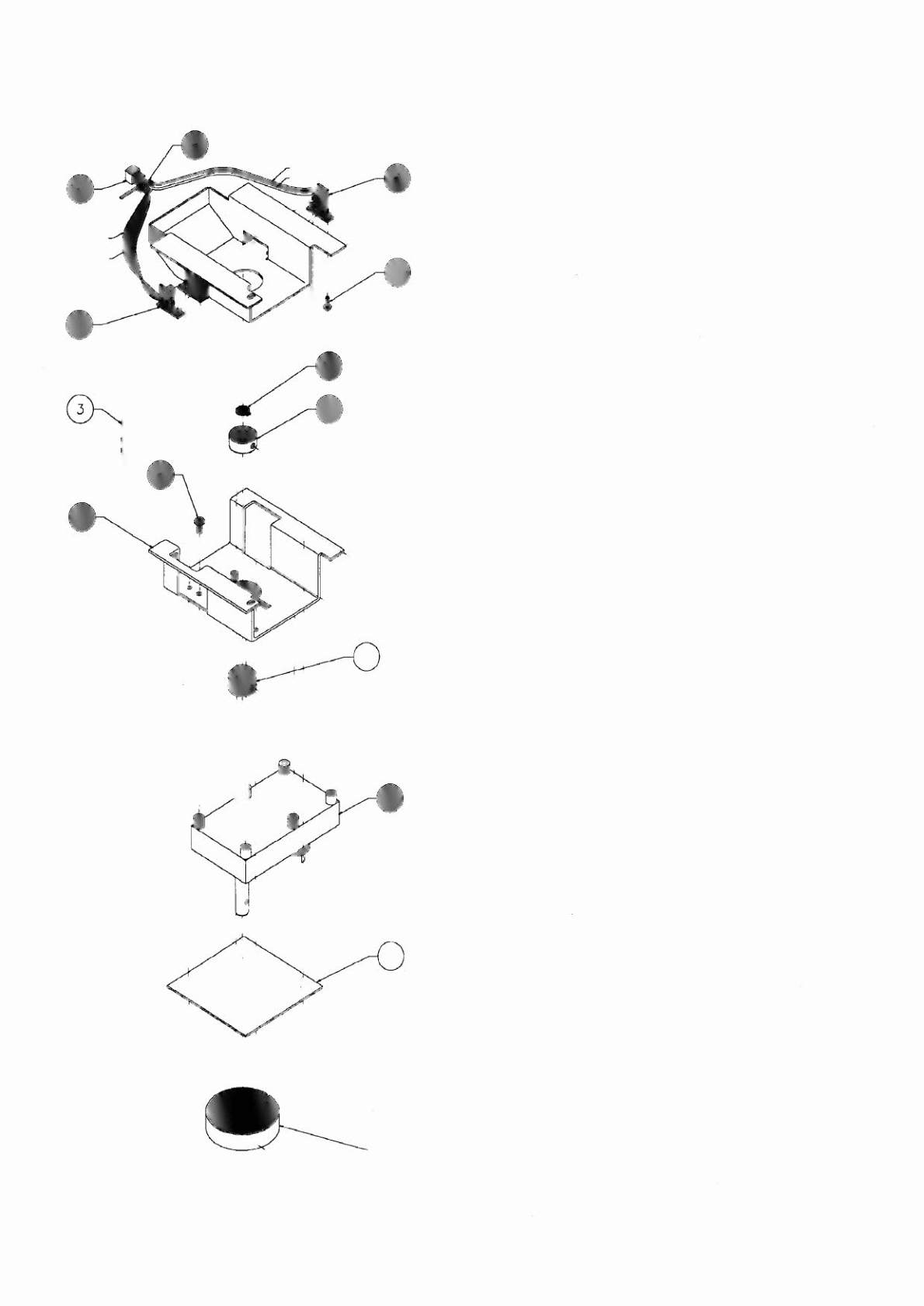

Magic Trunk Motor Assembly
Hem Part Number
Description
1 14-8018
Motor, 12VDC
2 04-10008
Trunk Motor Bracket
3 02-4176-28
M-F Spacer #8-32 x 1-3/4"
4 A-19749
Magic Trunk Opto Assembly
5 03-9318
Opto Interrupter
16d
6 4010-01008-06 Mach. Screw, #10-32 x 3/8"
7 4700-00009-00 Flat Washer, 11/64 x 7/16 x 21ga.
8 4408-01119-00 Nut #8-32 ESN
9 4008-01083-08 Set Screw #8-32 x 1/2"
10 20-8714-50
External Retaining Ring
11 H-18601-2
Cable Assembly
12 A-19933
Motor Stop Assembly
13 4008-01083-04 Set Screw, #8-32 x 1/4"
14 4010-01169-04 Set Screw, #10-32 1/4
15 02-5175.1
Motor Shaft Collar
Associated Assembly:
16 A-19791
Front Trough Assembly
a) 01-13629
Front Trough Bracket
b) A-16908
LED Assembly
c) A-16909
Photo Transistor Assembly
d)
4106-01013-06 Sh. Metal Screw, #6 x 3/8"
e) H-17609-11
Cable Assembly
f) 03-7520-2
Tie Wrap·Nylon, 3-7/8"
