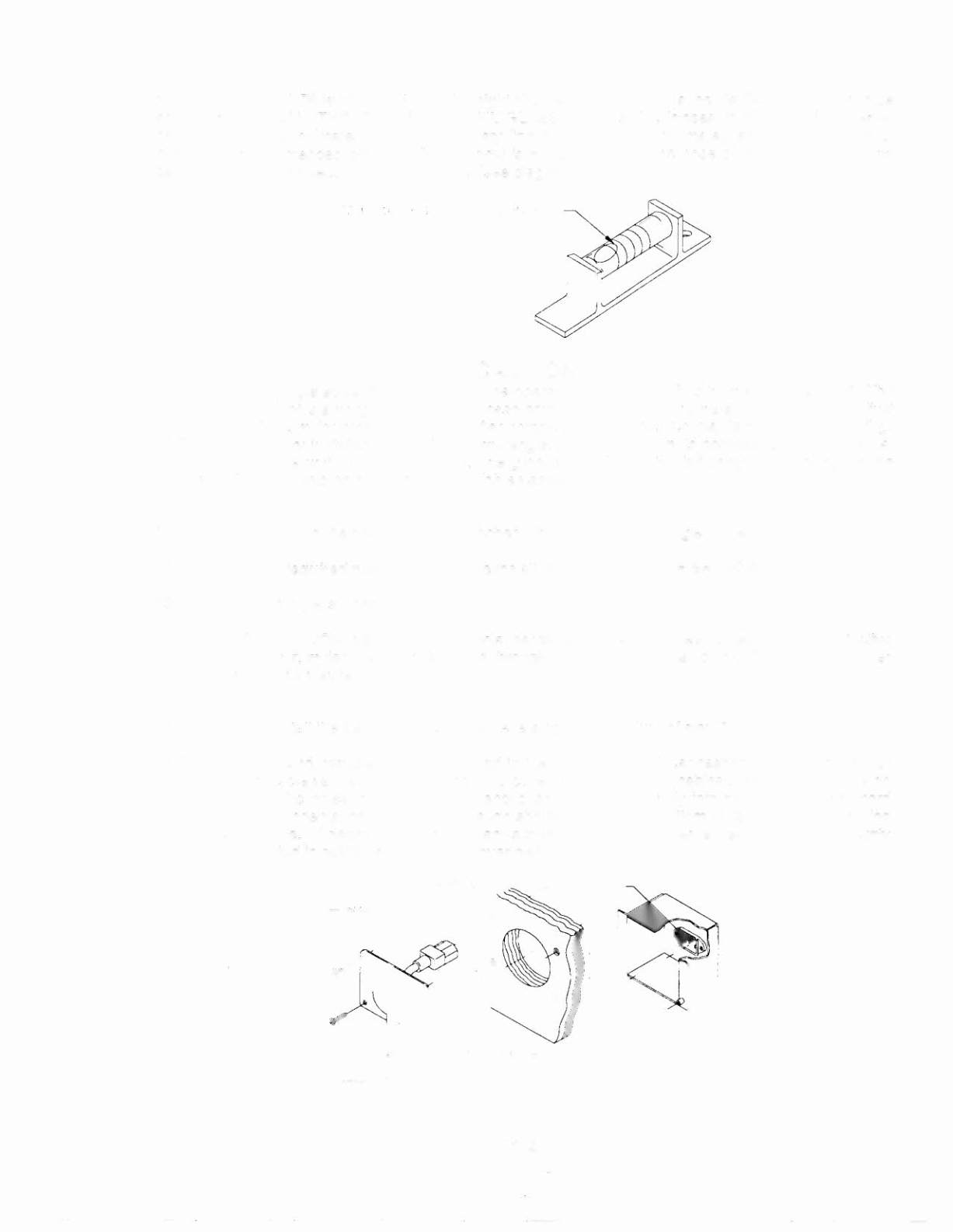

10. The TRU-PITCHTM level is located on the right shooter rail. This allows the playfield pitch angle to be
accurately adjusted WITHOUT REMOVING THE GLASS. The first line (closest to the front of the game)
on the level is approximately 6 degrees.
Every line thereafter is approximately another 1/2 degree of
pitch. The recommended pitch for The Shadow is 6 1/2 degrees. The nose of the bubble should be
between the first and second line on the level (see diagram below).
CAUTION
Playfield pitch angle adjustments can affect the operation of the plumb bob tilt, inside the cabinet. The
plumb bob weight is among the parts in the cash box; the operator should install the weight and adjust
this tilt mechanism for proper operation, after completion of the desired playfield pitch angle setting.
The unit is factory installed for
a
6
112 degree angle. If an adjustment is necessary, loosen screw at
the bottom of the unit. Move the pointer, one groove at
a
time to the left or right, depending on the
degree desired. Hold pointer in place and tighten screw.
11. Move the game into the desired location; recheck the level and pitch angle of the playfield.
12. Verify that the
required number
of balls are installed in the game.
THE SHADOW
uses 5 balls.
13. Install playfield mylars if desired.
NOTE:
The SHADOW
playfield has a special hardcoat surface and does not require a full protective
mylar. However, mylars can be purchased through your local Bally Distributor. Specify part number
03-9315-1 for full playfield mylar.
14. Clean and reinstall the playfield cover glass, reversing the procedure of step 7.
15. To attach line cord, remove envelope stapled to the inside cabinet (near cashbox). Remove the four
Phillips-head screws that mount the line cord cover plate to the rear cabinet. Match the prongs on
the plug with the holes in the receptacle and push line cord securely into place. Make sure cord
aligns with the indentation of plate (indentation should point toward bottom of cabinet). Remount line
cord cover plate. If desired, tamper resistant screws are provided in an envelope marked "Security
Screws" (located in cashbox) to remount cover plate.
(Po d of cab inet
sho wn
for refe rence only)
~
1-4
