Part Number
01-9211
01-11781
A-18753
A-15849-R-4
A-17811
B-9362-L-2
A-19108
A-16120
A-15849-R-2
A-19109
C-13940-1
A-18955
A-19638-2
A-17749.1-2
A-18952
A-19076
A-15646-2
A-18622
A-18950
A-17749.1-1
A-19642
A-18388
A-18954
A-19638-1
A-17624
A-17811
B-9362-R-3
A-18159-1
A-15849-L -2
A-15368

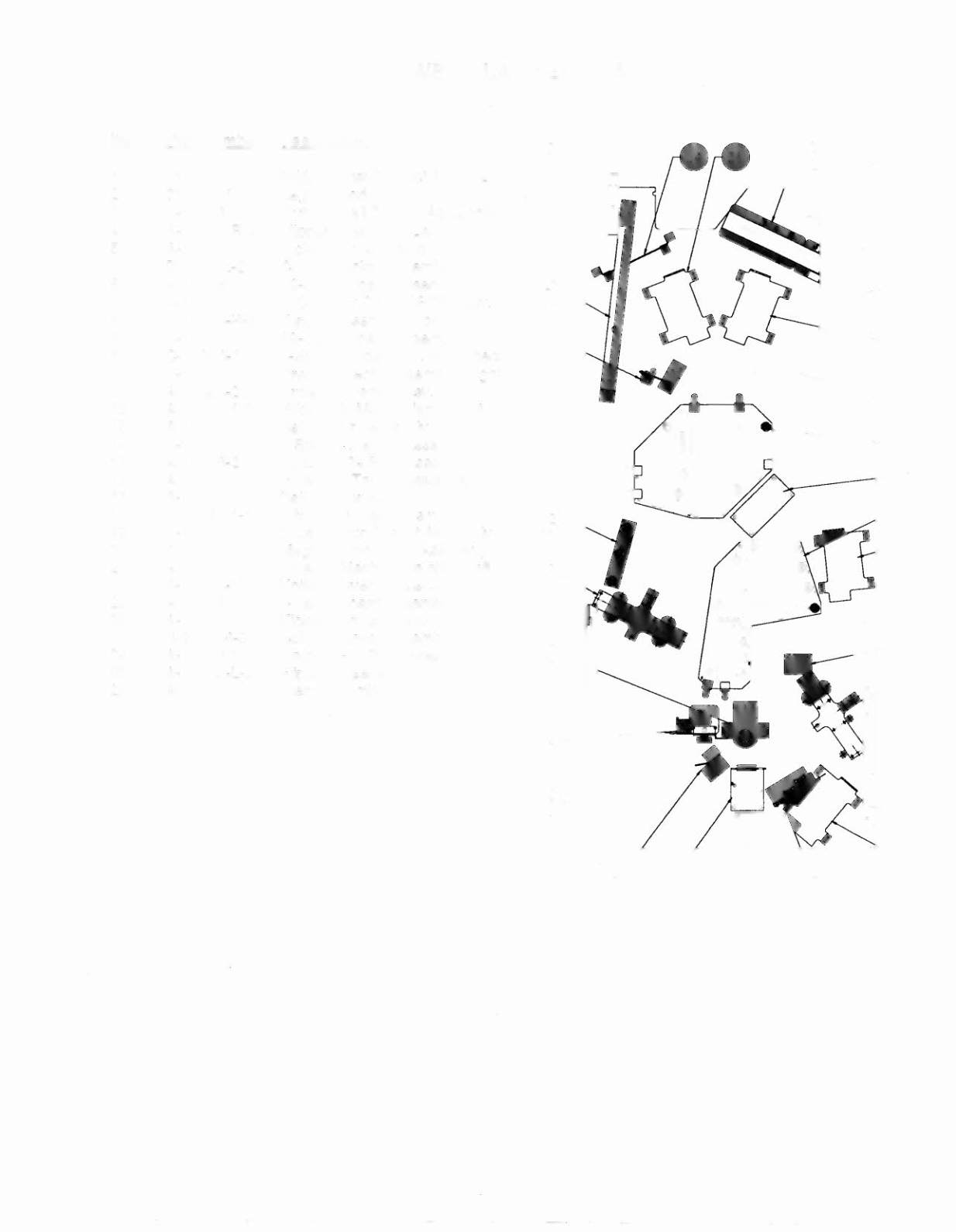

LOWER PLAYFIELD PARTS
Description
Plfd. Hanger Bracket Assy. (2)
Leg Support (2)
Outhole Ball Trough Assembly
Flipper Assembly, Lwr. Right
Kicker arm (Slingshot) Assy.
Coil
&
Bracket Assembly
16-Lamp Board Assembly
D.C. Motor Control PCB Assy.
Flipper Assembly, Upr. Right
19-Lamp Board Assembly
5-Sw.
&
Diode Assy. w/Spacers
Divertor Mech. Assembly, Right
Knife
&
Diverter Assy., Right
Plfd. Slide Mechanism, Right
Ball Kicker Assembly
3-Switch Bracket Assembly
Opto Sw-24 PCB Assembly
Extended Target Assembly
Ball Popper Assembly
Plfd. Slide Mechanism, Left
1-Bank Drop Target Assembly
Magnet Opto & Nut Assembly
Divertor Mech. Assembly, Left
Knife
&
Diverter Assy., Left
3-Lamp Board Assembly
Kicker Arm (Slingshot) Assy.
Coil
&
Bracket Assembly
Opto Sw-10 PCB Assembly
Flipper Assembly, Lwr. Left
Eject Assembly
2-46
