A-18382

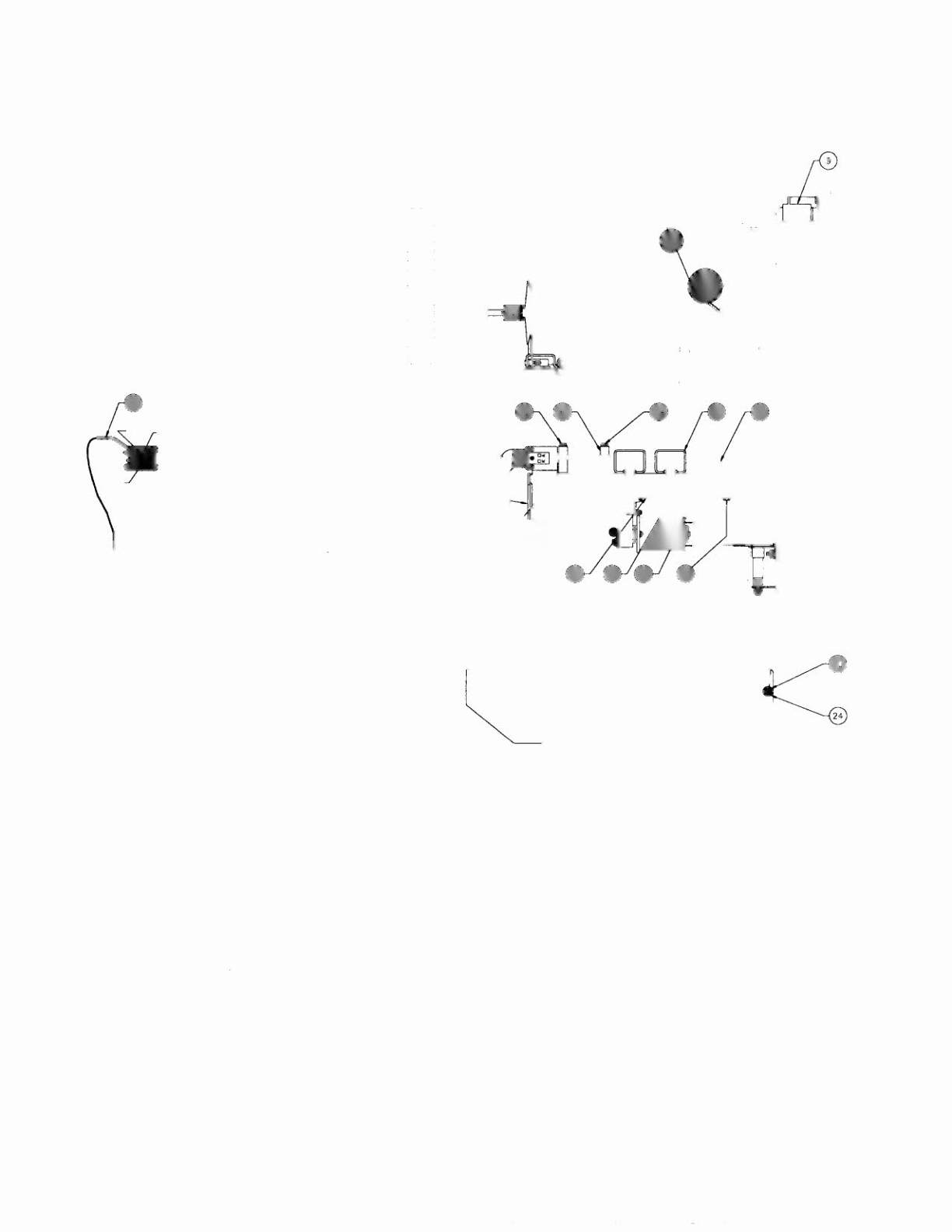

Mini-Playfield Assembly
5
24
Item Part Number Description
Item Part Number
Description
1 A-17789
Coil Slide Motor Assy.
17 A-19107-1
4-Lamp Assembly
2 A-18783
4-Bank Drop Target Assy.
18 A-19786
Back Board Assembly
3 A-18379-6
Side Target
19 41 06-01115-16
Sh. Metal Screw, #6 x 1"
4 36-50032-1
Mini Playfield
&
Insert Assy.
20 01-13590
Coil Wire Guard
5 03-9229
Mini Playfield Guard
21 H-16293-2
Receiver Cable
6 02-4435
Single Post, Groove #8 x 1-3/16"
22 A-19603-2
Mini Plfd. Low Guard
7 23-6694-6
Rubber Ring, 1" 1.0.
23 4808-01175-07Y E-P #8 x 7/16"
9 A-19113-2
Mounting Bracket Assy., Left
24 4006-01113-06
Mach. Screw, #6-32 x 3/8"
10 4008-01113-28 Mach. Screw, 8-32 x 1-3/4"
25 4808-01175-08
E-P #8 x 1/2"
11 01-13596
Spring Steel Target
26 *31-2028-2
Decal
12 A-19603-1
Plfd. Plastic/Bracket Assy.-Front
27 03-7520-2
Tie Wrap
13 A-19751
Opto/Lamp-Cable Assembly
28 4008-01168-08
Mach. Screw, #8-32 x 1/2"
14 17-1116-3
Jumper Wire, 3" (Yellow)
29 4408-01118-00
Nut 8-32 x 3/8" Long Tee
15 17-1116-5
Jumper Wire, 5" (Yellow)
30 4700-00011-00
FW, 11/64 x 7/16 x 16ga.
16 4006-01113-12 Mach. Screw, #6-32 x 3/4"
31 23-6710-3
Tube-Clear #10 x 2"
• Not available for individual sale. Order Decal Set 31-2028.
