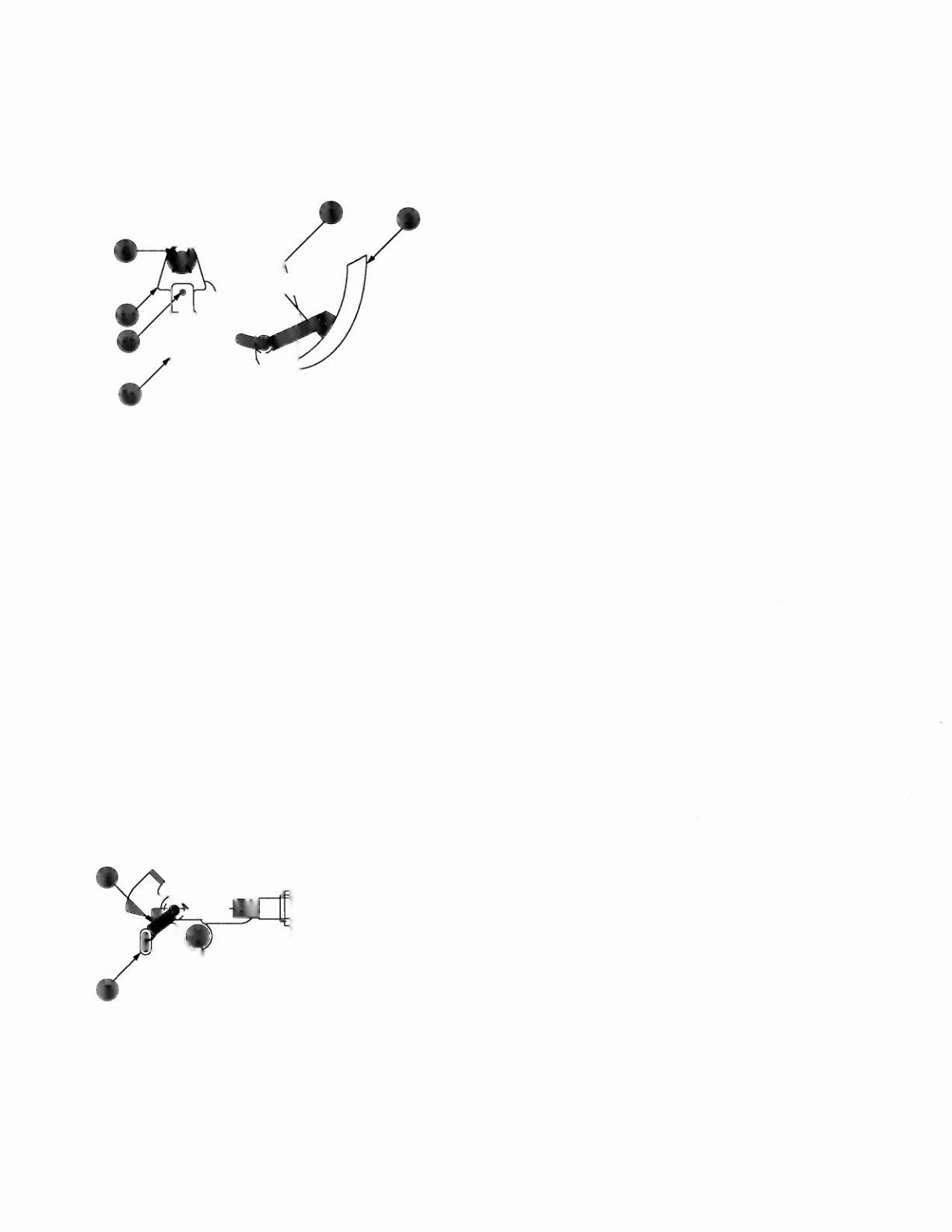

C-9638 Ball Shooter Lane Feeder
Item Part Number
1.
12-6227
2.
A-8247
3.
10-362
4.
A-6949-L
5.
A-8050-1
a)
02-3407-2
b)
20-8716-5
c)
03-8085
6.
12-6227
7.
4700-00030-00
8.
4700-00103-00
9.
A-8268
Description
Hair Pin Clip
Eject Cam Assembly
Ejector Spring (Plain)
Spring Plate Assembly
Coil Plunger Assy, 2-1/8"
Coil Plunger, 2-1/8"
Roll Pin, 1/8 x 7/16
Armature Link
Hair Pin Clip
Flatwasher, 17/64 x1/2 x 15ga.
Flatwasher, 17/64 x1/2 x 28ga.
Mounting Bracket Assembly
Associated Parts
B-9362-L-2
B-7572-1
01-8-508-S
4006-01017-06
4406-01119-00
AE-26-1200
03-7066
A-8039-3 Outhole Kicker Assembly
Coil
&
Bracket Assembly
Bracket
&
Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32 x 3/8
Nut, 6-32 ESN
Coil Assembly
Coil Tubing
Item Part Number
Description
1.
A-6378
Mounting Plate Assembly
2.
A-8335
Coil Plunger Assembly
a)
02-2364
Coil Plunger
b)
20-8716-5
Roll Pin, 1/8 x 7/16
c)
01-4251
Ball Return Link
3.
03-7066
Coil Tubing
0
4.
A-6889
Kicker Lever Assembly
5.
A-8038
Coil Stop Assembly
0
6.
AE-27-1200
Coil Assembly
7.
03-7176-1
Striker Ring
8.
10-101-4
Spring-Reset
9.
20-8712-25
"E" Ring, 1/4" Shaft
10.
4006-01003-03 Mach. Screw, 6-32 x 3/16
PARTY ZONE
2.20
