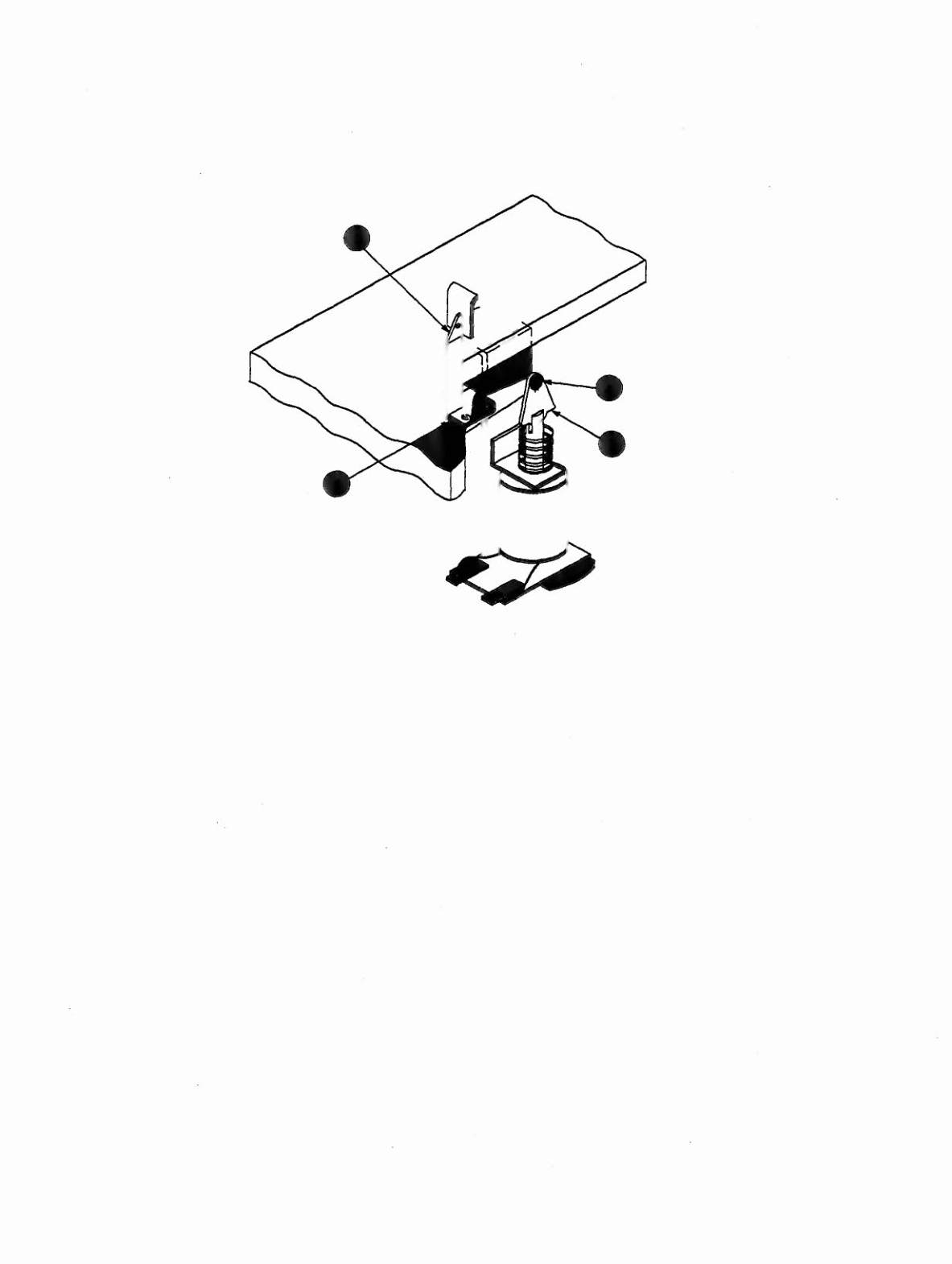

8-12665 Kicker Arm (Slingshot) Assembly
(Left
&
Right Kickers)
Item Part Number
Description
1 12-6227
Clip, Hairpin
2 A-12664
Kicker Crank Assembly
3 A·5103
Coil Plunger Assembly
a)
02-2364
Coil Plunger
b)
20-8716-5
Roll Pin,
1/8
x
7/16
c)
03-8085
Armature Link
4 4700-00030-00 Flatwasher,
17/64
x
112
x 15ga.
5 A-5653
Mounting Bracket Assemt;>ly
Associated Parts for Left Kicker
B-'1203-R·'
B-7572-1
01-8-508-S
4006-01017-06
4406·01119·00
AE-26-1500
03-7066
Kicker
(Slingshot)
Associated Parts for Right Kicker
Coil
&
Bracket Assembly
Bracket
&
Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32
x
3/8
Nut, 6-32 ESN
Coli Assembly
Coil Tubing
B-11203-L-1
B-7572-1
01-8-508-S
4006-01017-06
4406-01119-00
AE-26·1500
03-7066
Coil
&
Bracket Assembly
Bracket
&
Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32
x
3/8
Nut. 6-32 ESN
Coil Assembly
Coil Tubing
