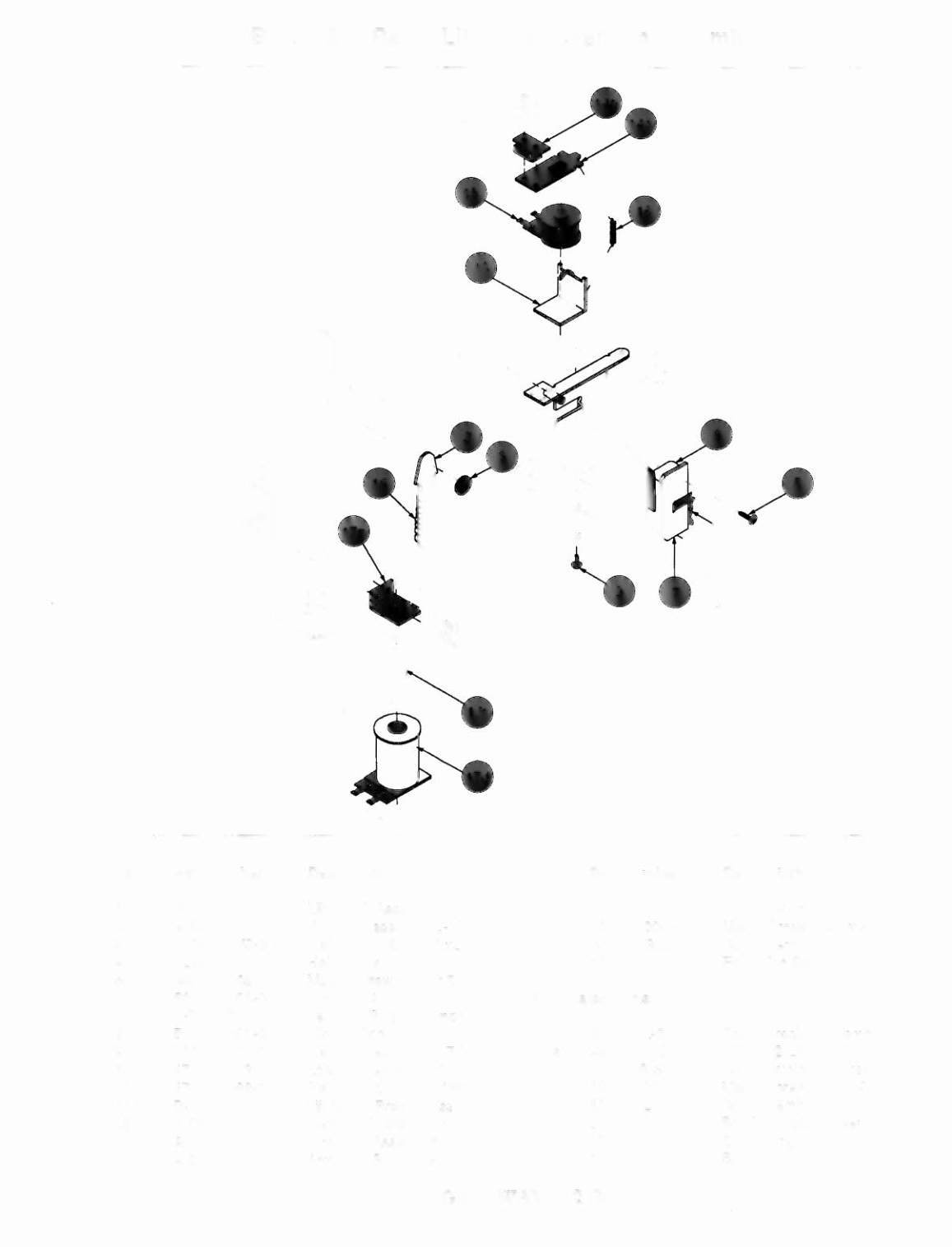

8-12576 Ramp Lifting Mechanism Assembly
Item Part Number
Description
Item Part Number
Description
1.
A-12577
Lift Crank Assembly
14.b)
01-8390
Lift Crank Lock
2.
A-8050
Plunger Assembly,
2-1/4"
c)
4006-01003-03
Mach. Screw, 6-32 x
3/16
3.
4700-00073-00
Flatwasher, 9132x1
12x21
gao
15.
SM1-28-900-DC Coil Assembly
4.
12-6227
Hairpin Clip
16.
10-363
Extension Spring
5.
4004-01003-10
Mach. Screw, 4-40 x
5/8
6.
5070-06258-00
Diode 1N4001, 1.0A.
Associated Parts:
7.
A-7438-1
Terminal Strip Assembly
8.
5647-12001-00
Microswitch
17.
B-9362-L-2
Coil & Bracket Assembly
9.
4008-01021-07
Mach. Screw, 8-32 x
7116
a)
4406-01119-00
Nut, 6-32 ESN
10.
4701-00003-00
Lockwasher, #8 Split
b)
01-8-508-S
Coil Retaining Bracket
11.
4700-00089-00
Flatwasher,11/64x7/16x16ga.
c)
4006-01017-06
Mach. Screw, 6-32 x
3/8
12.
B-11302
Lift Mech. Bracket
Assy
d)
AE-26-1200
Coil Assembly
13.
A-6892
Frame & Eyelet
Assy
e)
B-7572-1
Bracket & Stop Assembly
14.
A-11139
Armature Assembly
f)
03-7066
Coil Tubing
a)
A-8936
Armature Sub-Assembly
18.
10-128
Spring
THE GETAWAY
2-29
EM,
)§
~14a
~
J.
\
\ .• ...(16)
'r~
13
/
/
8
