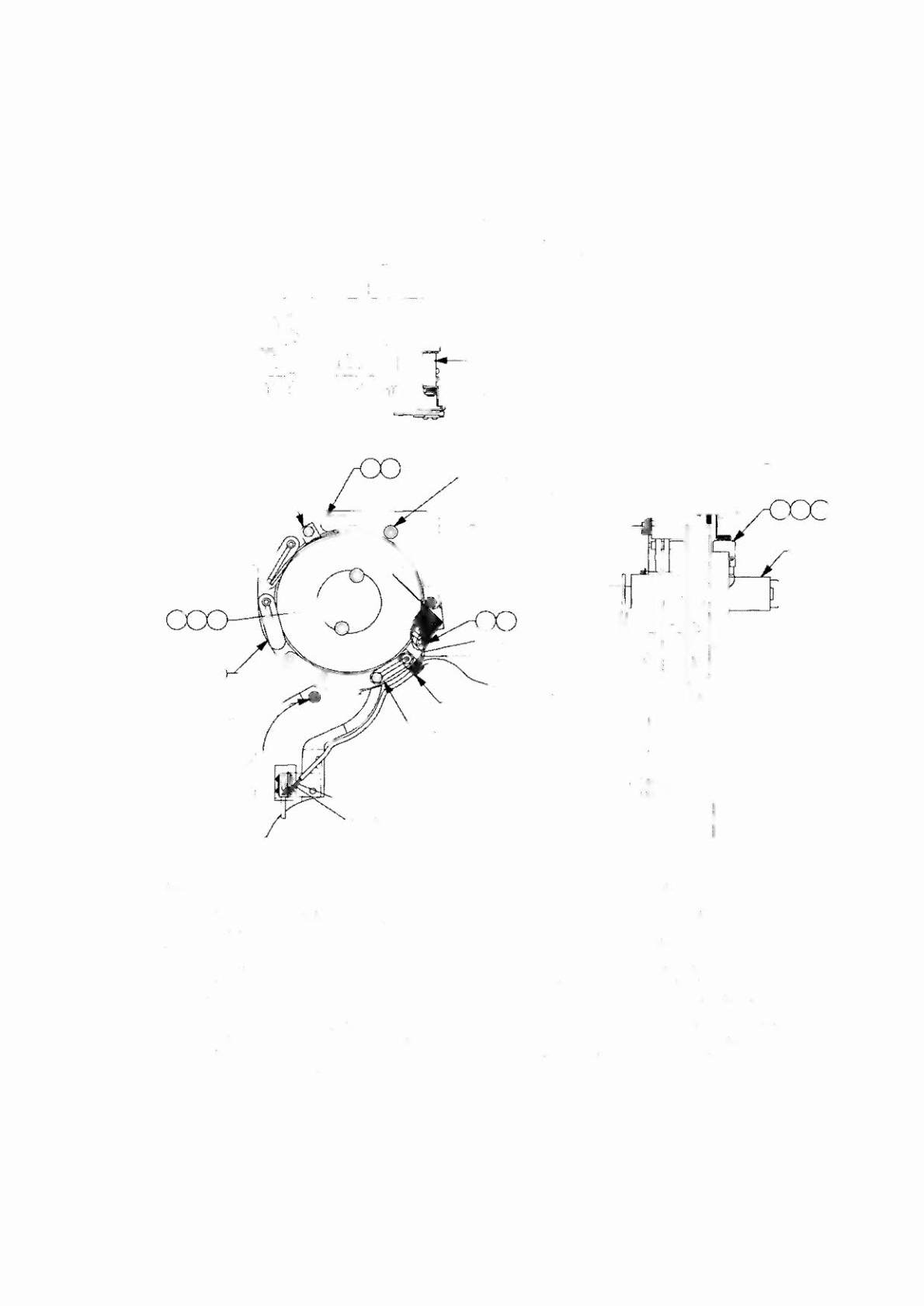

A-17978 Bracket Assembly
L
REO (TO REO ~OT ON ITEM 3)
-~~====c[l
H
a,
'B
...-{ijj)
'WHTfGRN
GRNIREO
Item Part No.
Description
Item Part No.
Description
1.
A-17977.1
Bracket Assembly
13.
4006-01168-06 Mach. Screw, #6-32 x
3/8·
2.
A-18135
Wheel Assembly
14.
4700-00011-00 Flatwasher,
11/64x 7116
x 16ga.
3.
14-7999
Motor
15.
4700-00009-00 Flatwasher,
11/64
x
7116 )(
20ga.
4.
02-4493
Post
16.
4700-00005-00 Flatwasher,
9/64
x 7/16)( 20ga.
5.
A-11541
Socket & Bulb
17.
4406-01119-00 Nul #6-32 ESN
S.
A-185G6
Ramp Assembly
18.
4408-01119-01 Nut #8-32 ESN
7.
23-6556
Bumper Sleeve, Black
19.
A-18942-6
Playfield Plastic Assembly
8.
23·6694·5
Ring, Black
20.
31-1977·24
P\ayfield Plastlc
9.
03-7655-4
Clamp Cable,
1/4"
21.
A-19098
Bail Popper Exit Sw. Assembly
10.
H-18219-3
Flasher Cable Assembly
22.
H-19142
Exit Switch Cable Assembly
11.
H·18600-6
Motor Cable Assembly
23.
4008-01041-06 Mach. Screw, 8-32 x
318'
12.
4008-01168-10 Mach. Screw,
#8-32
x
5/8'
2-29
