Lower Playfield Parts
Item Part No.
Description
1,
A-15849-L-2 Flipper Assembly
2.
A-15849-R-2 Flipper Assembly {2}
3.
A-18753
Outhole Ball Trough Assembly
4 .
01-11781
Leg Support (2)
5.
01-9211
Plfd. Hanger Bracket Assy. (2)
6.
A-H8ll
Kicker Arm (Slingshot) Assy.
8-9362-L-2
Coil & Bracket Assembly
7.
A-19097-1
Diverter Assembly, Right
8 .
A-18553
3-Lamp PCB
9.
A-l?932
Disappearing Post Assembly
10 .
A-laS60
to-Lamp PCB
11.
A-17749.1-2
Plfd. Slide Mechanism, Right
12.
A-941S-2
Jet Bumper Coil Assembly (3)
8-9414-2
Jet Bumper Assembly (3)
13.
A-l?796
Ball Gate Actuator (2)
14.
A-17624
3-Lamp PCB
15.
A-15769-1
Ball Popper Assembly
~
16.
A-17978
Motor
&
Bracket Assembly
17.
A-18559
a-lamp PCB
18.
A-17749.1-1
Pltd. Slide Mechanism, Left
19.
A-185S?
s-Larnp PCB
20.
A-18556
4-lamp PCB
21.
A-16032-3
3-Bank Drop Target Assy.
22 .
A-tS07S
Diverter Asse mbly
23.
A-18S61
13-Lamp PCB
24.
A-17B11
Kicker Arm (Slingshot) Assy.
8-9362-R-3
Coil & Bracket Assembly
25 .
A-19097-2
Diverter Assembly, Left
26.
A-15576
7-Switch Opto PCB
27.
A-18SS4
3-Lamp PCB
28.
A-18555
5-Lamp PCB
29.
A-18SSe
6-Lamp PCB
30.
A-18188
4-Bank Drop Target Assembly
31.
A-15542
Motor EMI PCB Assembly
32.
A-18823
Back Panel Asse mbly

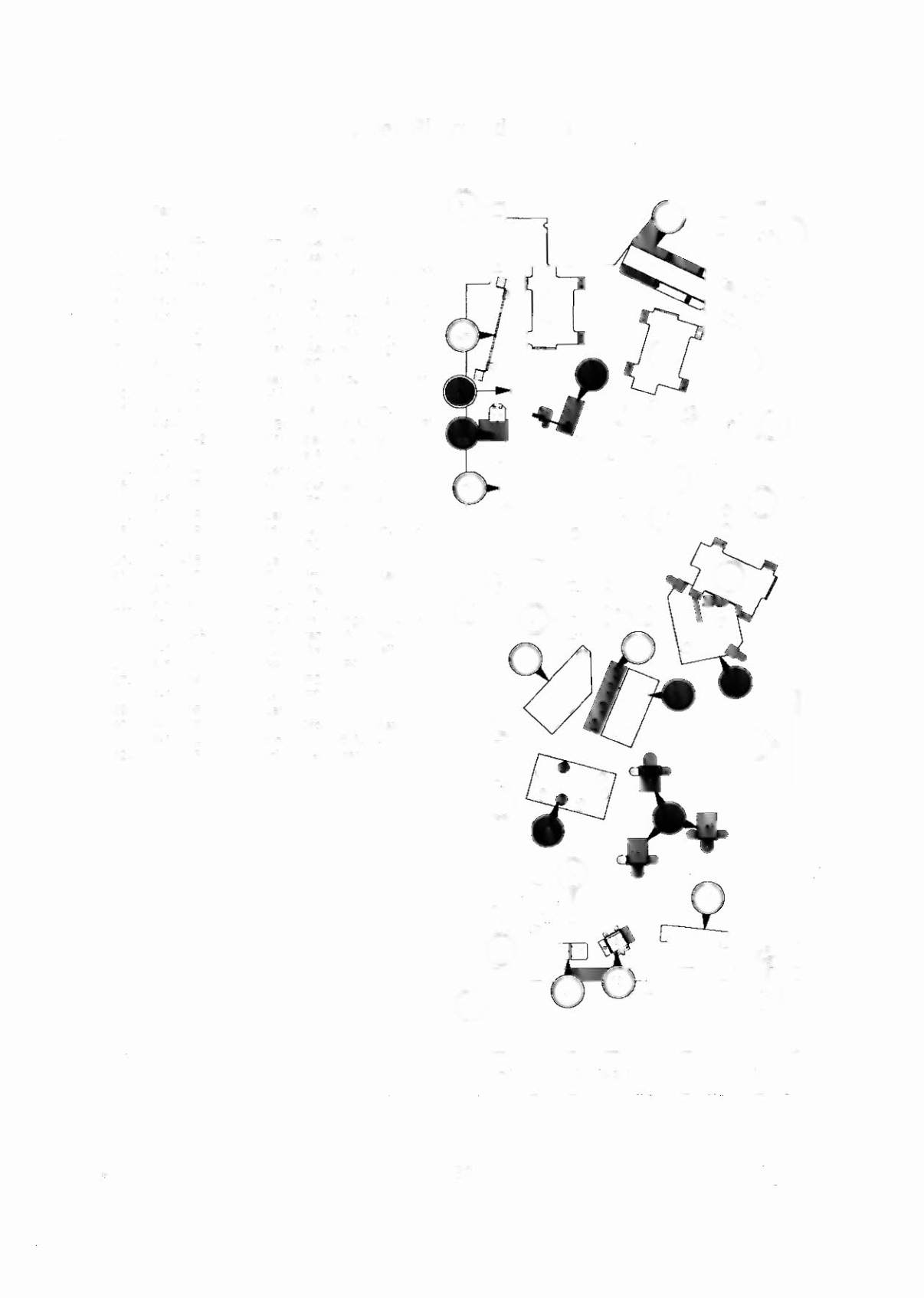

Underside of playtield, viewed in raised position
2-38
