Ball Trough Switches
(Viewed from underside of playfield to show locations)
5070-09054-00 01-8652 5647-12693-08
5647-00957-00
Micr08witch
0llI1'---A-8645
Sw. Wire
&
Bracket
A-8924
Mounting Plate
A-5844-44
5647-09957-00 RM-21-03
Sw. Wire & Bracket
Microswitch
Tubing

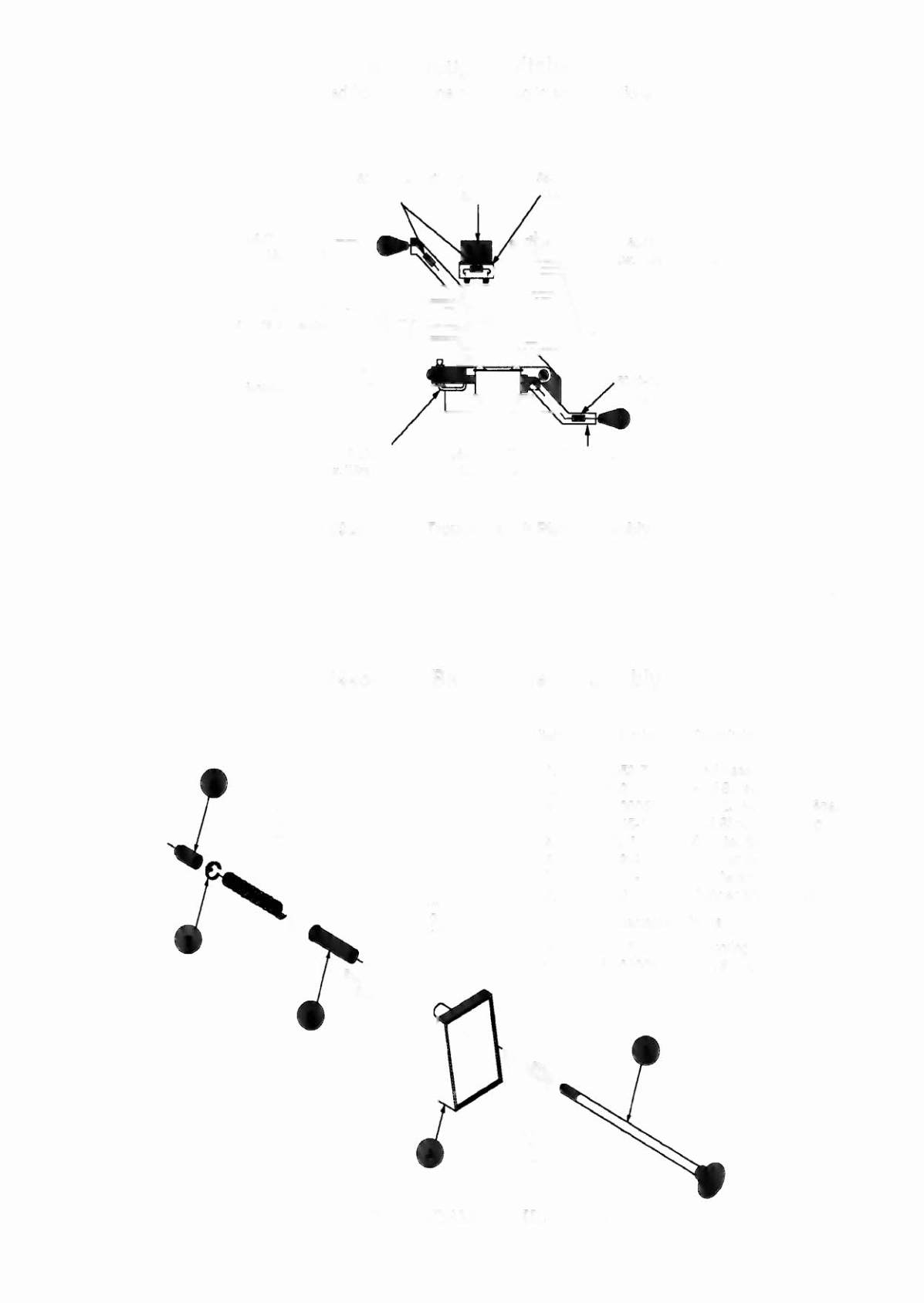

B-8925 Ball Trough Switch PlateAssembly
B-12445-4 Ball Shooter Assembly
Item Part Number
Description
1.
2.
3.
4.
5.
6.
7.
8.
20-9253-7
10-149
4700-00051-00
21-6645-1
03-7357
10-148-4
20-8718-1
23-6327
Rod Assembly
Rod Spring
FW,
25164
x
5/8
x
16ga.
Ball Shooter Housing
Shooter Sleeve
Shooter Spring
·C·
Retaining Ring
Rubber Shooter Tip
Associated Parts
9.
01-3535
Mounting Plate
10.
4010-01006-10 MS, #10-32 x
5/8
The ADDAMS FAMILY 2-35
