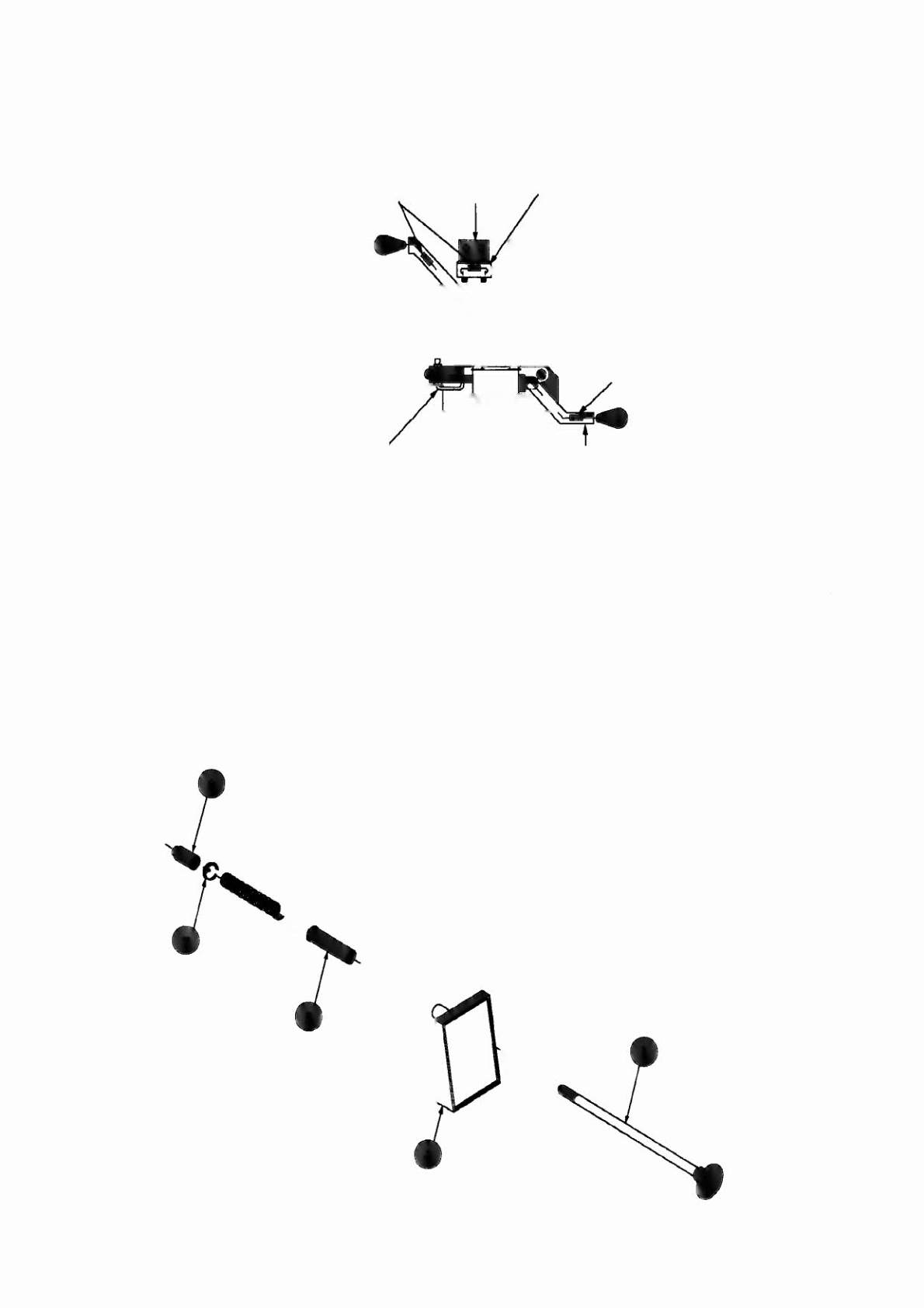

Ball Trough Switches
(Viewed from underside of playfield to show locations)
5070-09054-00 01-8652 5647-12693-08
5647-09957-00
MicroBwitch
f('OC>Tf1looo-----A-8645
Sw. Wire & Bracket
A-8924
Mounting Plate
A-5844-44
5647-09957-00 RM-21-03
Sw. Wire & Bracket
Microswitch
Tubing
B-8925 Ball Trough Switch PlateAssembly
B-12445-4 Ball Shooter Assembly
Item Part Number
Description
1.
2.
3.
4.
5.
6.
7.
8.
20-9253-7
10-149
4700-00051-00
21-6645-1
03-7357
10-148-4
20·8718·1
23·6327
Rod Assembly
Rod Spring
FW, 25/64 x 5/8 x 16ga.
Ball Shooter Housing
Shooter Sleeve
Shooter Spring
·C·
Retaining Ring
Rubber Shooter Tip
Associated Parts
9.
01-3535
Mounting Plate
10.
4010-01006-1 0 MS, #10-32 x 5/8
The ADDAMS FAMILY 2-35
