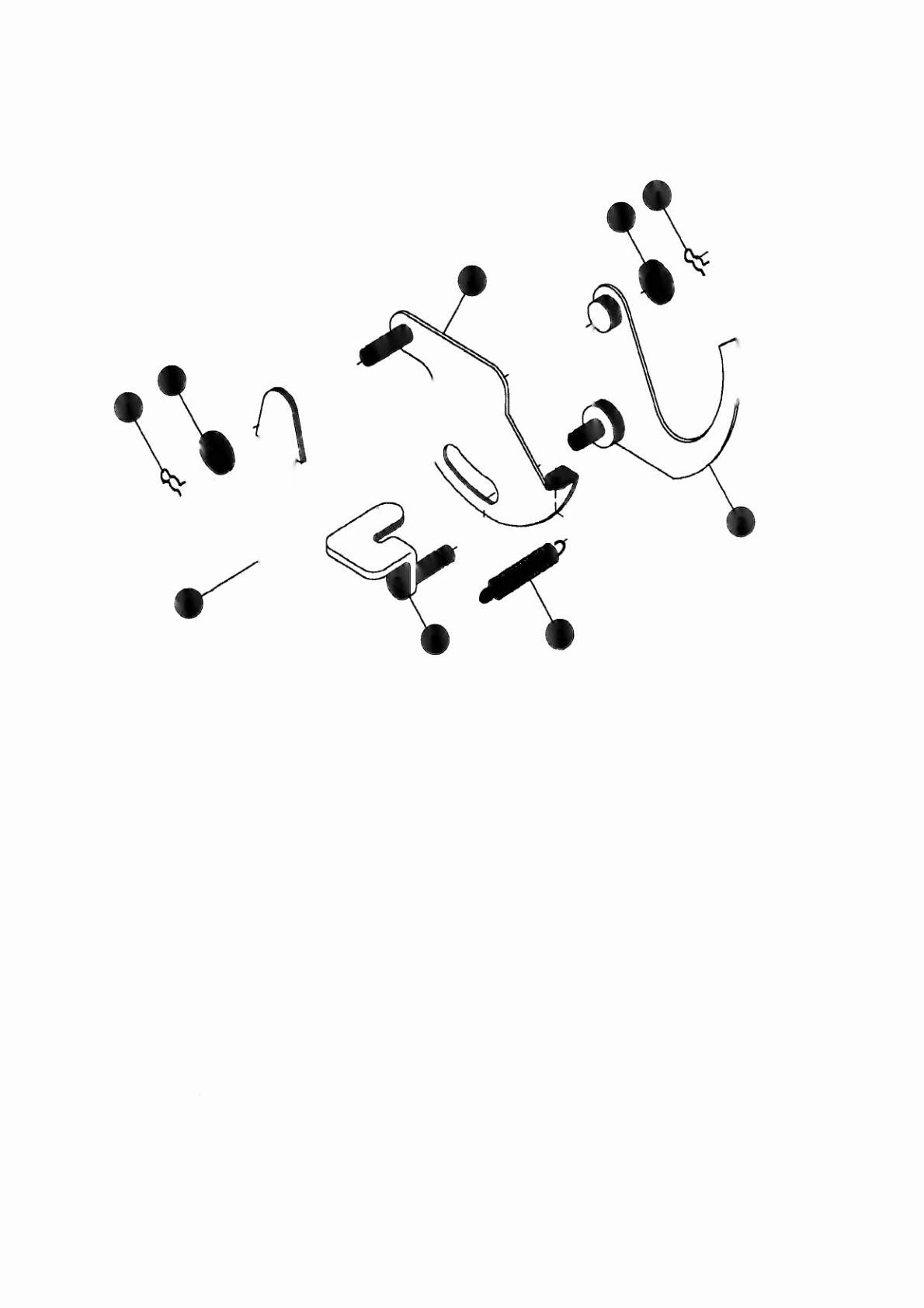

C-9638 Ball Shooter Lane Feeder
Associated Parts
Item Part Number
Description
(Not Shown)
Item Part Number
Description
1.
12-6227
Hair Pin Clip
2.
A·8247
Eject Cam Assembly
10.
B-9362·L·2
Coil
&
Bracket Assy.
3.
10-362
Ejector Spring (Plain)
8·7572·1
Bracket
&
Stop Assy.
4.
A-6949-L
Spring Plate Assembly
01-8-508-S
Coil Retaining Bracket
5.
A-8050-1
Coil Plunger Assy,
2·1/8"
4006-01017-06 Mach. Screw, 6·32 x
3/8
6.
4700·00030-00 Flatwasher, 17/64 x112x 15ga.
4406-01119-00 Nut, 6-32 ESN
7.
4700·00103·00 Flatwasher,
17/64 x1/2
x 28ga.
AE·26·1200
Coil Assembly
8.
A·8268
Mounting Bracket Assembly
03·7066
Coli Tubing
11.
10-128
Spring
The ADDAMS FAMILY
2-18
