A-17S40-1

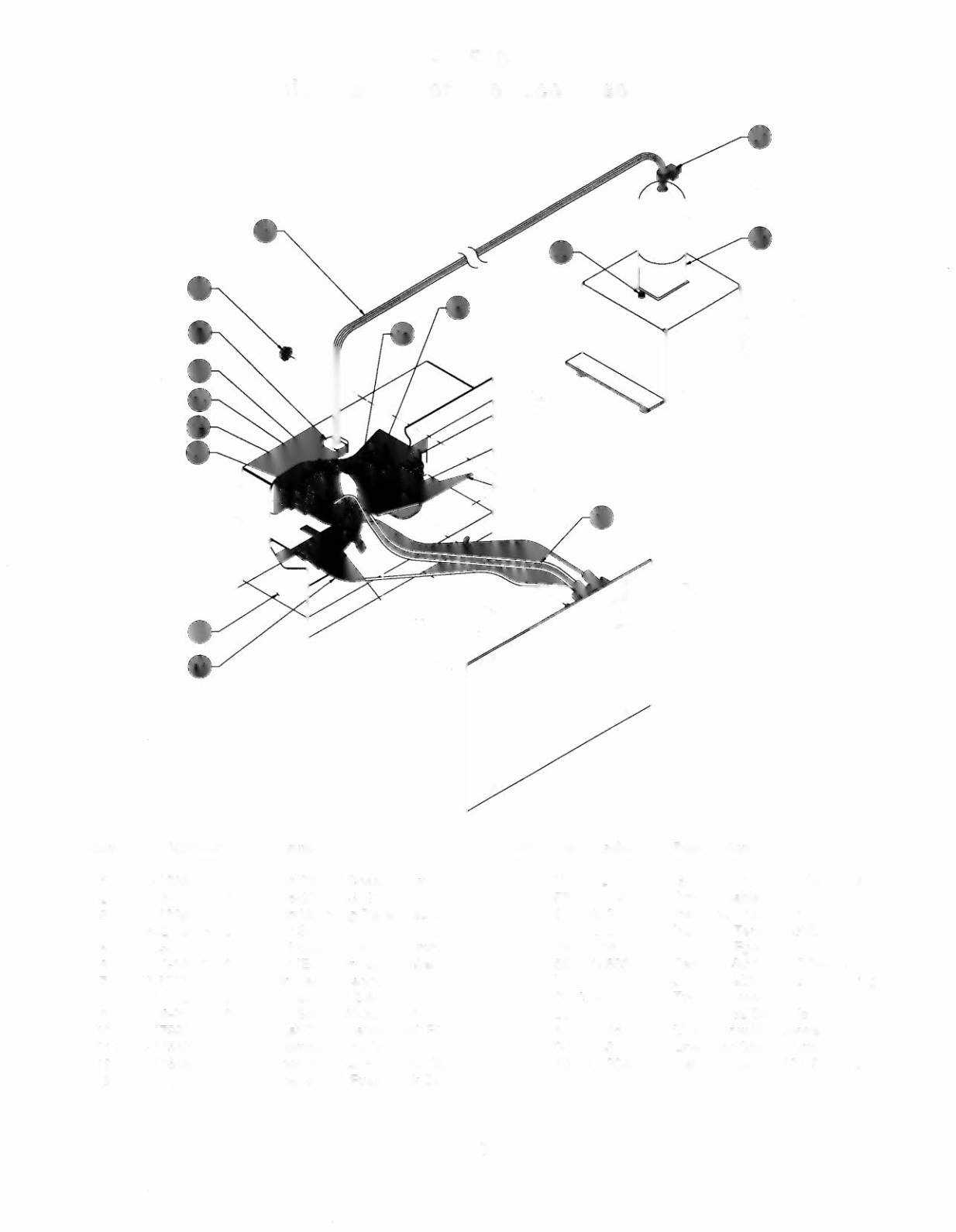

Universal Power Interface Assembly
(/)
o
(/)
Item Part Number
Description
Item Part Number
Description
1 04-10292
Power Control Chassis Box
14 H-17542
Ground Jumper Grn/Yel Cable
2 4406-01128-00 Nut #6-32 KEPS (3)
15 5797-13940-01
Jumper Cable
3 01-12294
Switch Mounting Plate Assembly
16 01-10623
Insulator, Thermistor
4 5642-13935-00 Power Switch
17 01-12299
Insulator, Terminal Strip
5 5733-14734-00 Fuse Holder Panel (5 x 20mm)
18 RM-21-06
#18 Vinyl Fgls
6 5851-13867 -00 Outlet-IEC Conn. 237 Socket
19 5822-13865-00
Terminal Strip 3-CKT 2-Mtg.
7 03-8712
Strain Relief Bushing
20 H-18050
Jumper Cable, Transformer Prog.
8 5016-12978-00 Thermistor 8A., 2.5R25
21 03-7933
Ty-Wrap Nylon
9 4006-01 003-1 0 Mach. Screw, #6-32 x 5/8"
22 20-9682-1
Boot w/9-32 Dia. Hole
10 H-17992
Jumper Cable Neutral Sw/1 FC
23 5102-13864-00
Line Filter w/IEC Connector
11 H-17543
Hot Jumper Black Cable
24 04-10293
Line Filter Chassis Box
12 H-17546
Jumper Interface Hot Black Cable
25 4004-01003-05
Mach. Screw, #4-40 x 5/16" (2)
13 H-17545
Jumper Switch/Fuse Black Cable
