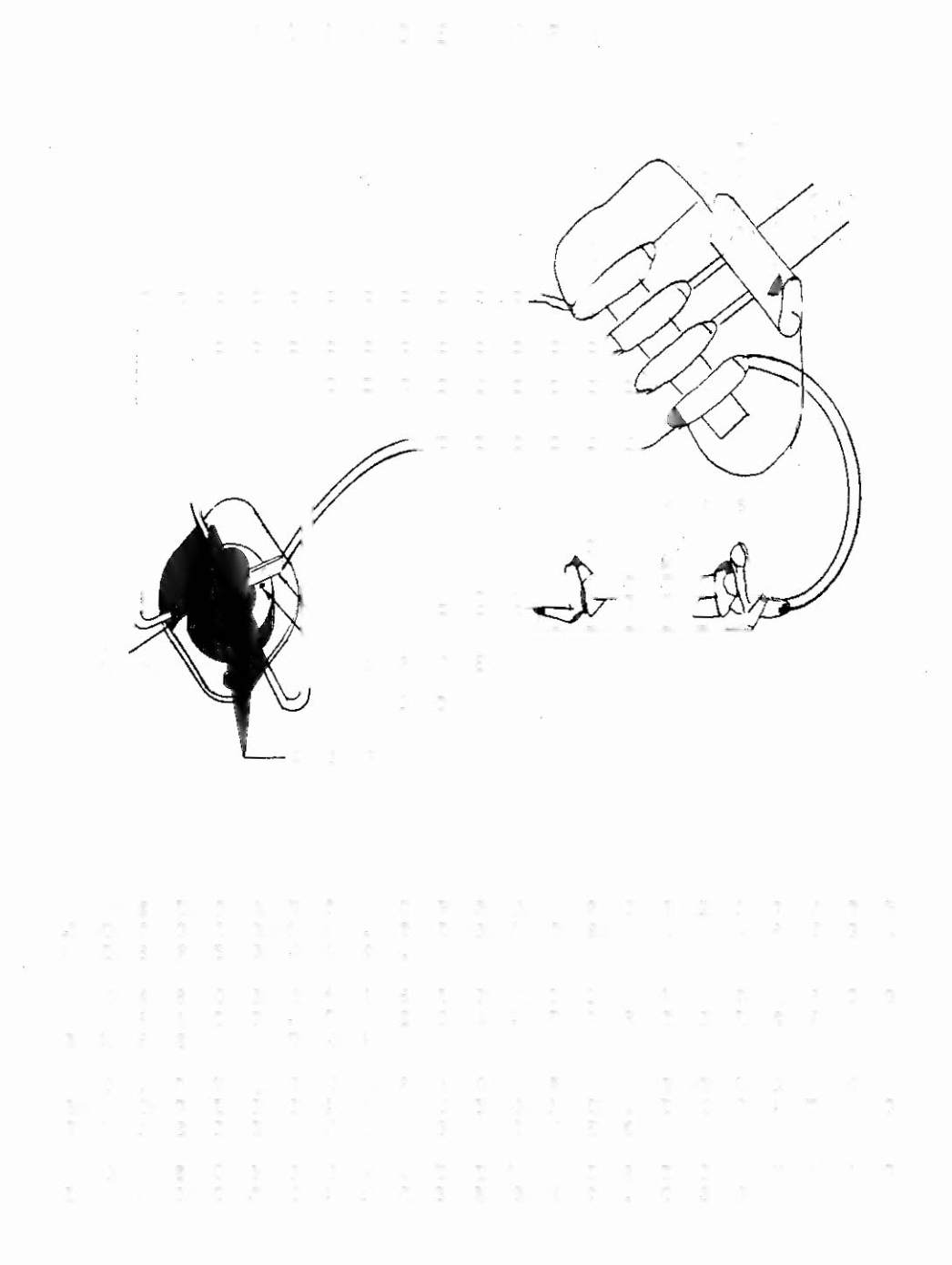

SILICON BRIDGE
RECTIFIER
10 AM P FUS
F:"
, ~
D.C. POSITIVE
THB FUNCTION OF THE RECTIFIER AND CAPACITOR IS TO CONVERT THE
ALTERNATDlG CURRENT (A.C.)
TO DIRECT CURRENT (D.C.),
SUPPLynm D.C.
TO THE BUMPERS, KICKERS ETC.
THE BRIDGE RECTIFIER SHOULD
PRACTICALLY
NEVER NEED REPLACING,
AS IT IS RATED WELL OVER THE VOLTAGE AND CURRENT REQUIREMENTS OF
THE COMPONETS IT SUPPLIES.
IF .• HOWEVER,
THE
15
AMP
24
VOLT FUSE ON THE MECHANISM PANEL
OPENS,
IT
COULD
BE DUE TO A
FAULTY
RECTIFIER.
DISCONNECT TUE A.C.
INPUT TO RECTIFIER,
REPLACE FUSE,
AND RECHECK.
IF
THE 10 AMP FUSE LOCATED NEXT TO THE RECTIFIER OPENS,
CHECK
ALL
D.C.
COMPONETS I.E.
BUMPERS,
KICKERS ETC.
FOR SHORTS.
