A-22724-1

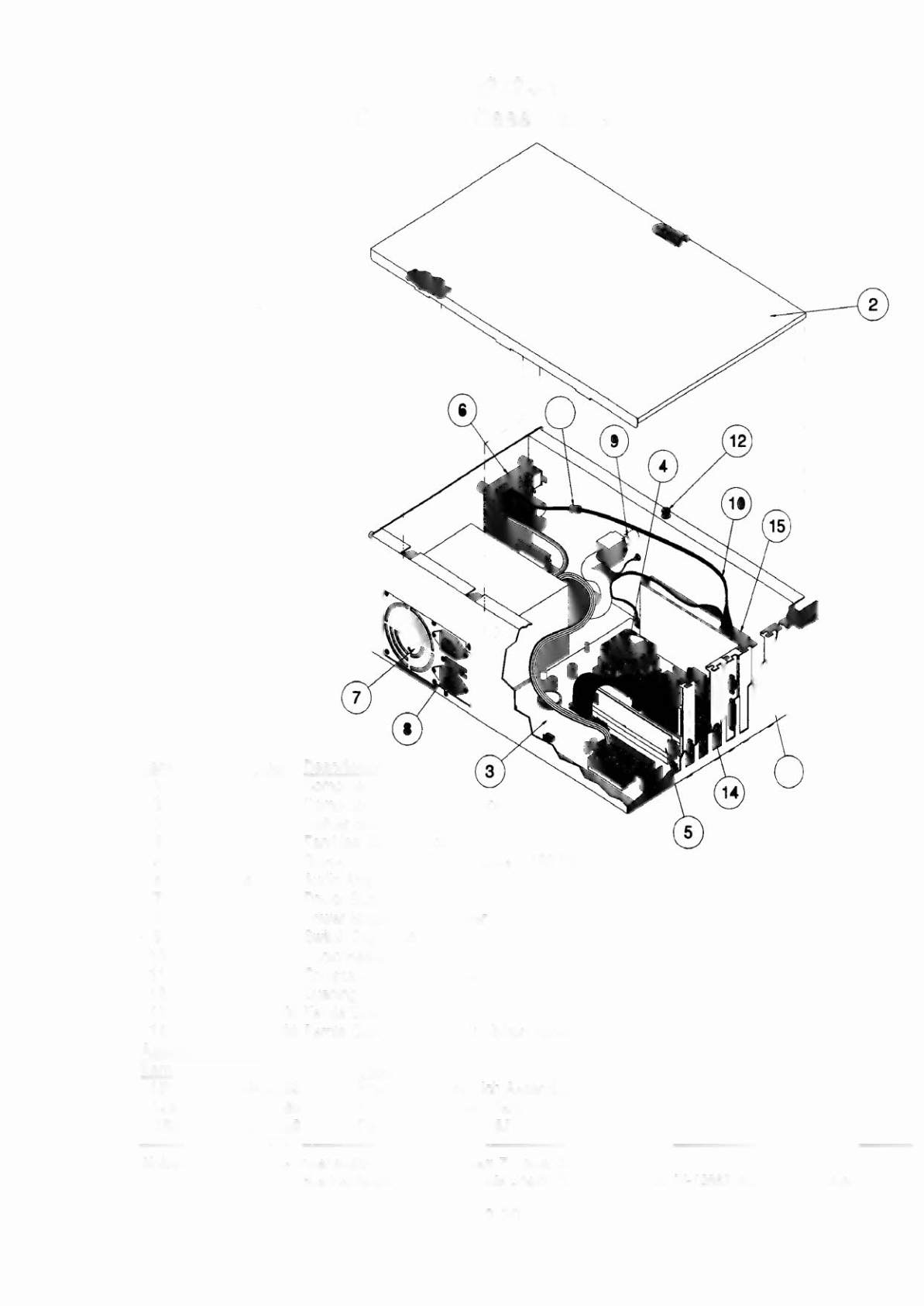

Computer Case Assembly
7
12
ll!!!!
Part Number Description
1 04-12370.5 ComputerCase
2 A·23301
ComputerCase Top Assembly
3 04-12604 MotherBoard
4 20-10698 Fan/HeatSink - Socket 7
5 04-12618 SORAMDIMMMemoryModule
-168
Pin
6 04-12867 AudioAmp Assembly
7* 20-10578 PowerSupply
8 01-15195
PowerSupply Switch Cover
9 03--7601-4 SwitchCap (Red)
10 H·22978
Audio/ResetCable
11 01·15165 ComputerCase Slot Cover
12 02·5477
Bushing
13 5556-16449-00 FerriteBushing,
.37510
14 5556-16364-00 FerriteClamp, 26 PinMax Ribbon cable
Associated Parts
Item Part Number
15** A-22994-50069
15a A-23171-50069
15b A-22995-50069
Description
PrismCard SandwichAssembly
ProgrammedPrismCard
Daughter CardwlROM
Notes: ·Computer case power switch is supplied with item
7,
Power Supply.
"To update Prism Board software, use Prism Update Board (PUB), part number 04-12863 (supplied Separately).
2-29
