A-23293

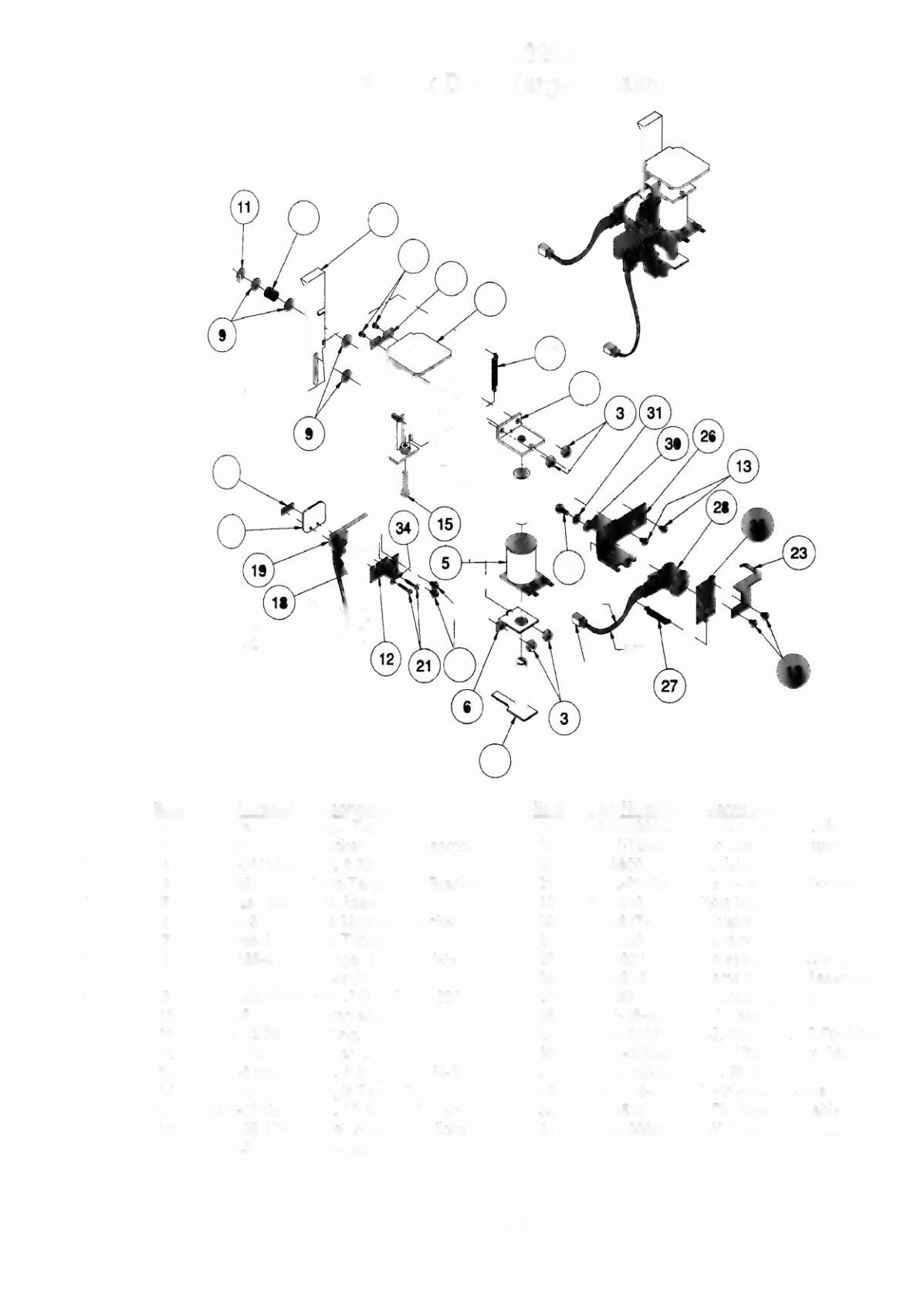

1 Bank Drop Target Assembly
Hem Part Number Description
1 03-8750
Flush Target
2 A-14617
Bracket
&
PostAssembly
3 44OM1119-01 Nut, 8-32 ESNA-NTM
4 A-11397
Drop Target Stop Bracket
5 AEl-26-1200 Coil Assembly
6 01-8413
Coil MountingBracket
7 03-7066-4 Coil Tubing
8 A-11388-2 Plunger& Reset Plate
Assembly
9 470Q.00072-00FW, .256
x
.500
x
.032
10 10-392
CompressionSpring
11 20-8712-25 E-Ring,
y.."
Shaft
12 01-10183 Switch Bracket
13 4006-01003-04MS, 6-32
x
y...
P-PH-S
14 03-8034
Single TargetStop
15 4010.01025-14MS, 10-32
x
7/8·
P-RH
16 07-6688-17N Rivet,
5/32
x
liS"
Nickel
17 10-433
ExtensionSpring
Hem Part Number Description
18 5070-09054-00 Diode, 1N4004 1.0A
19 5647-12693-31 Sub-Mini Micro Switch
20 01-8600
Insulator
21 4002-01105-10 MS, 2-56 x 5/8" P·PH-S
22 01-8240
PlateNut, 2-56
23 01-8647·L Actuator
24 03-8630
Actuator Guide
25 A-15821
ArmatureSub-Assembly
26 A-14913
Frame
&
Eyelet Assembly
27 10-363
ExtensionSpring
28 8111-26-600 Coil Assembly
29 4008-01021-06 MS, S-32
x
3/8" P-RH Brass
30 4700-00089-00
FW,
.172
x
.437
x
.062 Brass
31 4701-0D003-00
LW, #8
Split
32 H-2177&-4 2-Pin Switch Cable
33 H·l9523
2-Pin Solenoid Cable
34 4700-00003-00 FW,
liS
x
9/32
x
1/32"
2-19
