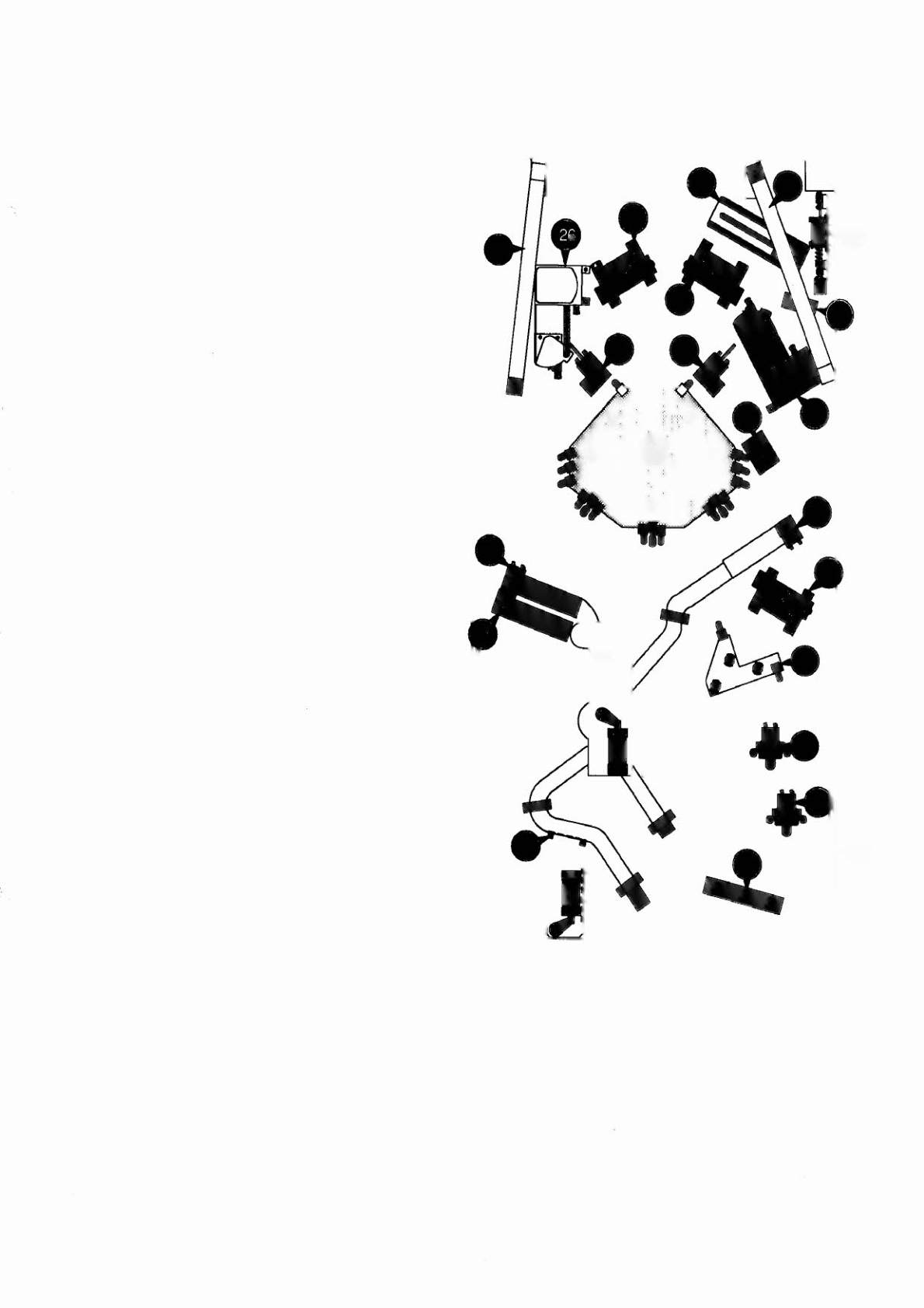

LOWER PLAYFIELD PARTS LOCATIONS
lWn
Part Number Descdptlon
1.
01-9211
Plfd. Hanger Bracket (2 Used)
2.
A-16765
Outho!e Ball Trough Assembly
3.
A-17558
Leg Support (2 Used)
4.
A-16757
Catapult Assembly
5.
A-15849-R-2 Flipper Assembly, lwr. Right
6.
A-16922
Prox Sensor II Assembly
7.
B-12665
Kicker Arm (Slingshot) Assy., Right
B-9362-R-3 Coil
&
Bracket Assembly
10-128
Spring
8.
A-17220-R U-Gun Motor Bracket, Right
9.
A-15542
Motor EMI (2 Used)
10.
A-17049-1
Ball Popper Assembly
11.
A-17356
26-lamp Board Assembly
12.
A-1S849-R-2 Flipper Assembly, Upper Right
13.
A-17013
5-Lamp Board Assembly
14.
A-17012
6-lamp Board Assembly
15.
A-9415-2
Jet Bumper Coil Assembly
16.
A-16637-2
Plfd. Slide Mechanism, Right
17.
A-15849-l-2 Flipper Assembly, lwr. Left
18.
A-17014
3-lamp Board Assembly
19.
A-14615
1-Bank Drop Target Assy.
20.
A-16763
Divertor Assembly
21.
A-16637-1
Plfd. Slide Mechanism, Left
22.
A-16998
16-0pto Board Assembly
23.
A-17078
U-Trough Assembly
24.
A-17049
Ball Popper Assembly
25.
A-17049-1
Ball Popper Assembly
26.
A-17220-L
U-Gun Motor Bracket, Left
27.
B-12665
Kicker Arm (Slingshot) Assy., Left
B-9362-l-2
Coil
&
Bracket Assembly
10-128
Spring
28.
01-11860
Shield Bracket
