A-17234

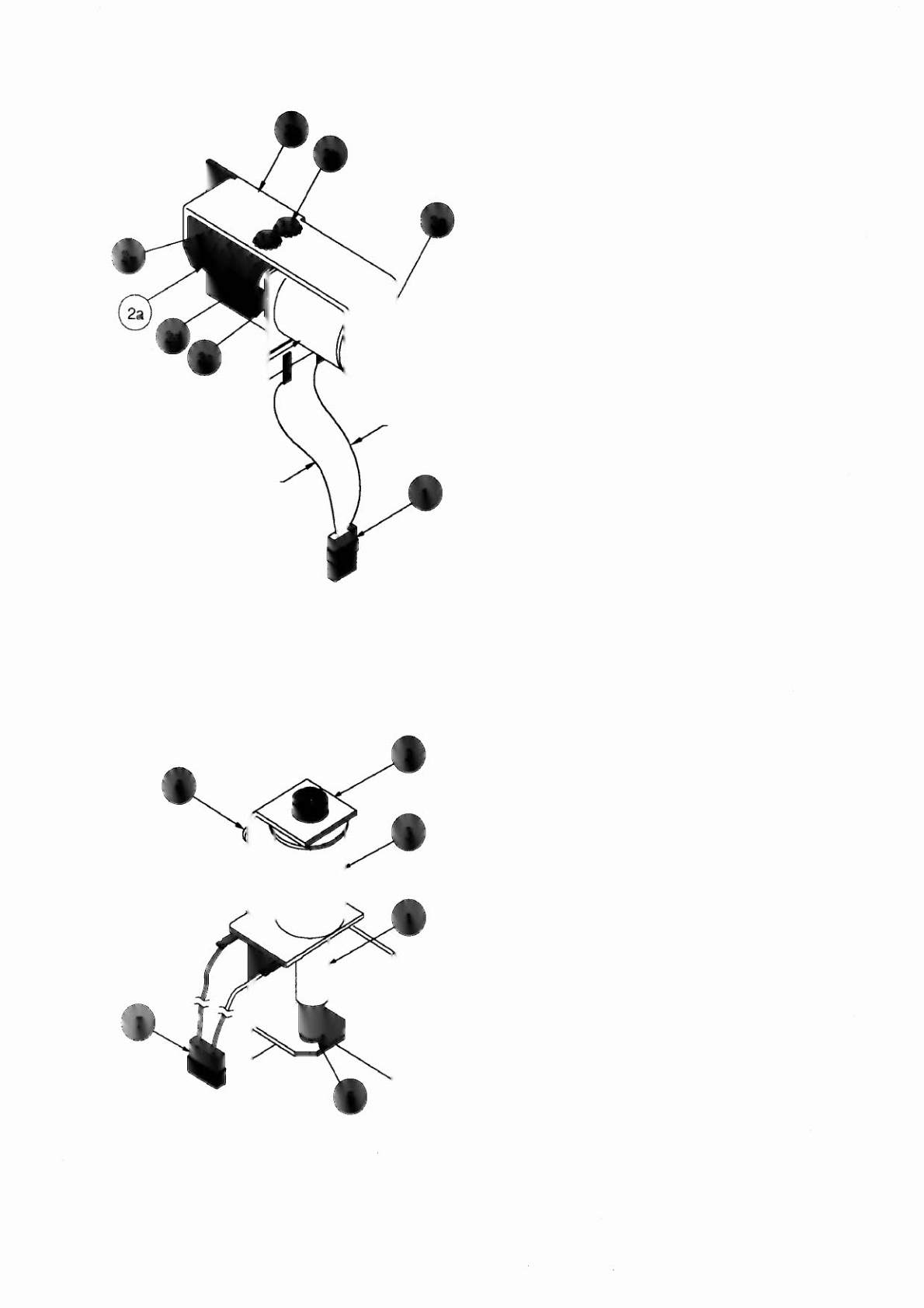

Bottom Arch Kicker Assembly
Htm
Part Number
Description
1.
H-17237
Cable Assembly
2.
8-11873
Coil Sub-Assembly
a)
A-6306-2
Bell Armature Assembly
b)
8-7409-2
Mtg. Kicker 8racket Assembly
c)
01-8-508-T
Solenoid Bracket
d)
10-135
Solenoid Spring
e)
23-6420
Rubber Grommet
f)
AE-23-800
Coil Assembly
g)
03-7067-5
Coil Tubing
h)
4008-01017-05 Mach. Screw, #8-32 x 5/16"P-RH
B-1 0686-1
Knocker Assembly
llim
Part Number
1.
A-5387
2.
01-11273
3.
AE-23-800
4.
01-8-508- T
5.
23-6420
6.
4008-01017-04
7.
H-11835
8.
03-7067-5
,S,ilil ,ileA
THEREXT 6ERERiilnOR 2-30
Description
Coil Plunger Assembly
Mtg. Bracket Assembly
Coil Sub-Assembly
Coil Retaining Bracket
Rubber Grommet
Mach. Screw, 8/32 x 1/4"P-RH
Knocker Cable
Coil Tubing
