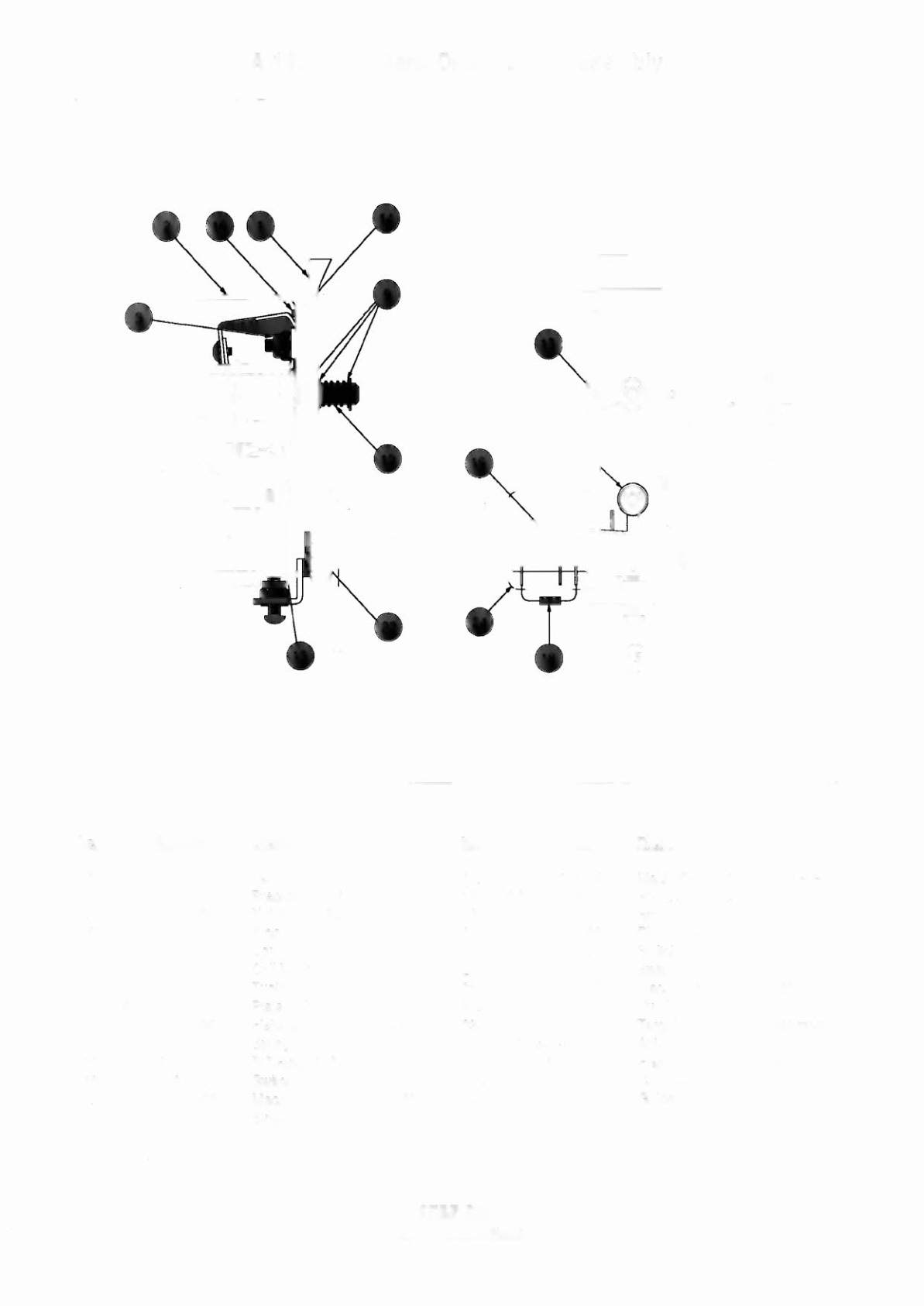

A-14615 1-Bank Drop Target Assembly
Item
part Number
Description
l1im
part Number
Description
1.
03-8750
Target - Flush
15.
4010-01025-14
Mach. Screw, 10-32 x 7/8 P-RH
2.
A-14617
Bracket
&
Post Assy.
16.
07-6688-17N
Rivet, 5/32 x 7132"
3.
4408-0119-00
Nut 8-32 ESNA
17.
10-433
Spring Extension
4.
A-11397
Stop Bracket Assembly
18.
5070-09054-00
Diode 1N4001
5.
AE-26-1200
Coil Assembly
19.
5647-12693-31
Switch
6.
01-8413
Coil Mounting Bracket
20.
01-8600
Switch Insulator
7.
03-7066-4
Tubing
21.
4002-01105-10
Mach. Screw, 2-56 x 5/8"
8.
A-11388-2
Plate
&
Reset Assembly
22.
01-8240
Nut Plate
9.
4700-00072-00
Flatwasher, 17/64 x 1/2"
23.
A-14908
Target Knock Down Assembly
10.
10-392
Spring
a) 01-8647-l
Actuator
11.
20-8712-25
"E"-Ring,
1/4"
Shaft
b) A-14913
Frame
&
Eyelet Assembly
12.
01-10183
Switch Bracket
c) SM1-26-600
Coil Assembly
13.
4006-01003-03
Mach. Screw. 6-32 x
3/16"
24.
03-8630
Guide. Actuator
14.
03-8034
Single Stop Target
