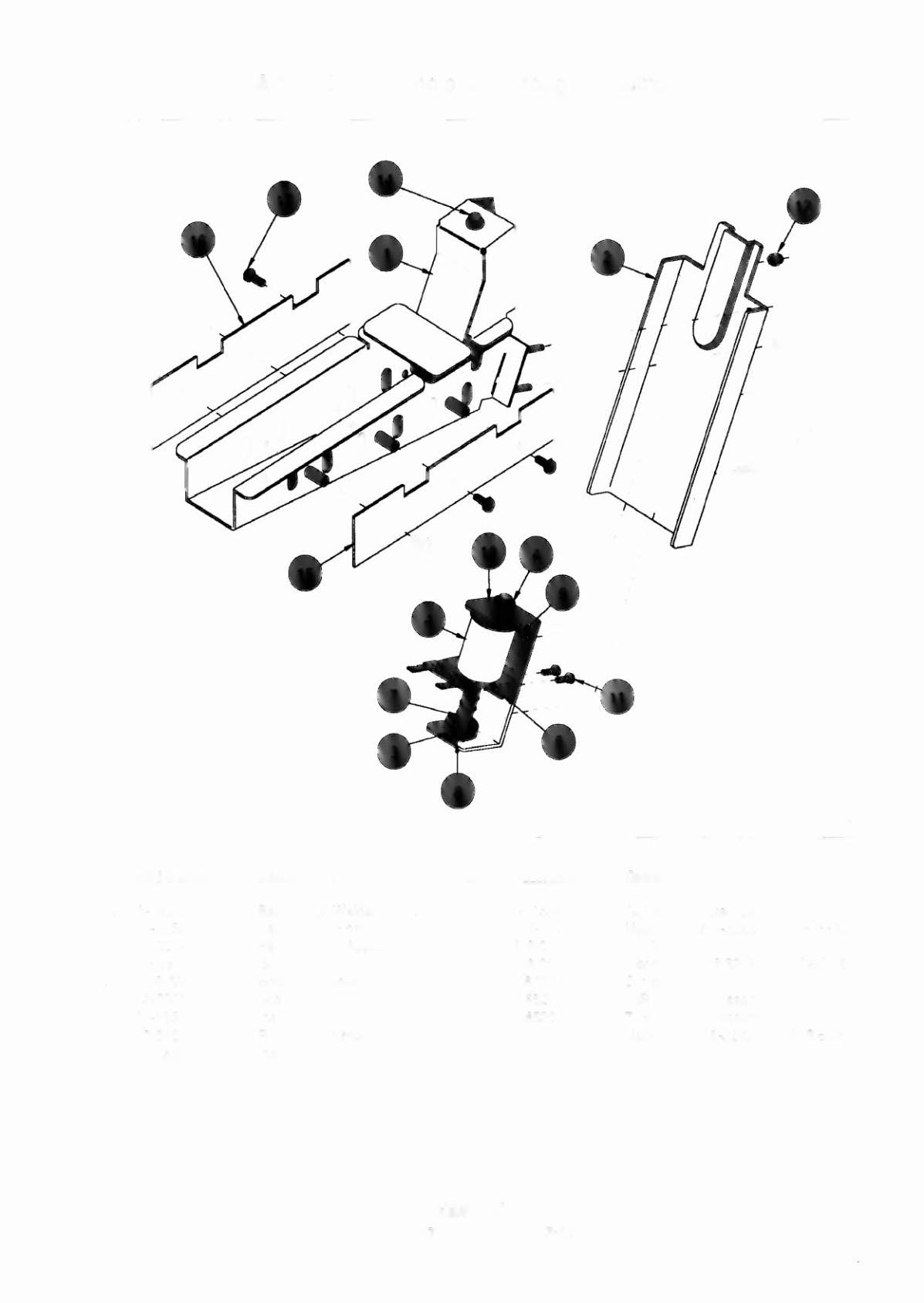

A-16765 Outhole Ball Trough Assembly
I
I
I
I
I
I
I
I
I
I
I
I
I
~~"7iI
..J
"
It!m
part Number
Descdptlon
Uml
part Number
Description
1.
A-16809
Ball Trough Welded Assy.
10.
01-11586
Coil Mtg. Bracket (8ell)
2.
01-11587
Ball Trough Front
11.
4008-01017-05 Mach. Screw, 8-32x5/16 P-RH SEMS
3.
A-6306-2
Bell Armature Asssembly
12.
4408-01119-00 Nut 8-32 ESN
4.
AE-26-1S00
Coil Assembly
13.
4008-01017 -06 Mach. Screw, 8-32x3/8 P-RH SEMS
5.
01-8-508-T
Solenoid Bracket
14.
23-6702
Bumper Plug
6.
03-7067-5
Coil Tubing
15.
A-16529
7 IR LED PCB Assembly
7.
10-135
Insulator
16.
A-16530
7 IR LED PCB Assembly
8.
23-6420
Rubber Grommet
17.
4006-01017-06 Mach. screw, 6-32x3/8 P-RH SEMS
9.
03-8523
Insulator
