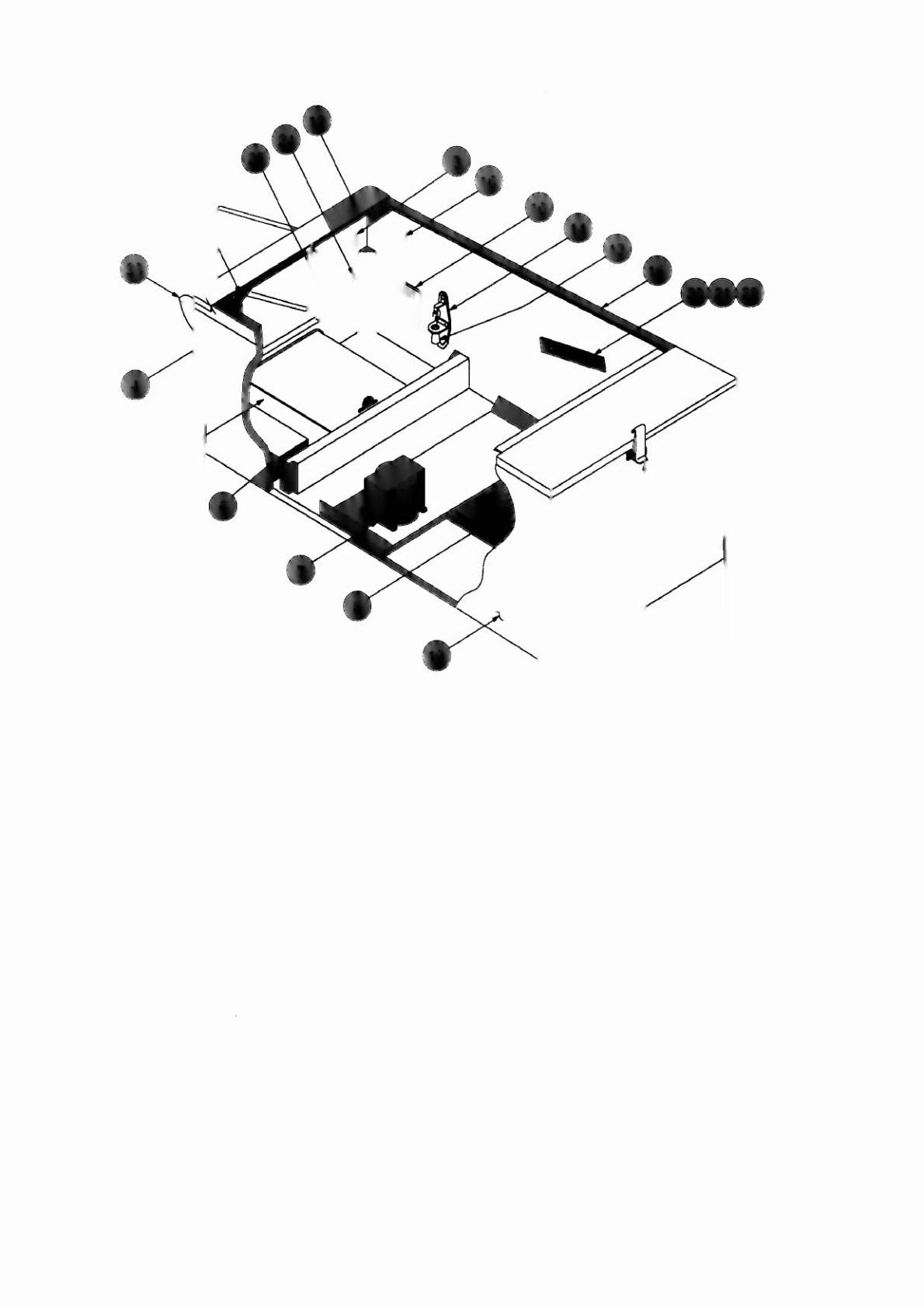

Cabinet Assembly
Item
Part Number Description
U!m
Part Number
Description
1.
A-16773
Lever Guide Assembly
18.
A-12359-3
Side Molding Assy. (2 Used)
2.
20-9663-17
Push Button - Green
19.
11-1115
Wood Cabinet
3.
20-9663-16
Start Button - Yellow
20.
01-11408
Spacer (2 Used)
4.
A-16883-4
Flipper Button - Red (2 Used)
21.
02-4329-1
Pivot Nut,
7/8"
(4 Used)
5.
A-17445-1
Cashbox Assembly
22.
02-4352
Pivot Bushing (2 Used)
6.
*
Line Filter Assembly
23.
A-14747
Gun Handle Assembly
7.
5610-13491-00 WPC Transformer,
115/230v
24.
01-11400
Leg Plate (4 Used)
8.
5555-12929-00 Speaker, 4Q, 6", 25w
25.
A-17175-1
Cable
&
Interlock Switch Assy.
9.
20-9347
Togg Ie Latch
26.
A-14754-1
Firing Pin Switch
&
Cable Assy.
10. A-17051-1
Coin Door Interface Bd.
11. C-10843-2
Metal Leg Assembly
• Miscellaneous Parts:
12. A-16055
Front Molding Assembly
13.
20-6502-A
Plum Bob
08-7028-1
Tempered Playfield Glass,
14.
A-15361
Tilt Mechanism Assembly
Wide Body: 23.75" x 43"
15.
*
Cordset
20-6500
Steel Ball,
1-1/16"
(6)
16. A-17316
Opto Flipper Assembly (2 Used)
01·10797
Playfield Support Bar, 18" Long
A-16384
Opto Flipper
01-5148
Clip Bracket
17. 01·10714
Line Cord Cover
08·7377
Leg Adjuster, 3"
*
See Application Chart (p.2-4).
A-17195
Tilt Switch Assy. wlCable
.5Tilil TilEn
THE nEXT IiEnERiI"DR Z-3
