MAINTENANCE INFORMATION
Figure 3 shows the two main lubrication points of Ihe Ball Shooter lane Feeder (also the Righi Eject
Hole device,which utilizes Iha same mechanism).
The shaded arrows show the directions in which Ihe
Ball 'Shooler Lane Feeder and other parts
of
its related assemblies 'can be adjusted
for
proper
operation.
TOP VIEW
LU8E
POI~TS

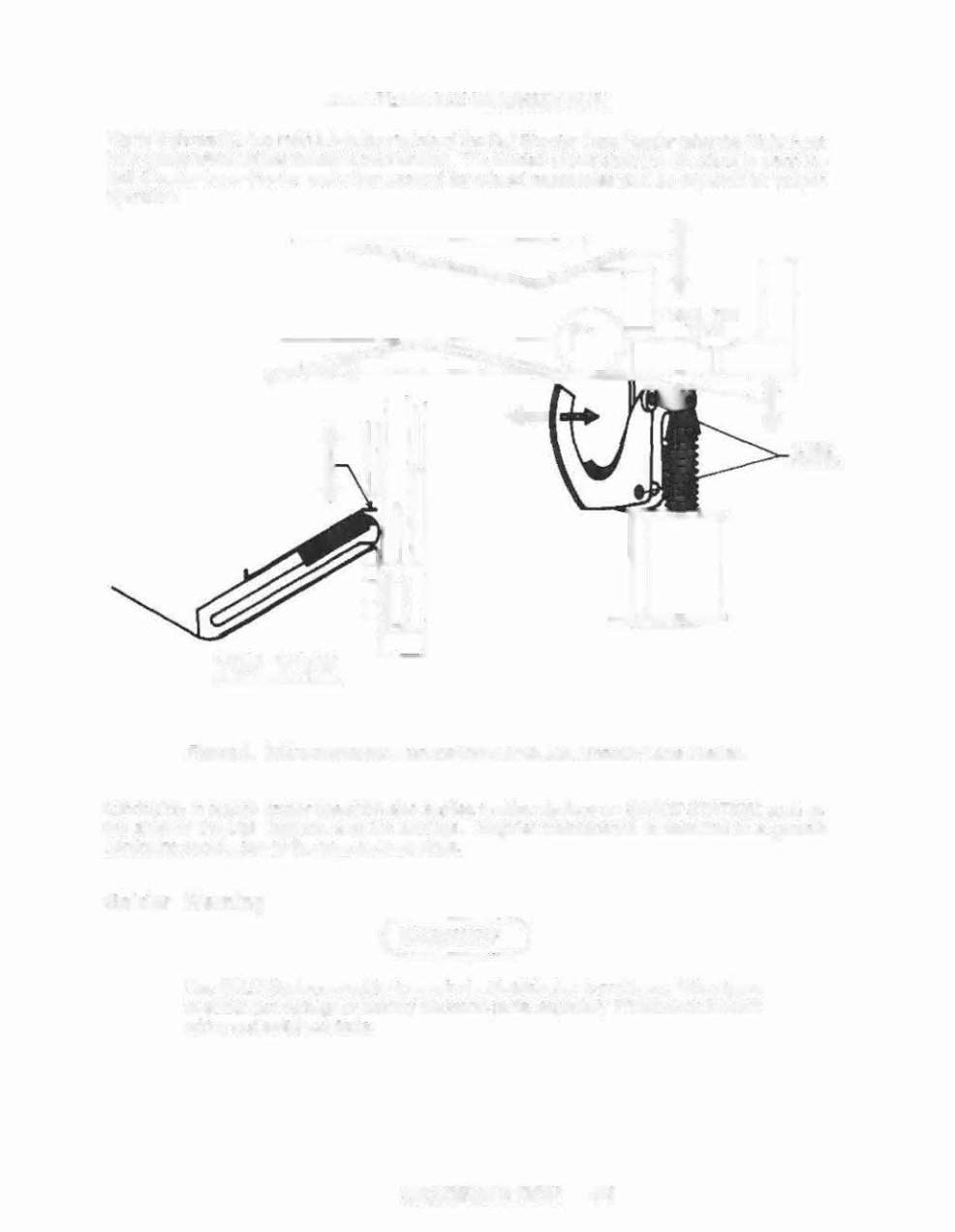

Figure 3. Adjustments and Lubrication Points;
Ball
Shooter Lane Feeder.
Lubrication to ensure proper operation also applies
10
olher devices on
SPACE STAnON,
such
as
Ihe shaft of Ihe Ball Poppers, and the kickbigs.
Regular maintenance is essential
to a game's
continuing contribution to the operatora earnings.
Solder Warning
(WA/8.NffNG )
Use ONLY
Bosin-cote
solder to repair electricaVelectronic problems.
Other types
01solder can damage or destroy el ectrontc parts, especially Printed- Circuit Board
wiring and swilC,h
contacts.
