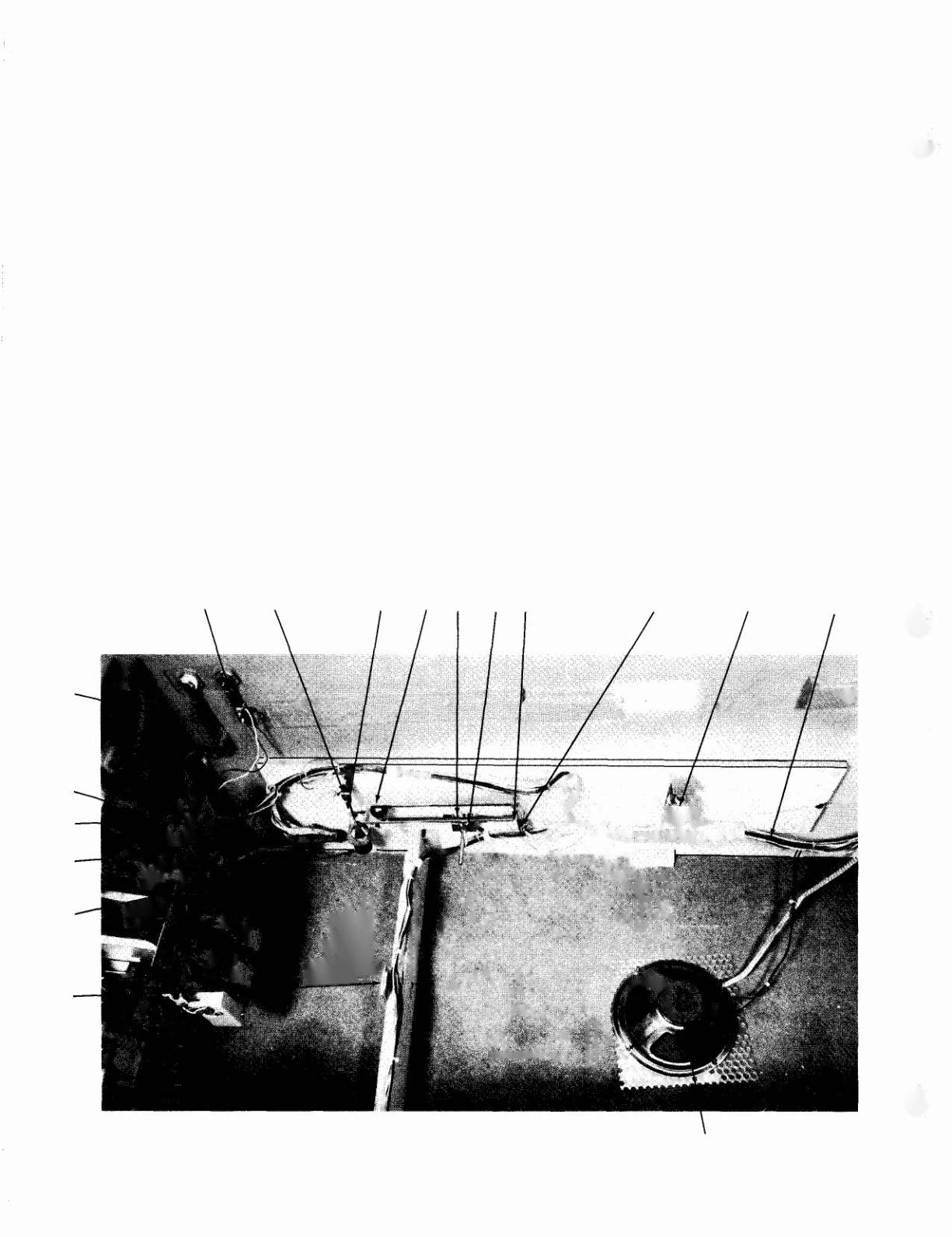

CABINET PARTS
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
*15
*16
17
PART NO.
01-3493-1
20-6502-A
01-3445
5643-09268
01-5589
SW-I0I0A-13
01-3444
B-8536
12-6231
01-3893
5014-09170
01-6858
01-3670-1
B-8537
B-8047
H-8507-504
5555-09382-01
DESCRIPTION
Cashbox Lock Bracket
Plumb Bob
Lower Tilt Bracket
Memory Interlock Switch
Memory Interlock Switch Bracket
Flipper Switch
Upper Tilt Bracket
Switch and Diode Assembly
Plum b Bo b Wire
Roll Tilt Bracket
Pot, 5K, 10%, lW
Pot Mounting Bracket
Switch Plate
Switch and Diode Assembly
Knocker Assembly
Main Cabinet Cable
Speaker, 4 Ohm, 6"
*
See Extended Parts List
